STG-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 30000 - 39999) RIDER FRAME ASSEMBLY Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

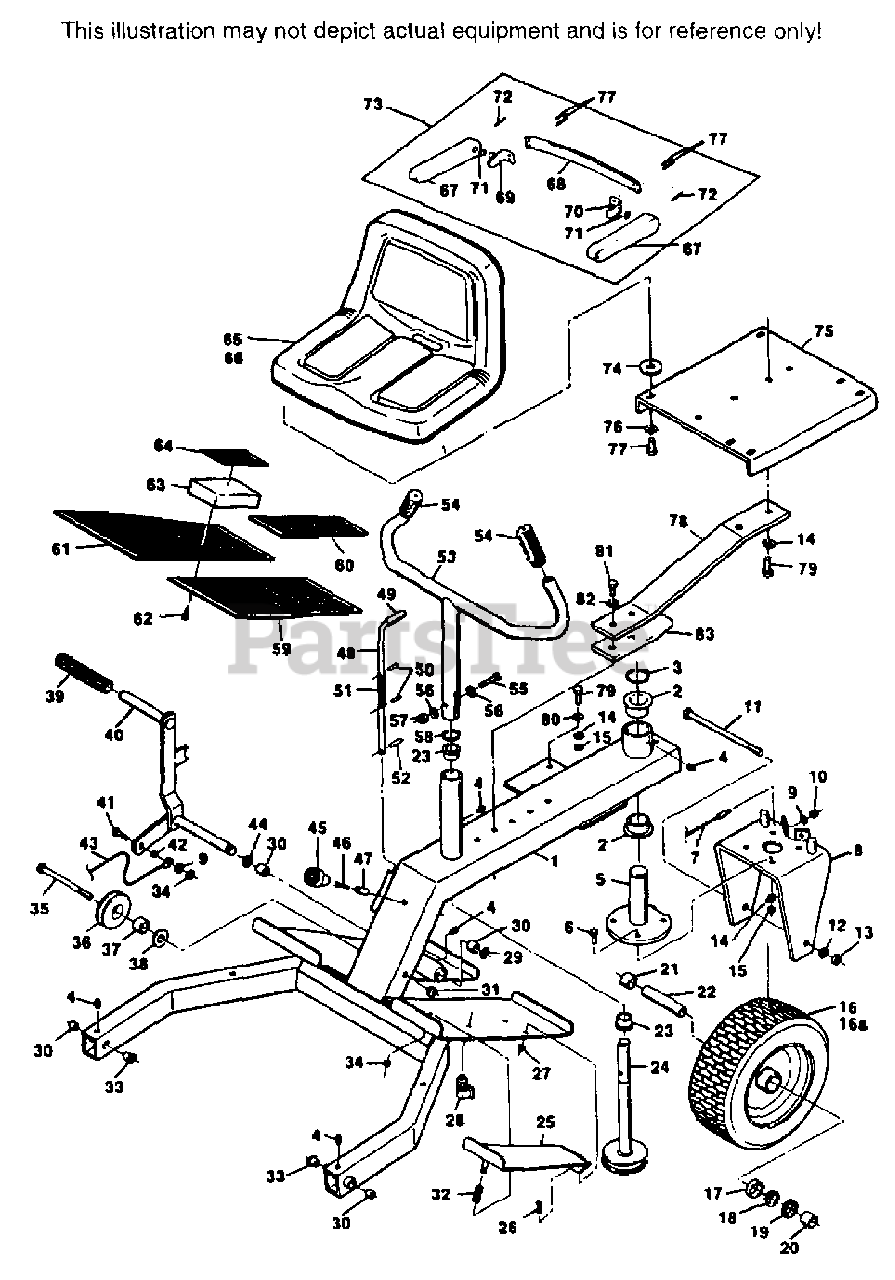

RIDER FRAME ASSEMBLY Parts Diagram

  • Title

1

Scag 46057

STEERING FRAME

$

$

Not available

2

Scag 48100-02

BRONZE BEARING

$3.99

$

Usually ships in 2-12 days

0

3

Scag 04050-02

RETAINING RING, 1-1/8 EXT. BASIC

$0.99

$

In Stock, Qty 10

0

4

Scag 48114-01

GREASE FITTING, 1/4-28 STR.
(Superseded to 48114-04)

$1.49

$

In Stock, Qty 20+

0

5

Scag 45008

REAR WHEEL PIVOT

$144.99

$

Usually ships in 2-12 days

0

6

HEX HEAD BOLT, 3/8-16 X 1-3/8"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

7

Scag 48828

STEERING CABLE

$142.99

$

In Stock, only 1 left!

0

8

Scag 45035

REAR WHEEL YOKE

$184.99

$

Usually ships in 2-12 days

0

9

LOCKWASHER, 3/8 INT. TOOTH

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

10

HEX JAM NUT, 3/8-24 UNF

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

11

Scag 04001-40

HEX HEAD BOLT, 5/8-11 X 9"

$81.99

$

Usually ships in 2-12 days

0

12

LOCKWASHER, SPRING, 5/8"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

13

HEX NUT, 5/8-11

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

LOCKWASHER, SPRING, 3/8"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

15

HEX NUT, 3/8-16

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

16

Scag 48005-01

WHEEL ASSY(INCLUDES 16A-19)
(Superseded to 48005)

$380.99

$

Usually ships in 2-12 days

0

16A

Scag 48005-03

RIM ONLY
(Superseded to 481894)

$312.99

$

In Stock, only 1 left!

0

17

Scag 48005-04

BEARING CUP
(Superseded to 481895)

$19.99

$

Usually ships in 2-12 days

0

18

Scag 48005-05

BEARING CONE
(Superseded to 481896)

$22.99

$

In Stock, only 3 left!

0

19

Scag 48005-06

GREASE SEAL
(Superseded to 481897)

$9.49

$

In Stock, only 3 left!

0

20

Scag 43020-01

SPACER, SHORT

$44.99

$

Usually ships in 2-12 days

0

21

Scag 43020-02

SPACER, LONG

$26.99

$

Usually ships in 2-12 days

0

22

Scag 43021

REAR WHEEL SLEEVE

$50.99

$

Usually ships in 2-12 days

0

23

Scag 48100-01

BRONZE BEARING

$8.99

$

Usually ships in 2-12 days

0

24

Scag 45009

STEERING SHAFT

$210.99

$

Usually ships in 2-12 days

0

25

Scag 45033

SAFETY PEDAL

$

$

Not available

26

FLAT HEAD SCREW, #10-32 X 3/4 SLOTTED

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

27

HEX NUT, #10-32, ELASTIC STOP

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

Scag 48026

FOOT SAFETY SWITCH
(Superseded to 481476)

$58.99

$

In Stock, only 1 left!

0

29

Scag 04050-02

RETAINING RING, 3/4 EXT. "E"

$0.99

$

In Stock, Qty 10

0

30

Scag 48100-06

BRONZE BEARING

$1.49

$

In Stock, Qty 9

0

31

HEX NUT, 1/2-13, ELASTIC STOP

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

32

Scag 48049

SPRING, FOOT SAFETY SWITCH
(Superseded to 481056)

$30.99

$

Usually ships in 2-12 days

0

33

Scag 48100-03

BRONZE BEARING

$2.99

$

Usually ships in 2-12 days

0

34

HEX LOCK NUT, 1/4-20

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

35

Scag 04001-37

HEX HEAD BOLT, 1/2-13 X 5-1/2"

$4.49

$

In Stock, Qty 9

0

36

Scag 46140

WINCH CABLE PULLEY(INCLUDES 37)

$

$

Not available

37

Scag 48100-04

BRONZE BEARING

$0.99

$

In Stock, only 4 left!

0

38

WASHER, 1/2"(.531 X 1.062 X .095)

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

Scag 48096

SLEEVE, FOOT PEDAL

$4.49

$

Usually ships in 2-12 days

0

40

Scag 45115

FOOT PEDAL WELDMENT

$

$

Not available

41

HEX HEAD BOLT, 1/4-20 X 1"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

42

Scag 43049

SLEEVE

$6.49

$

Usually ships in 2-12 days

0

43

Scag 48241

FOOT CABLE ASSEMBLY

$199.99

$

Usually ships in 2-12 days

0

44

WASHER, 49/64 X 1-1/4 X 16 GA.

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

45

Scag 48097

BUMPER STOP COVER

$

$

Not available

46

SCREW, PHILLIPS FLAT HEAD, 1/4-20 X 1-1/2"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

47

Scag 43046

BUMPER STOP

$18.99

$

Usually ships in 2-12 days

0

48

Scag 46141

PARKING BRAKE LEVER(INCLUDES 49)

$

$

Not available

49

Scag 48095

GRIP

$2.99

$

Usually ships in 2-12 days

0

50

ROLLING PIN, 5/32 X 3/4"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

51

Scag 48053

SPRING

$5.99

$

Usually ships in 2-12 days

0

52

DRIVE LOCK PIN, 3/16 X 1-1/4"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

53

Scag 46029

STEERING HANDLE(INCLUDES 54)

$138.99

$

Usually ships in 2-12 days

0

54

Scag 48159

GRIP

$3.49

$

In Stock, Qty 11

0

55

HEX HEAD BOLT, 5/16-18 X 1-3/4"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

56

WASHER, 11/32 X 11/16 X 16 GA.

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

57

HEX ELASTIC STOP NUT, 5/16-18

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

58

Scag 04050-03

RETAINING RING, 7/8 EXT. BASIC

$0.99

$

In Stock, Qty 5

0

59

Scag 48040

PAD - LH

$

$

Not available

60

Scag 48041

PAD, SAFETY PEDAL

$

$

Not available

61

Scag 48039

PAD - RH

$

$

Not available

62

HEX HEAD WOOD SCREW #14 X 1"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

63

Scag 48036

HEEL REST

$19.99

$

Usually ships in 2-12 days

0

64

Scag 48037

PAD, HEEL

$8.49

$

Usually ships in 2-12 days

0

65

Scag 48592

SEAT ASSEMBLY(INCLUDES 66-72, 77)
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

66

Scag 48592-01

SEAT ONLY
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

67

Scag 48014-03

ARM REST

$

$

Not available

68

Scag 48014-07

BACK STRAP

$

$

Not available

69

Scag 48014-04

MOUNTING BRACKET - RH

$

$

Not available

70

Scag 48014-05

MOUNTING BRACKET - LH

$

$

Not available

71

Scag 48014-06

WAVE WASHER

$

$

Not available

72

SET SCREW 3/8-16 X 3/4 FLAT POINT

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

73

Scag 48014-02

ARM REST KIT(INC. 67,68,69,70,71,72,78)

$

$

Not available

74

Scag 04041-11

WASHER, 13/32 X 1-1/2 X 7 GA.

$1.99

$

In Stock, Qty 20+

0

75

Scag 45210

SEAT PLATE

$125.99

$

In Stock, only 1 left!

0

76

LOCKWASHER, 5/16 SPRING

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

77

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

78

Scag 42026

SEAT SUPPORT SPRING

$73.99

$

Usually ships in 2-12 days

0

79

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

80

WASHER, 13/32 X 13/16 X 16 GA.

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

81

HEX HEAD BOLT, 7/16-14 X 1-1/2"

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

82

LOCKWASHER, 7/16" SPRING

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

83

Scag 42366

REINFORCEMENT, SEAT SPRING

$50.99

$

Usually ships in 2-12 days

0
