STH-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 1001 - 9999) ELECTRICAL SYSTEM S/N 1001-1350 Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

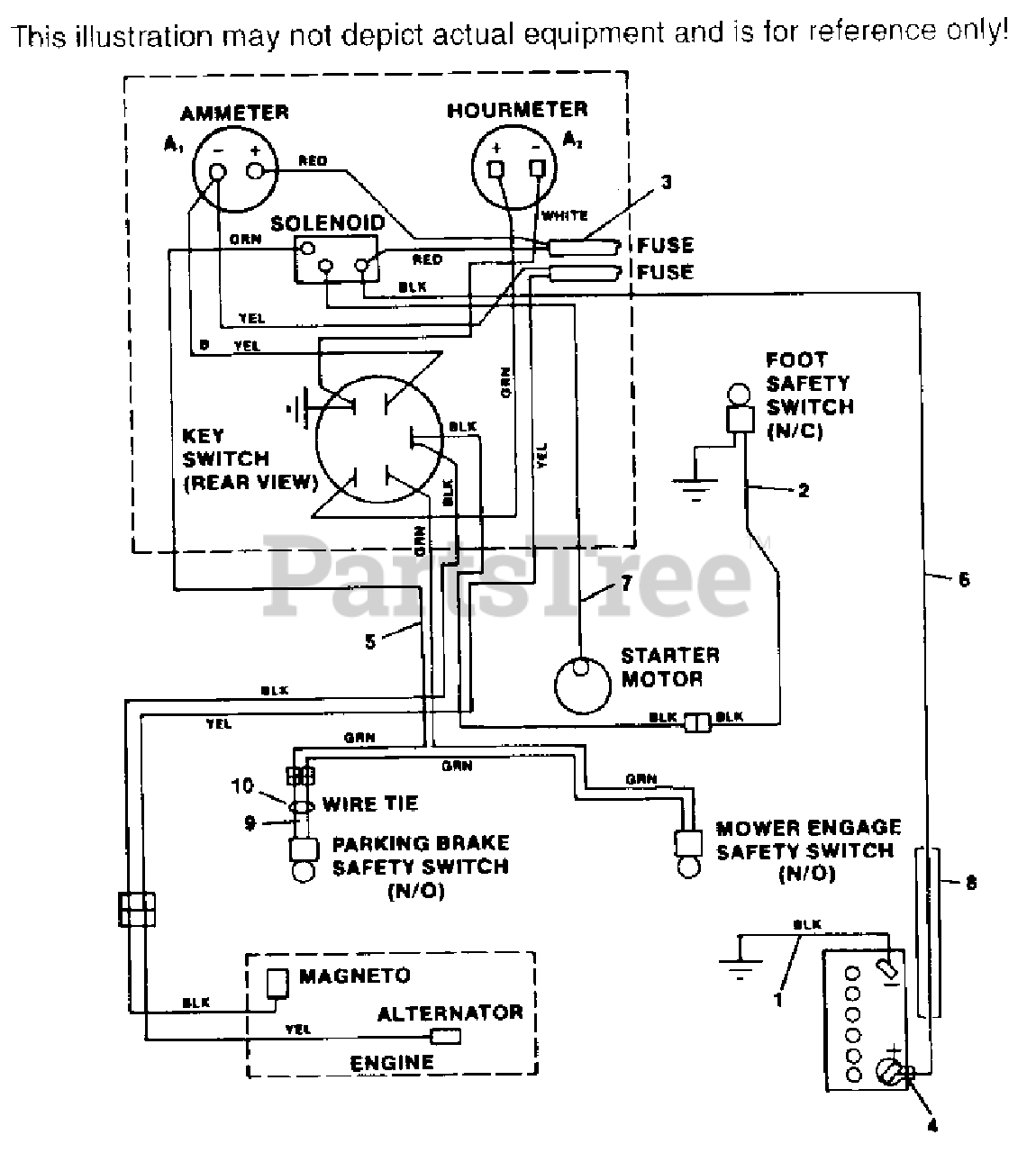

ELECTRICAL SYSTEM S/N 1001-1350 Parts Diagram

  • Title
1

Scag 48029-05

BATTERY CABLE GROUND

$8.99

$

Usually ships in 2-12 days

0

2

Scag 48367

WIRE HARNESS, FOOT SAFETY SWITCH

$26.99

$

In Stock, only 1 left!

0

3

Scag 48368

WIRE HARNESS, SOLENOID TO AMMETER

$23.99

$

Usually ships in 2-12 days

0

4

Scag 48126

RUBBER BOOT

$8.99

$

Usually ships in 2-12 days

0

5

Scag 48348

WIRE HARNESS

$

$

Not available

6

Scag 48029-02

BATTERY CABLE, LONG

$16.99

$

Usually ships in 2-12 days

0

7

Scag 48029-01

BATTERY CABLE, SHORT

$9.99

$

Usually ships in 2-12 days

0

8

Scag 48033

CONDUIT, BLACK NYLON 10"

$

$

Not available

9

Scag 48389

WIRE EXTENSION

$

$

Not available

10

Scag 48028-01

CABLE TIE

$0.99

$

Usually ships in 2-12 days

0
