STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 40000 - 49999) CONTROL LINKAGE Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

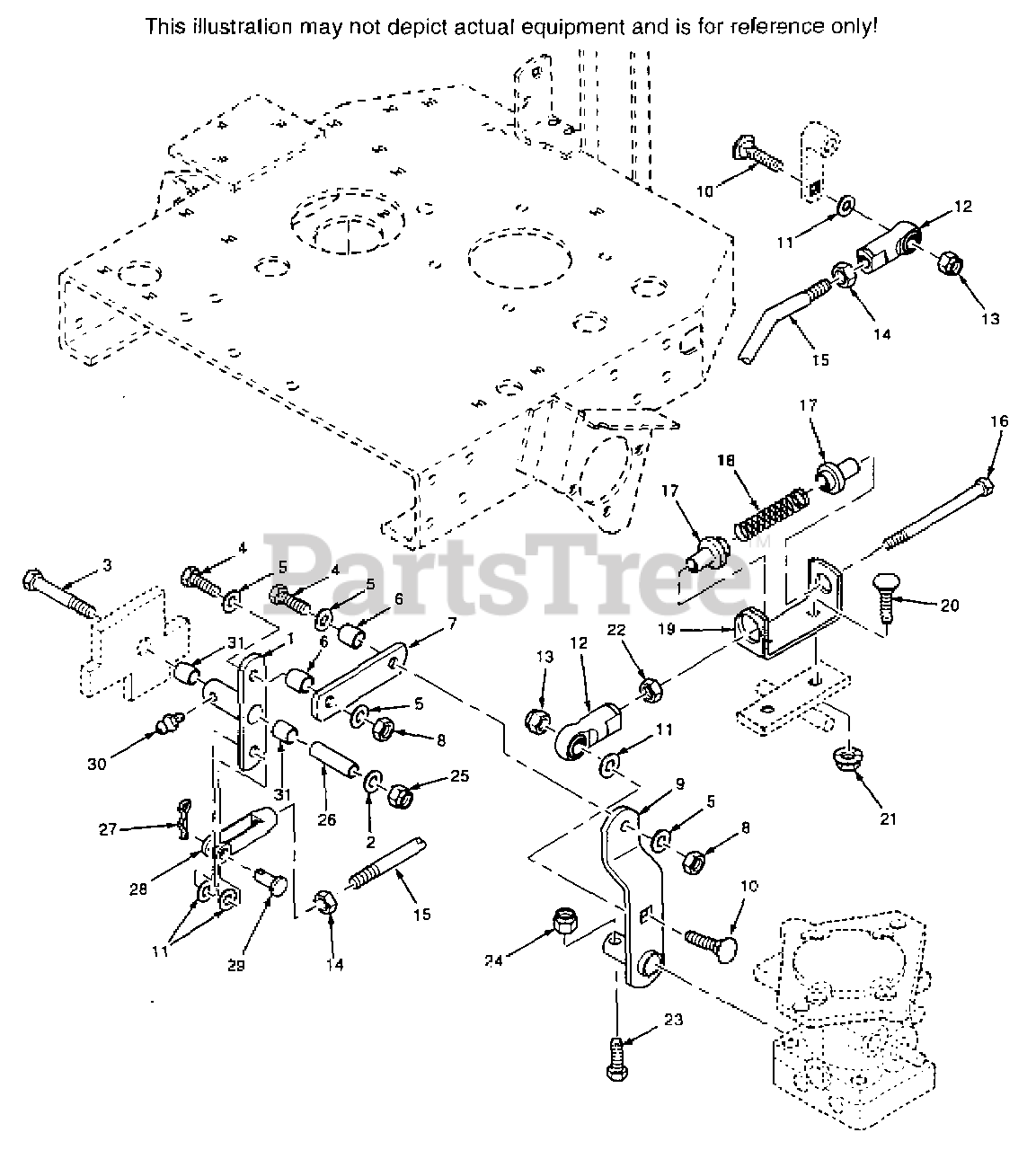

CONTROL LINKAGE Parts Diagram

  • Title

1

Scag 45261

CONTROL LINKAGE, BELLCRANK
(Superseded to 46328)

$61.99

$

Usually ships in 2-12 days

0

2

FLATWASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

3

BOLT, HEX HEAD 5/16-18 X 2-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

4

BOLT, HEX HEAD 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

5

FLATWASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

6

Scag 43212

SLEEVE, PUMP CONTROL LINK

$4.49

$

Usually ships in 2-12 days

0

7

Scag 42658

LINK, SPEED CONTROL

$42.99

$

In Stock, only 1 left!

0

8

HEX LOCKNUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

9

Scag 45485

CONTROL ARM, PUMP

$49.99

$

Usually ships in 2-12 days

0

10

CARRIAGE BOLT, RH SH SQNK 3/8-16 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

11

FLATWASHER, 3/8 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

12

Scag 48464

ROD END, RH FEMALE THD 3/8-24

$23.99

$

In Stock, only 1 left!

0

13

HEX LOCKNUT, ELASTIC STOP 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

HEX NUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

15

Scag 44044

CONTROL ROD

$12.99

$

In Stock, only 1 left!

0

16

Scag 48512

BOLT, HEX HEAD, 3/8-24 X 6-3/4

$42.99

$

Usually ships in 2-12 days

0

17

Scag 43257

BUSHING, SPRING KEEPER

$16.99

$

Usually ships in 2-12 days

0

18

Scag 48463

SPRING, NEUTRAL RETURN

$5.49

$

Usually ships in 2-12 days

0

19

Scag 421148

RETAINER, NEUTRAL SPRING

$21.99

$

Usually ships in 2-12 days

0

20

CARRIAGE BOLT 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

21

Scag 04019-03

HEX NUT, SERR. FL. 5/16-18

$0.99

$

In Stock, Qty 16

0

22

HEX NUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

23

BOLT, HEX HEAD 1/4-20 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

24

HEX LOCKNUT, ELASTIC STOP 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

25

HEX LOCKNUT, ELASTIC STOP 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

26

Scag 43110

SLEEVE, CONTROL ARM

$8.49

$

Usually ships in 2-12 days

0

27

Scag 04062-02

PIN, COTTER

$0.99

$

In Stock, Qty 20+

0

28

Scag 48343-02

CLEVIS, PUMP CONTROL
(Superseded to 48343-04)

$17.99

$

In Stock, only 2 left!

0

29

Scag 44024

PIN, CLEVIS

$26.99

$

Usually ships in 2-12 days

0

30

Scag 48114-04

GREASE FITTING, 1/4-28 SELF TAP

$1.49

$

In Stock, Qty 20+

0

31

Scag 48100-04

BUSHING, BRONZE

$0.99

$

In Stock, only 4 left!

0
