STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 40000 - 49999) UPPER HYDRAULICS Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

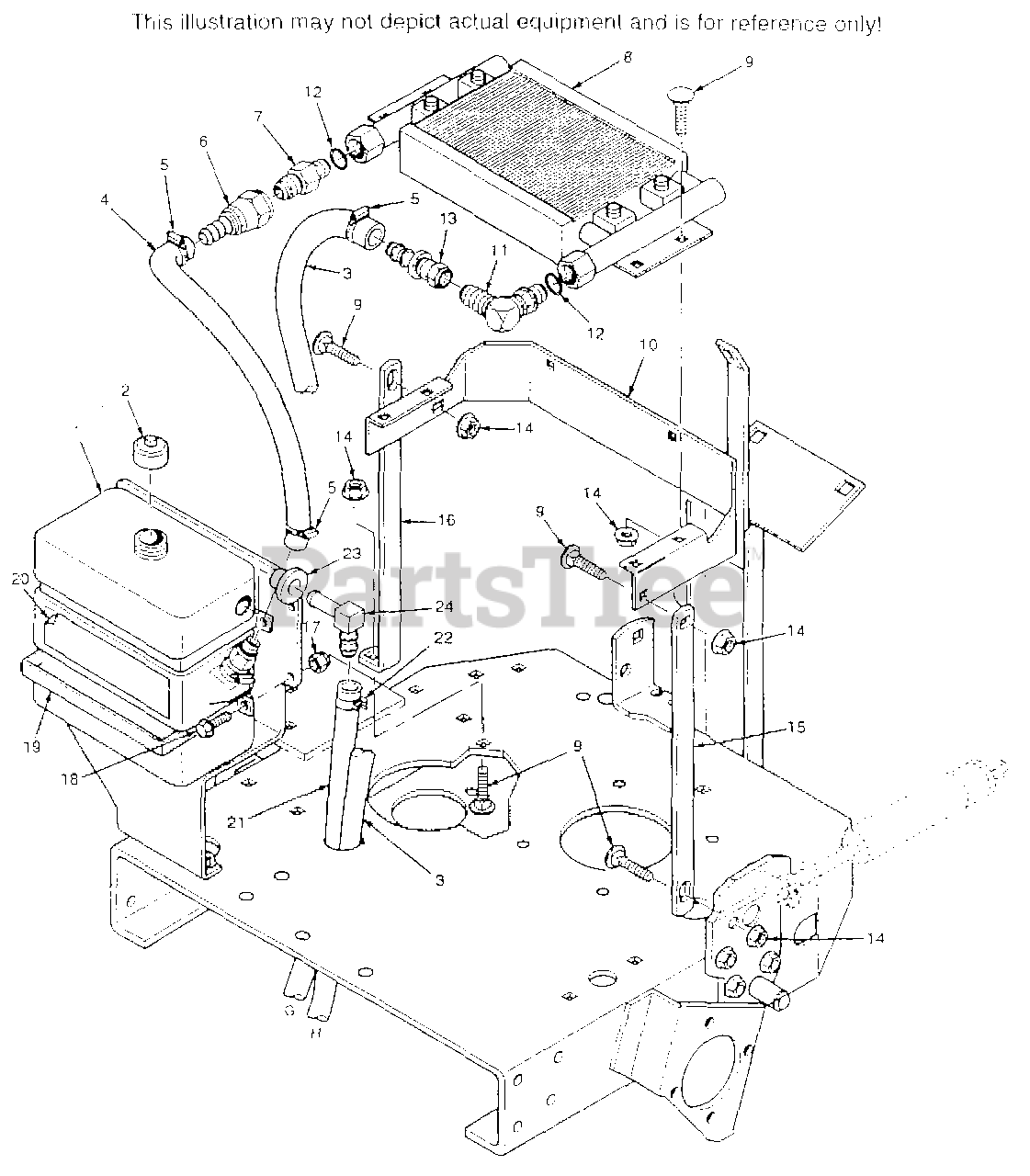

UPPER HYDRAULICS Parts Diagram

  • Title

1

Scag 46621

TANK, HYDRAULIC W/DECAL
(Superseded to 48968)

$9.49

$

Usually ships in 2-12 days

0

2

Scag 48894

CAP, HYDRAULIC TANK

$21.99

$

Usually ships in 2-12 days

0

3

Scag 48634

HOSE, PUMP TO OIL COOLER

$48.99

$

Usually ships in 2-12 days

0

4

Scag 48942

HOSE, OIL COOLER TO TANK

$27.99

$

Usually ships in 2-12 days

0

5

Scag 48136-04

CLAMP, HOSE

$8.49

$

Usually ships in 2-12 days

0

6

Scag 48936-01

COUPLING, FLARE SWIVEL

$33.99

$

Usually ships in 2-12 days

0

7

Scag 48572-05

TUBE, UNION

$

$

Not available

8

Scag 48645

OIL COOLER ASSEMBLY

$

$

Not available

9

CARRIAGE BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

10

Scag 421279

BRACKET, OIL COOLER

$85.99

$

Usually ships in 2-12 days

0

11

Scag 48350-05

ELBOW, 90 DEGREES

$32.99

$

Usually ships in 2-12 days

0

12

Scag 48603-02

O-RING

$3.49

$

In Stock, Qty 5

0

13

Scag 48353-04

COUPLING FLARE SWIVEL

$24.99

$

Usually ships in 2-12 days

0

14

Scag 04019-03

SERR. FL. HEX HEAD NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

15

Scag 421280

BRACE, L.H. COOLER SUPPORT

$29.99

$

Usually ships in 2-12 days

0

16

Scag 421281

BRACE, R.H. COOLER SUPPORT

$16.99

$

Usually ships in 2-12 days

0

17

ELASTIC STOP NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

18

Scag 04017-05

SERR. FL. HEX HEAD CPSCR, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

19

Scag 421288

STRAP, OIL TANK

$25.99

$

Usually ships in 2-12 days

0

20

Scag 48968

DECAL, SCAG

$9.49

$

Usually ships in 2-12 days

0

21

Scag 48482

HOSE

$0.99

$

In Stock, Qty 20+

0

22

Scag 48059-01

CLAMP

$0.99

$

In Stock, Qty 20+

0

23

Scag 48309

BUSHING
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

24

Scag 48939

90 DEGREE ELBOW
(Superseded to 483748)

$9.49

$

In Stock, only 2 left!

0
