STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 60000 - 69999) BRAKE LINKAGE Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

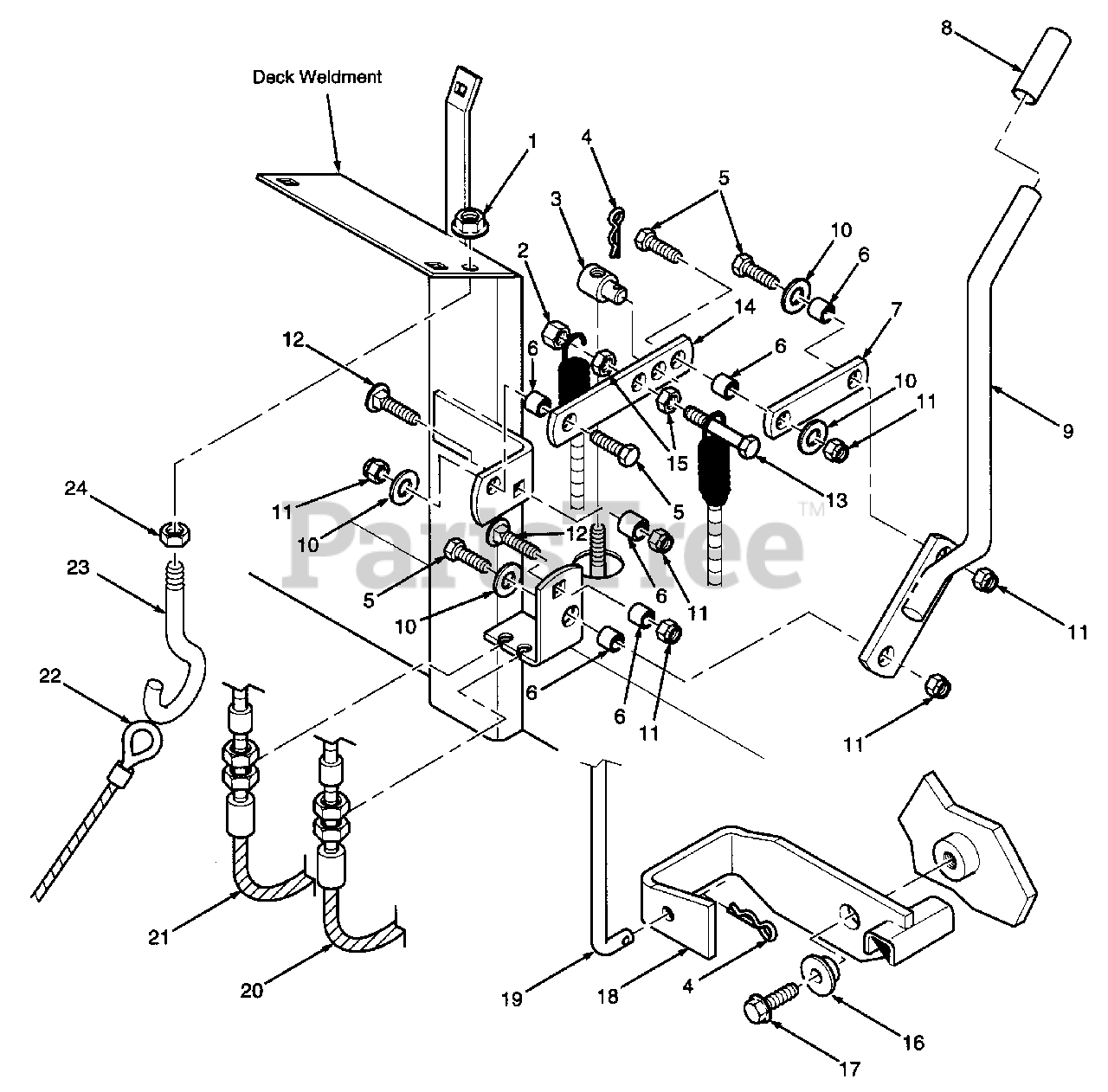

BRAKE LINKAGE Parts Diagram

  • Title

1

Scag 04019-04

SERR. FL. HH NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 04021-05

HEX LOCKNUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 43032

SWIVEL

$6.49

$

Usually ships in 2-12 days

0

4

Scag 04062-01

HAIRPIN COTTER(.094 X 1.62)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-32

HEX HEAD BOLT, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 15

0

6

Scag 43212

SLEEVE, HYDRO LINKAGE

$4.49

$

Usually ships in 2-12 days

0

7

Scag 421338

LINK, CAM

$94.99

$

Usually ships in 2-12 days

0

8

Scag 48342

GRIP, PARKING BRAKE

$2.49

$

Usually ships in 2-12 days

0

9

Scag 45504

HANDLE, PARKING BRAKE

$50.99

$

Usually ships in 2-12 days

0

10

Scag 04041-07

FLAT WASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04021-09

HEX NUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-11

CARRIAGE BOLT, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 7

0

13

Scag 04001-21

HEX HEAD BOLT, 3/8-16 X 1-3/4

$0.99

$

In Stock, Qty 20+

0

14

Scag 421339

LEVER, BRAKE

$17.99

$

Usually ships in 2-12 days

0

15

Scag 04020-12

HEX JAM NUT, 3/8-16

$0.99

$

In Stock, only 3 left!

0

16

Scag 43260

WASHER, NEUTRAL LOCK

$9.99

$

Usually ships in 2-12 days

0

17

Scag 04017-27

SERR. FL. HH CPSCR, 3/8-16 X 1

$1.49

$

In Stock, Qty 20+

0

18

Scag 45647

BRACKET, NEUTRAL LOCK

$186.99

$

Usually ships in 2-12 days

0

19

Scag 44085

ROD, NEUTRAL LOCK

$5.49

$

Usually ships in 2-12 days

0

20

Scag 48881

CABLE ASSEMBLY, PARKING BRAKE R.H.

$86.99

$

Usually ships in 2-12 days

0

21

Scag 48880

CABLE ASSEMBLY, PARKING BRAKE L.H.

$89.99

$

Usually ships in 2-12 days

0

22

Scag 48045

CABLE WINCH

$49.99

$

Usually ships in 2-12 days

0

23

Scag 04070-03

EYE BOLT, 3/8-16 R.H.

$39.99

$

Usually ships in 2-12 days

0

24

Scag 04020-04

HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0
