STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 60000 - 69999) INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

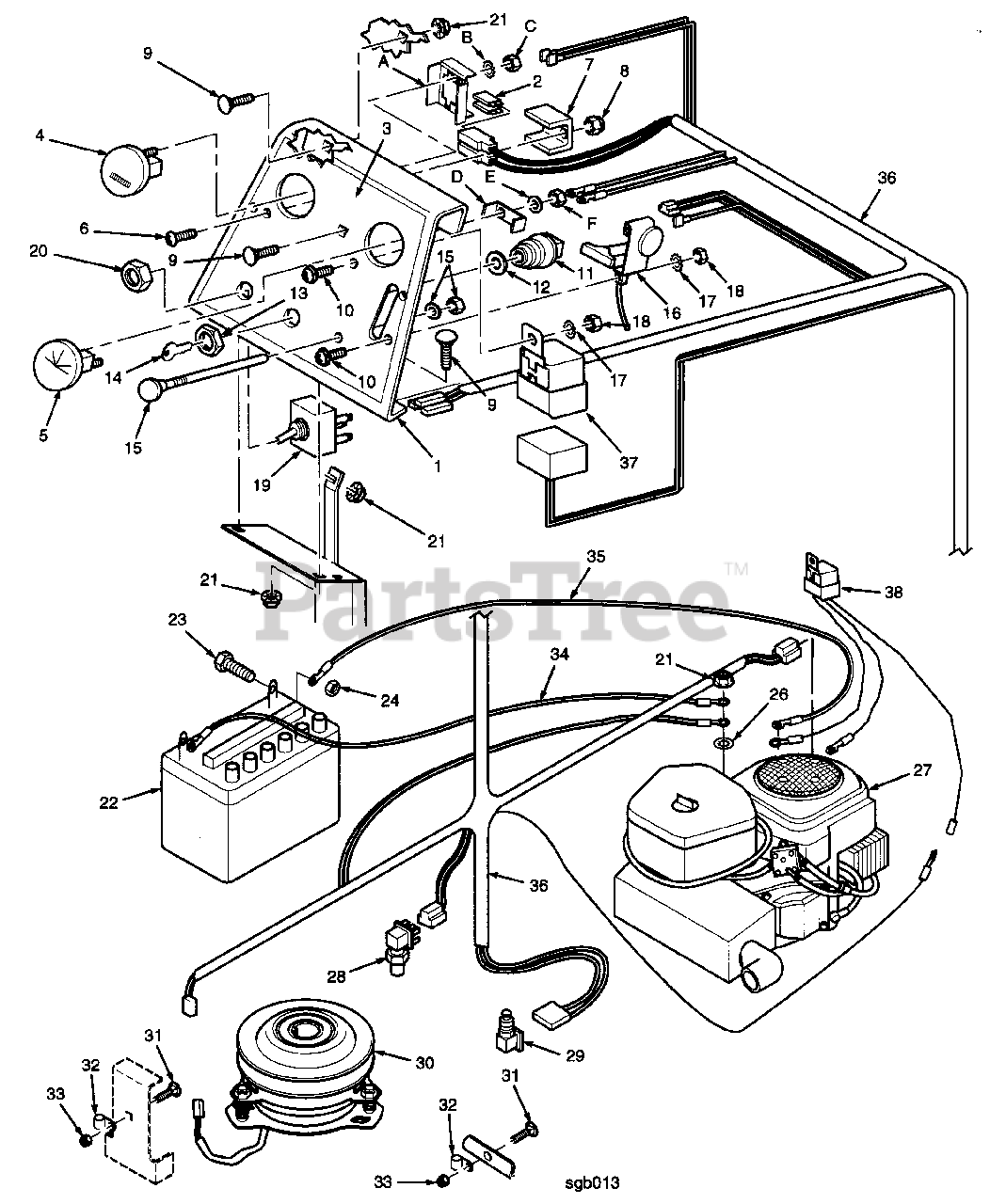

INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

  • Title

1

Scag 46622

INSTRUMENT PANEL(INCLUDES DECAL)

$

$

Not available

2

Scag 48298

BLADE FUSE, 20 AMP.

$3.99

$

Usually ships in 2-12 days

0

3

Scag 481136

DECAL, INSTRUMENT PANEL

$39.99

$

Usually ships in 2-12 days

0

4

Scag 48023

HOUR METER(INCLUDES BRACKET&HARDWARE A,B,C,)

$195.99

$

In Stock, only 1 left!

0

5

Scag 48022

AMMETER(INCLUDES BRACKET AND HARDWARE D,E,F)
(Superseded to 481755)

$28.99

$

Usually ships in 2-12 days

0

6

Scag 04010-11

PHILLIPS RD. HEAD SCREW, #10-32 X 1-1/2

$0.99

$

Usually ships in 2-12 days

0

7

Scag 42413

BRACKET, FUSE HOLDER

$41.99

$

Usually ships in 2-12 days

0

8

Scag 04021-01

ELASTIC STOP NUT, #10-32

$0.99

$

In Stock, Qty 10

0

9

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

10

Scag 04010-01

PHILLIPS WASHER HEAD SCREW, #10-32 X .50

$0.99

$

In Stock, Qty 20+

0

11

Scag 48798

KEYSWITCH

$27.99

$

In Stock, Qty 20+

0

12

LOCKWASHER, 5/8 INT. TOOTH

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

13

NUT, SPECIAL 5/8-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

Scag 48017-02

IGNITION KEY AND RING ASSY.

$4.49

$

In Stock, Qty 7

0

15

Scag 48158

CHOKE CONTROL(INCLUDES HARDWARE)
(Superseded to 482315)

$31.99

$

Usually ships in 2-12 days

0

16

Scag 48879

THROTTLE CONTROL

$62.99

$

In Stock, only 1 left!

0

17

Scag 04031-01

LOCKWASHER, #10 EXT. TOOTH

$0.99

$

In Stock, Qty 20+

0

18

Scag 04020-01

HEX NUT, #10-32

$8.99

$

In Stock, Qty 20+

0

19

Scag 48787

SWITCH, PTO

$38.99

$

In Stock, only 1 left!

0

20

NUT, SPECIAL 1/2-27

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

21

Scag 04019-03

SERR. FL. HH NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

22

Scag 48015

BATTERY

$

$

Not available

23

Scag 04001-44

BOLT, HEX HEAD 1/4-20 X 1/2

$0.99

$

In Stock, Qty 10

0

24

Scag 04020-02

HEX NUT 1/4-20

$0.99

$

In Stock, Qty 9

0

?25

SEE 21

$

$

Not available

26

Scag 04031-09

LOCKWASHER 5/16 INT. TOOTH

$0.99

$

In Stock, Qty 8

0

27

Scag 48836

ENGINE, 20 HP KOHLER CV

$

$

Not available

27

Scag 48837

ENGINE, 22 HP KOHLER CV

$

$

Not available

28

Scag 48522

SWITCH, PARKING BRAKE
(Superseded to 481474)

$106.99

$

In Stock, only 3 left!

0

29

Scag 48026

SWITCH, FOOT SAFETY
(Superseded to 481476)

$58.99

$

In Stock, only 1 left!

0

30

Scag 48786

CLUTCH, ELECTRIC
(Superseded to 461074)

$519.99

$

Usually ships in 2-12 days

0

31

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

32

Scag 48030-09

WIRELOOM

$1.49

$

In Stock, only 4 left!

0

33

Scag 04021-10

LOCKNUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 48029-15

BATTERY CABLE, 36" BLACK

$17.99

$

In Stock, only 1 left!

0

35

Scag 48029-13

BATTERY CABLE, 25" RED

$14.99

$

In Stock, only 2 left!

0

36

Scag 481268

WIRE HARNESS, STHM

$356.99

$

Usually ships in 2-12 days

0

37

Scag 48788

RELAY

$29.99

$

In Stock, only 1 left!

0

38

Scag 481275

WIRE HARNESS WITH RELAY

$34.99

$

In Stock, only 1 left!

0
