STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 60000 - 69999) WINCH LIFT SYSTEM Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

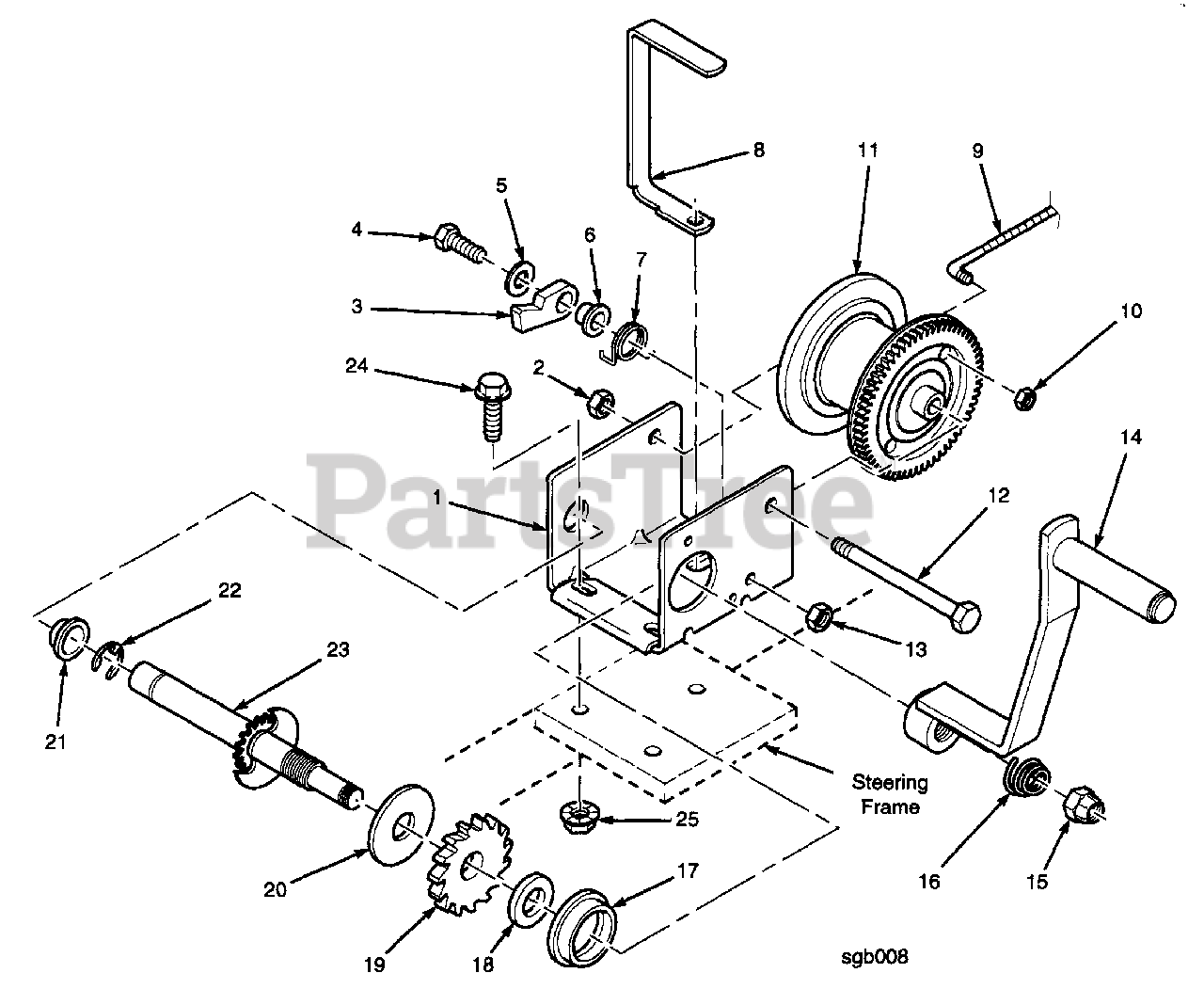

WINCH LIFT SYSTEM Parts Diagram

  • Title

1

Scag 48043

WINCH ASSEMBLY(INCL. 1-7, 11-23)

$330.99

$

Usually ships in 2-12 days

0

2

Scag 205155

LOCKNUT, 7/16-14

$2.99

$

Usually ships in 2-12 days

0

3

Scag 404409

RATCHET PAWL

$15.99

$

Usually ships in 2-12 days

0

4

Scag 205167

RATCHET BOLT

$6.49

$

Usually ships in 2-12 days

0

5

Scag 205024

FLATWASHER

$

$

Not available

6

Scag 404166

RATCHET SPACER

$12.99

$

Usually ships in 2-12 days

0

7

Scag 204363

RATCHET SPRING

$11.99

$

Usually ships in 2-12 days

0

8

Scag 42127

CABLE GUIDE

$78.99

$

Usually ships in 2-12 days

0

9

Scag 48045

WINCH CABLE ASSEMBLY

$49.99

$

Usually ships in 2-12 days

0

10

Scag 04021-03

HEX LOCKNUT, 1/4-28

$0.99

$

In Stock, only 1 left!

0

11

Scag 304227

WINCH REEL

$186.99

$

Usually ships in 2-12 days

0

12

Scag 205008

REEL SHAFT

$

$

Not available

13

Scag 205011

HEX LOCKNUT, 3/8-16

$

$

Not available

14

Scag 48044

WINCH HANDLE

$83.99

$

Usually ships in 2-12 days

0

15

Scag 205015

HANDLE NUT

$5.49

$

Usually ships in 2-12 days

0

16

Scag 204364

HANDLE SPRING

$2.99

$

Usually ships in 2-12 days

0

17

Scag 204359

SHAFT BUSHING

$19.99

$

Usually ships in 2-12 days

0

18

Scag 404163

PRESSURE WASHER

$11.99

$

Usually ships in 2-12 days

0

19

Scag 404164

RATCHET WHEEL

$19.99

$

Usually ships in 2-12 days

0

20

Scag 204362

PRESSURE PLATE

$16.99

$

Usually ships in 2-12 days

0

21

Scag 204009

SHAFT BUSHING

$5.49

$

Usually ships in 2-12 days

0

22

Scag 205116

E-RING

$2.49

$

Usually ships in 2-12 days

0

23

Scag 304228

DRIVE SHAFT

$77.99

$

Usually ships in 2-12 days

0

24

Scag 04017-27

SERR. FLG HH CPSCR, 3/8-16 X 1

$1.49

$

In Stock, Qty 20+

0

25

Scag 04019-04

SERR. FLG HH NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0
