STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 60000 - 69999) TRACTION DRIVE Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

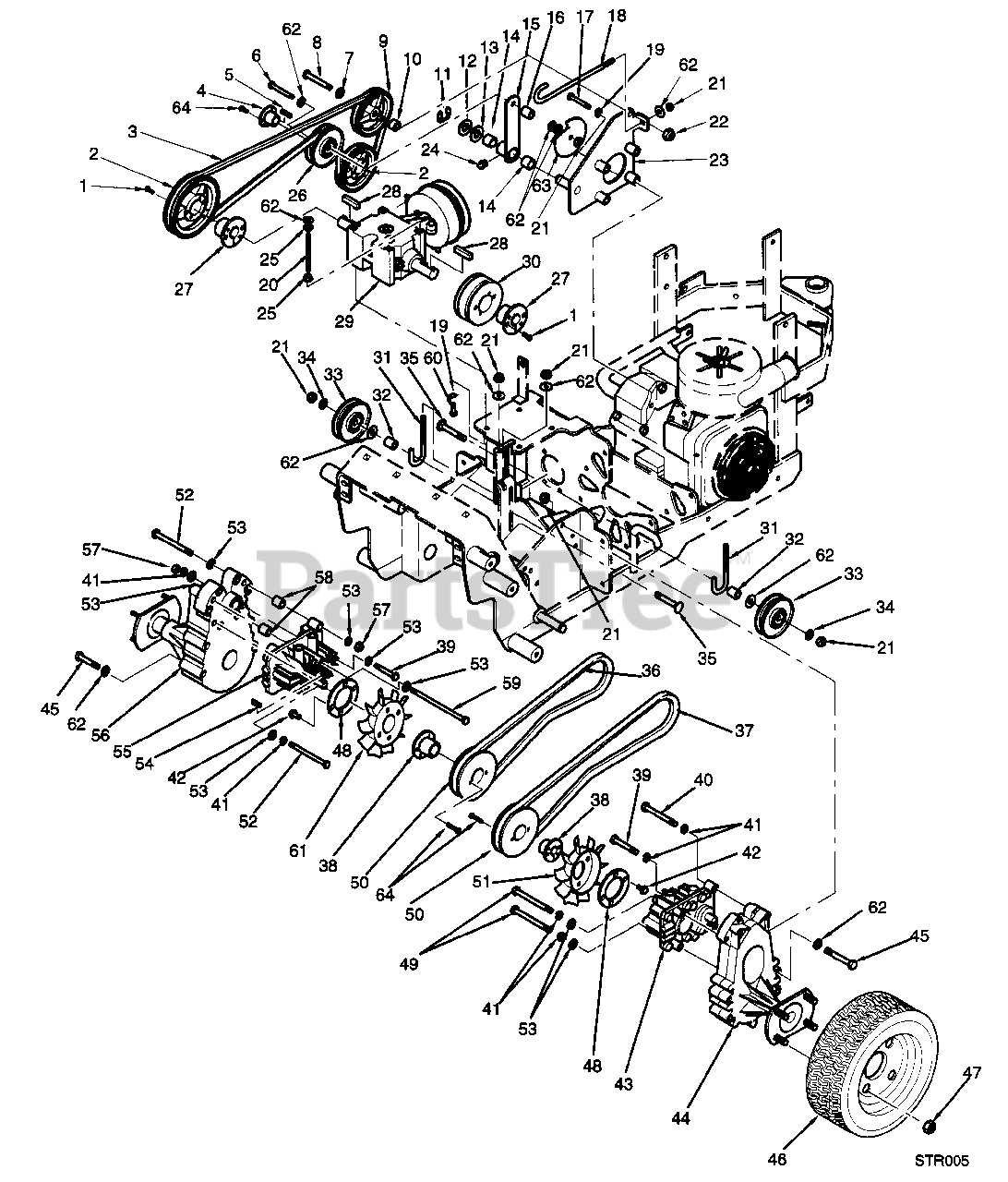

TRACTION DRIVE Parts Diagram

  • Title

1

Scag 04001-109

BOLT, HEX HEAD, 1/4-20 X 1-3/8

$2.49

$

In Stock, Qty 6

0

2

Scag 481434

PULLEY, 5.55 OD

$97.99

$

Usually ships in 2-12 days

0

3

Scag 481235

BELT, DRIVE
(Superseded to 481497)

$54.99

$

Usually ships in 2-12 days

0

4

Scag 48926

HUB, TAPERED

$31.99

$

In Stock, Qty 14

0

5

Scag 04063-06

KEY, 1/4 X 1/4 X 1-1/2

$1.49

$

In Stock, Qty 6

0

6

Scag 04001-62

BOLT, HEX HEAD, 3/8-16 X 3-1/4

$1.49

$

In Stock, Qty 20+

0

7

Scag 04040-07

FLATWASHER, 1/2(.531 X .062 X .095)

$0.99

$

In Stock, Qty 13

0

8

Scag 04001-90

BOLT, HEX HEAD, 1/2-13 X 3-1/4

$2.99

$

In Stock, only 2 left!

0

9

Scag 48062

PULLEY, IDLER - 5.75 DIA.

$87.99

$

Usually ships in 2-12 days

0

10

Scag 43391

SPACER

$8.99

$

In Stock, only 1 left!

0

11

Scag 04050-02

RETAINING RING, .75 "E"

$0.99

$

In Stock, Qty 10

0

12

Scag 04041-08

FLATWASHER, 3/8(.766 X 1.25 X .06)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04041-08S

FLATWASHER, 3/8(7.66 X 1.25 X .035)

$0.99

$

In Stock, Qty 20+

0

14

Scag 48100-05

BUSHING, OILITE, .753 ID

$0.99

$

In Stock, Qty 16

0

15

Scag 46081

ARM, IDLER

$47.99

$

Usually ships in 2-12 days

0

16

Scag 43277

SPACER, J-PULL ROD

$6.49

$

Usually ships in 2-12 days

0

17

Scag 04001-22

BOLT, HEX HEAD, 3/8-16 X 2-3/4

$1.49

$

In Stock, Qty 10

0

18

Scag 44114

ROD, J-PULL

$5.99

$

Usually ships in 2-12 days

0

19

Scag 04030-04

LOCKWASHER, 3/8

$0.99

$

In Stock, Qty 20+

0

20

Scag 04004-31

STUD, 3/8-16 X 4.00

$2.49

$

Usually ships in 2-12 days

0

21

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

23

Scag 45741

PIVOT, ENGINE IDLER

$

$

Not available

24

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

25

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 48198

PULLEY, IDLER
(Superseded to 483211)

$43.99

$

In Stock, only 2 left!

0

27

Scag 48141

HUB, TAPERED, 1.00 BORE

$30.99

$

In Stock, Qty 5

0

28

Scag 04063-01

KEY, 1/4 X 1/4 X 1-1/4

$1.49

$

In Stock, Qty 11

0

29

Scag 481227

GEARBOX, T-DRIVE

$1756.99

$

Usually ships in 2-12 days

0

30

Scag 481229

PULLEY, 4.25 OD DOUBLE GROOVE

$135.99

$

Usually ships in 2-12 days

0

31

Scag 44075

ROD, J-PULL

$5.99

$

Usually ships in 2-12 days

0

32

Scag 43277

SPACER, J-PULL

$6.49

$

Usually ships in 2-12 days

0

33

Scag 481048

PULLEY
(Superseded to 483208)

$34.99

$

In Stock, Qty 9

0

34

Scag 04041-12

FLATWASHER, 3/8(.375 X 1.50 X .06)

$0.99

$

In Stock, Qty 11

0

35

Scag 04003-21

CARRIAGE BOLT, 3/8-16 X 2-1/2

$2.49

$

Usually ships in 2-12 days

0

36

Scag 481237

BELT, R.H. TRANSMISSION DRIVE
(Superseded to 481499)

$23.99

$

Usually ships in 2-12 days

0

37

Scag 481236

BELT, L.H. TRANSMISSION DRIVE
(Superseded to 481498)

$31.99

$

Usually ships in 2-12 days

0

38

Scag 48791

HUB, TAPERED, 15MM

$53.99

$

Usually ships in 2-12 days

0

39

Scag 04001-12

BOLT, HEX HEAD, 5/16-18 X 1-3/4

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-53

BOLT, HEX HEAD, 5/16-18 X 2-1/2

$0.99

$

In Stock, Qty 13

0

41

Scag 04030-03

LOCKWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

42

Scag 04017-04

SERR. FL. HEX HEAD CPSCR, 1/4-20 X 1/2

$0.99

$

In Stock, Qty 20+

0

43

Scag 481225

PUMP, L.H.

$1157.99

$

Usually ships in 2-12 days

0

44

Scag 481223

AXLE, L.H.

$

$

Not available

45

Scag 04001-51

BOLT, HEX HEAD, 3/8-16 X 3-3/4

$1.49

$

In Stock, Qty 20+

0

46

Scag 48827

WHEEL ASSEMBLY, DRIVE
(Superseded to 481503)

$365.99

$

Usually ships in 2-12 days

0

47

Scag 04028-01

NUT, WHEEL

$1.49

$

In Stock, Qty 14

0

48

Scag 421209

BACK-UP WASHER, FAN

$22.99

$

Usually ships in 2-12 days

0

49

Scag 04001-126

BOLT, HEX HEAD, 5/16-18 X 5-1/2

$2.49

$

In Stock, only 4 left!

0

50

Scag 481231

PULLEY, 4.25 OD

$70.99

$

Usually ships in 2-12 days

0

51

Scag 48789

FAN, COOLING LH
(Superseded to 482133)

$34.99

$

Usually ships in 2-12 days

0

52

Scag 04001-96

BOLT, HEX HEAD, 5/16-18 X 4-1/2

$2.49

$

Usually ships in 2-12 days

0

53

Scag 04040-04

FLATWASHER, 5/16(.344 X .688 X .065)

$0.99

$

In Stock, Qty 20+

0

54

Scag 04063-14

KEY, 5 MM X 5 MM X 25 MM

$0.99

$

In Stock, Qty 20+

0

55

Scag 481226

PUMP, R.H.

$1157.99

$

Usually ships in 2-12 days

0

56

Scag 481224

AXLE, R.H.

$

$

Not available

57

Scag 04020-03

HEX NUT, 5/16-18

$0.99

$

In Stock, only 3 left!

0

58

Scag 43063

SPACER

$9.99

$

Usually ships in 2-12 days

0

59

Scag 04001-94

BOLT, HEX HEAD, 5/16-18 X 7-1/2

$3.49

$

In Stock, only 2 left!

0

60

Scag 04001-19

BOLT, HEX HEAD, 3/8-16 X 1.0

$0.99

$

In Stock, Qty 20+

0

61

Scag 481232

FAN, COOLING RH

$19.99

$

Usually ships in 2-12 days

0

62

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 8

0

63

Scag 421863

WASHER, HEAT DEFLECTOR

$

$

Not available

64

Scag 04015-14

SOCKET HEAD CAPSCREW, 1/4-20 X 1-3/8

$2.99

$

In Stock, only 2 left!

0
