STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Deck Drive Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

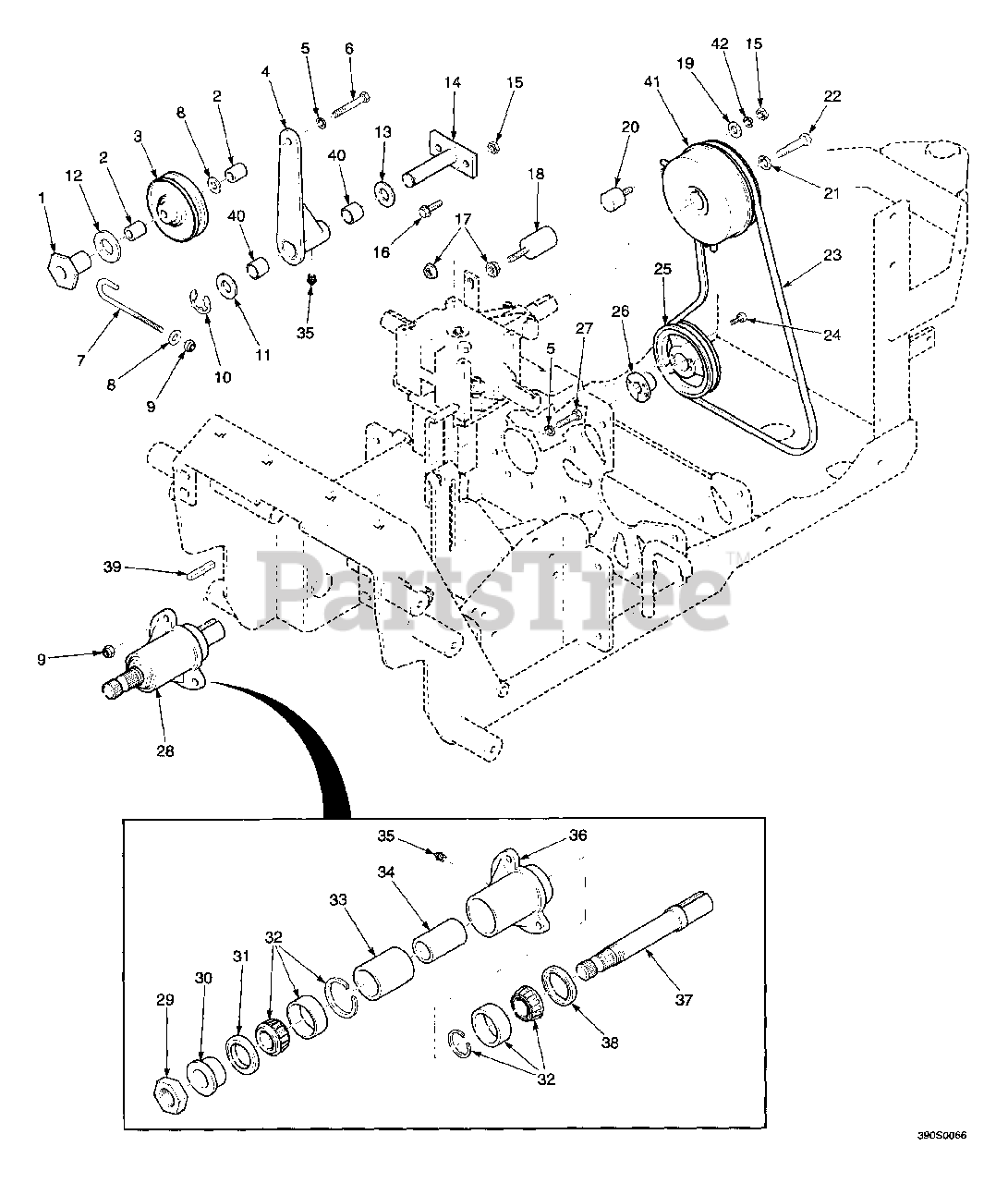

Deck Drive Parts Diagram

  • Title

1

Scag 43369

Nut, Special

$30.99

$

Usually ships in 2-12 days

0

2

Scag 43282

Spacer J-Pull Rod

$7.99

$

Usually ships in 2-12 days

0

3

Scag 48068

Pulley, Idler

$44.99

$

In Stock, only 1 left!

0

4

Scag 46932

Idler Arm, Auxiliary Drive

$102.99

$

Usually ships in 2-12 days

0

5

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

6

Scag 04001-62

Bolt, Hex Head, 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

7

Scag 44078

J-Pull Rod

$6.99

$

In Stock, only 2 left!

0

8

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 10

0

9

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 04050-02

Retaining Ring, .75 "E"

$0.99

$

In Stock, Qty 10

0

11

Scag 04041-08

Flatwasher, 3/4 (.766 x 1.25 x .060)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04041-12

Washer

$0.99

$

In Stock, Qty 11

0

13

Scag 04041-08S

Flatwasher, 3/4 (.766 x 1.25 x .035)

$0.99

$

In Stock, Qty 20+

0

14

Scag 45740

Pivot, Auxiliary Drive Idler

$20.99

$

Usually ships in 2-12 days

0

15

Scag 04020-03

Hex Nut, 5/16-18

$0.99

$

In Stock, only 3 left!

0

16

Scag 04017-17

Serr. Fl. Hex Head CPSCR, 5/16-18 x 1.00

$0.99

$

Usually ships in 2-12 days

0

17

Scag 04019-05

Serr. Fl. Hex Nut, 7/16-14

$0.99

$

In Stock, Qty 12

0

18

Scag 43428

Base, Clutch Anti-Rotation

$46.99

$

Usually ships in 2-12 days

0

19

Scag 04040-15

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 9

0

20

Scag 481469

Isolator, Rubber

$10.99

$

Usually ships in 2-12 days

0

21

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 14

0

22

Scag 04001-103

Bolt, Hex Head, 7/16-20 x 2-1/4"

$

$

Currently unavailable

23

Scag 481496

Belt, Blower Drive

$46.99

$

Usually ships in 2-12 days

0

24

Scag 04015-14

Socket Head Capscrew, 1/4-20 x 1-3/8"

$2.99

$

In Stock, only 2 left!

0

25

Scag 481435

Pulley, 5.35 OD
(Superseded to 482647)

$37.99

$

In Stock, only 1 left!

0

26

Scag 48926

Hub, Tapered

$31.99

$

In Stock, Qty 14

0

27

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 15

0

28

Scag 46828

Spindle Assembly, Drive Shaft

Note: Includes 29-38

$746.99

$

Usually ships in 2-12 days

0

29

Scag 481035

Nut, 1.06-18

$7.99

$

In Stock, only 3 left!

0

30

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

31

Scag 481025

Seal, 2.00 OD x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

32

Scag 481022

Roller Bearing Assembly

$61.99

$

In Stock, Qty 6

0

33

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

34

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

35

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

36

Scag 43368

Spindle Housing

$349.99

$

Usually ships in 2-12 days

0

37

Scag 43316

Shaft, PTO Deck Drive
(Superseded to 46828)

$746.99

$

Usually ships in 2-12 days

0

38

Scag 481024

Seal, 2.00 OD x 1.50 Bore

$4.99

$

In Stock, Qty 17

0

39

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, Qty 12

0

40

Scag 48100-05

Bushing, Oilite, .753 ID

$0.99

$

In Stock, Qty 16

0

41

Scag 481228

Electric Clutch

$503.99

$

Usually ships in 2-12 days

0

42

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0
