STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Hydraulic Components And Lines Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

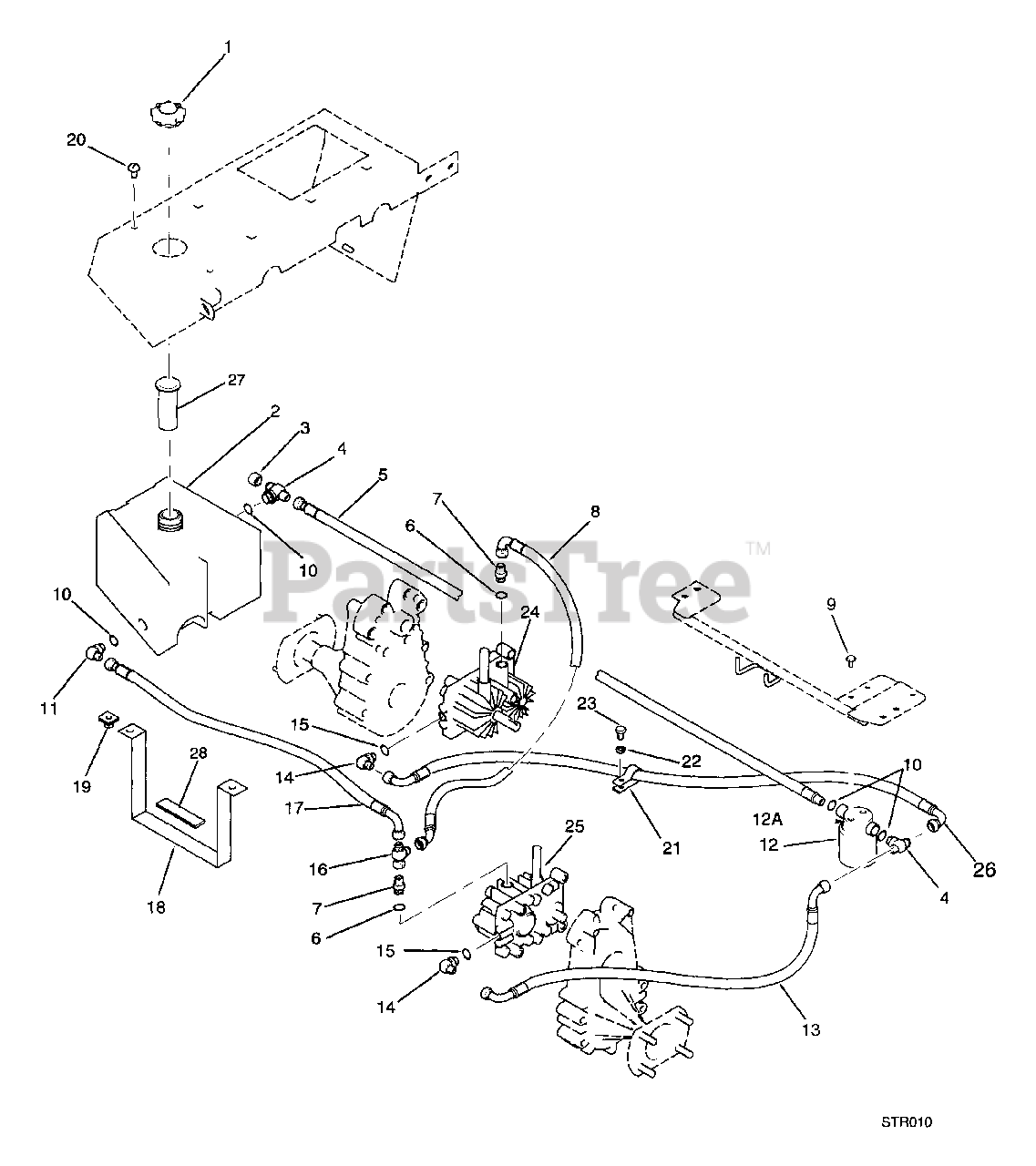

Hydraulic Components And Lines Parts Diagram

  • Title

1

Scag 48894

Cap, Hydraulic Reservoir Fill

$21.99

$

Usually ships in 2-12 days

0

2

Scag 481240

Tank, Hydraulic Oil

$288.99

$

Usually ships in 2-12 days

0

3

Scag 48571-02

Cap, 3-4-16 JIC

$5.99

$

Usually ships in 2-12 days

0

4

Scag 48810-01

Tee, 3/4-16 JIC x O-Ring

$34.99

$

Usually ships in 2-12 days

0

5

Scag 481241

Hose Assembly, Filter inlet

$53.99

$

Usually ships in 2-12 days

0

6

Scag 48603-04

O-Ring, 3/32 x 3/4 ID

$8.99

$

In Stock, only 2 left!

0

7

Scag 48572-02

Union, Tube

$12.99

$

Usually ships in 2-12 days

0

8

Scag 481358

Hose Assembly, Case Drain

$76.99

$

Usually ships in 2-12 days

0

9

Scag 04017-04

Serr. Fl. Hex Head CPSCRW, 1/4-30 x 1/2"

$0.99

$

In Stock, Qty 20+

0

10

Scag 48603-02

O-Ring, 3/32 x 5/8 ID

$3.49

$

In Stock, only 3 left!

0

11

Scag 48350-02

Elbow, 90ø JIC to O-Ring

$26.99

$

Usually ships in 2-12 days

0

12

Scag 48462-01

Element, Filter

$26.99

$

In Stock, Qty 20+

0

12A

Scag 48462-02

Head, Filter

$41.99

$

Usually ships in 2-12 days

0

13

Scag 481359

Hose Assembly, L.H. Charge Pump

$76.99

$

Usually ships in 2-12 days

0

14

Scag 48350-10

Elbow, 90ø 9/16-18 JIC to 7/16-20 O-Ring

$26.99

$

Usually ships in 2-12 days

0

15

Scag 48603-03

O-Ring, 1/16 x 3/8 ID

$3.49

$

Usually ships in 2-12 days

0

16

Scag 481384-01

Tee, 3/4-16 Swivel

$

$

Not available

17

Scag 481361

Hose Assembly, Case Drain Return

$68.99

$

Usually ships in 2-12 days

0

18

Scag 42945

Strap, Hydraulic Tank

$16.99

$

Usually ships in 2-12 days

0

19

Scag 04110-01

U-Nut

$1.49

$

In Stock, Qty 19

0

20

Scag 04010-10

Machine Screw, Round Head, 1/4-20 x 2.00"

$0.99

$

In Stock, Qty 12

0

21

Scag 48030-13

Clamp, Cable

$1.99

$

Usually ships in 2-12 days

0

22

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 7

0

24

Scag 481226

Pump, R.H.

$1157.99

$

Usually ships in 2-12 days

0

25

Scag 481225

Pump, L.H.

$1157.99

$

Usually ships in 2-12 days

0

26

Scag 481360

Hose Assembly, RH Charge Pump

$80.99

$

Usually ships in 2-12 days

0

27

Scag 481507

Insert, Filler Neck

$13.99

$

Usually ships in 2-12 days

0

28

Scag 48657

Rubber Pad

$5.99

$

Usually ships in 2-12 days

0
