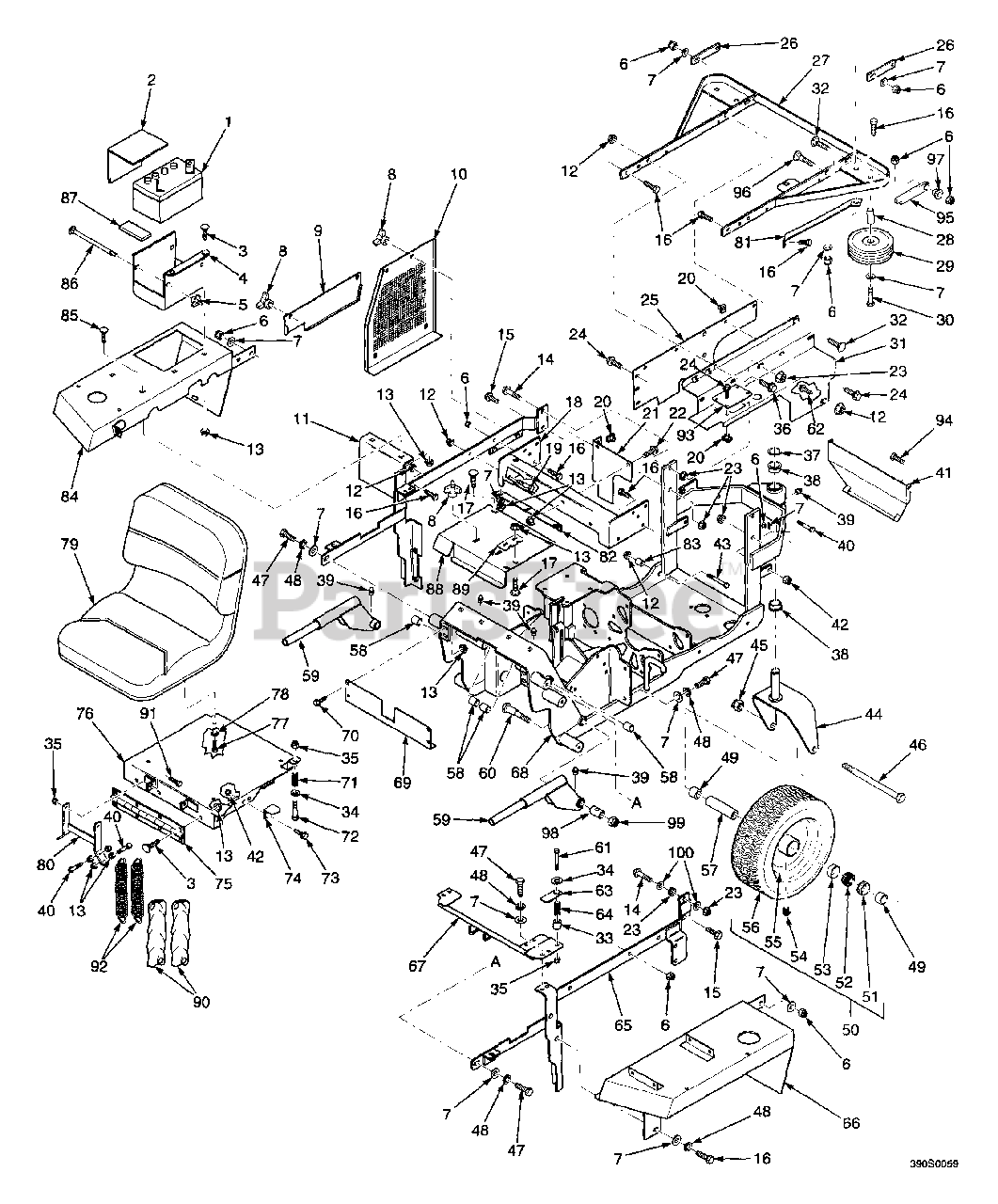

STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Sheet Metal Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

Sheet Metal Parts Diagram

  • Title

1

Scag 48015

Battery

$

$

Not available

2

Scag 42392

Cover, Battery

$47.99

$

Usually ships in 2-12 days

0

3

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

4

Scag 421197

Box, Battery

$44.99

$

In Stock, only 1 left!

0

5

Scag 04029-01

Wingnut, Plastic, 1/4-20

$2.49

$

In Stock, only 4 left!

0

6

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 10

0

8

Scag 04029-03

Wingnut, Plastic, 3/8-16"

$2.49

$

In Stock, Qty 20+

0

9

Scag 422088

Belt Cover, Front

$

$

Not available

10

Scag 422089

Belt Cover, Rear

$

$

Not available

11

Scag 45756

Frame, Right Side

$147.99

$

Usually ships in 2-12 days

0

12

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18"

$0.99

$

In Stock, Qty 19

0

14

Scag 04017-39

Serr. Fl. Hex Head CPSCR, 1/2-13 x 2.00"

$3.49

$

Usually ships in 2-12 days

0

15

Scag 04017-37

Serr. Fl. Hex Head CPSCR, 1/2-13 x 1-1/4"

$2.49

$

In Stock, only 4 left!

0

16

Scag 04001-32

Bolt, Hex Head, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 13

0

17

Scag 04003-14

Carriage Bolt, 5/16-18 x 1/2"

$0.99

$

In Stock, Qty 8

0

18

Scag 421894

Cross Brace, Frame

$63.99

$

Usually ships in 2-12 days

0

19

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 15

0

20

Scag 04110-01

U-Nut

$1.49

$

In Stock, Qty 19

0

21

Scag 422082

Heat Shield, Front

$

$

Currently unavailable

22

Scag 04017-18

Serr. Fl. Hex Head CPSCR, 5/16-18 x 1-1/4"

$1.49

$

Usually ships in 2-12 days

0

23

Scag 04019-06

Serr. Fl. Hex Nut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

24

Scag 04017-05

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 422081

Heat Shield, Side

$18.99

$

Usually ships in 2-12 days

0

26

Scag 421967

Link

$

$

Not available

27

Scag 45757

Frame, Bagger Support

$

$

Not available

28

Scag 481376

Spacer, Wheel

$

$

Not available

29

Scag 481249

Wheel, Bumper

$21.99

$

Usually ships in 2-12 days

0

30

Scag 04001-31

Bolt, Hex Head, 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 5

0

31

Scag 422230

Heat Shield, Top

$

$

Not available

32

Scag 04003-11

Carriage Bolt, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

33

Scag 43419

Pivot, Seat Latch

$

$

Not available

34

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 9

0

35

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

36

Scag 04017-26

Serr. Fl. Hex Head CPSCR, 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

37

Scag 04050-05

Retaining Ring, 1-1/4"

$0.99

$

In Stock, Qty 20+

0

38

Scag 48100-02

Bushing, Oilite, 1.127 ID

$3.99

$

Usually ships in 2-12 days

0

39

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

40

Scag 04001-12

Bolt, Hex Head, 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

41

Scag 421902

Shield, Engine

$37.99

$

Usually ships in 2-12 days

0

42

Scag 04021-08

Hex Lock Nut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0

43

Scag 04001-54

Bolt, Hex Head, 3/8-16 x 3.00"

$1.49

$

In Stock, Qty 18

0

44

Scag 45802

Yoke, Rear Caster

$204.99

$

Usually ships in 2-12 days

0

45

Scag 04021-13

Hex Locknut, Elastic Stop, 5/8-11

$1.49

$

In Stock, Qty 9

0

46

Scag 04001-40

Bolt, Hex Head, 5/8-11 x 9.00"

$81.99

$

Usually ships in 2-12 days

0

47

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1.00"

$0.99

$

In Stock, Qty 20+

0

48

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

49

Scag 43020-07

Spacer

$12.99

$

Usually ships in 2-12 days

0

50

Scag 481303

Tire and Wheel Assembly

Note: Includes items 51-56

$251.99

$

Usually ships in 2-12 days

0

51

Scag 48005-06

Seal
(Superseded to 481897)

$9.49

$

In Stock, only 3 left!

0

52

Scag 48005-05

Cone, Bearing
(Superseded to 481896)

$22.99

$

In Stock, only 3 left!

0

53

Scag 48005-04

Cup, Bearing
(Superseded to 481895)

$19.99

$

Usually ships in 2-12 days

0

54

Scag 48114-06

Grease Fitting

$3.99

$

Usually ships in 2-12 days

0

55

Scag 481303-03

Rim
(Superseded to 481900)

$251.99

$

Usually ships in 2-12 days

0

56

Scag 481303-02

Tire
(Superseded to 481899)

$109.99

$

Usually ships in 2-12 days

0

57

Scag 43405

Sleeve, Rear Tire

$26.99

$

Usually ships in 2-12 days

0

58

Scag 48100-06

Bushing, Oilite, .753 ID

$1.49

$

In Stock, Qty 9

0

59

Scag 46959

Shaft, Push Arm Mounting

$

$

Not available

60

Scag 43434

Pivot, Pusharm

$67.99

$

Usually ships in 2-12 days

0

61

Scag 04001-13

Bolt, Hex Head, 5/16-18 x 2-3/4"

$0.99

$

In Stock, only 1 left!

0

62

Scag 04017-26

Serr. Fl. Hex Head CPSCR, 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

63

Scag 422085

Latch, Seat

$

$

Not available

64

Scag 48050

Spring

$33.99

$

Usually ships in 2-12 days

0

65

Scag 45755

Frame, Left Side

$130.99

$

Usually ships in 2-12 days

0

66

Scag 46884

Fender, Left With Decal

$

$

Not available

67

Scag 45824

Crossbrace

$

$

Not available

68

Scag 46961

Frame, Main
(Superseded to 461025)

$2657.99

$

Usually ships in 2-12 days

0

69

Scag 422091

Crossmember, Front

$

$

Not available

70

Scag 04017-16

Serr. Fl. Hex Head CPSCR, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

71

Scag 481389

Spring, Seat

$3.99

$

In Stock, only 2 left!

0

72

Scag 04001-130

Bolt, Special

$6.49

$

Usually ships in 2-12 days

0

73

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

68

Scag 46961

Frame, Main
(Superseded to 461025)

$2657.99

$

Usually ships in 2-12 days

0

69

Scag 422091

Crossmember, Front

$

$

Not available

70

Scag 04017-16

Serr. Fl. Hex Head CPSCR, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

71

Scag 481389

Spring, Seat

$3.99

$

In Stock, only 2 left!

0

72

Scag 04001-130

Bolt, Special

$6.49

$

Usually ships in 2-12 days

0

73

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

74

Scag 422090

Actuator, Seat Switch

$13.99

$

Usually ships in 2-12 days

0

75

Scag 481246

Hinge, Seat

$29.99

$

Usually ships in 2-12 days

0

76

Scag 45800

Seat Base

$271.99

$

Usually ships in 2-12 days

0

77

Scag 04001-08

Bolt, Hex Head, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

78

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

79

Scag 481362

Seat

$431.99

$

Usually ships in 2-12 days

0

80

Scag 45875

Mounting Brkt Wlmt, Deck Springs

$

$

Not available

81

Scag 421899

Brace, Bucket Support

$

$

Not available

82

Scag 481388

Hinge, Gearbox Cover

$12.99

$

Usually ships in 2-12 days

0

83

Scag 43404

Spacer

$10.99

$

Usually ships in 2-12 days

0

84

Scag 46885

Fender, Right With Decal

$

$

Not available

85

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

86

Scag 04003-01

Carriage Bolt, 1/4-20 x 6.00"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 11

0

87

Scag 48661

Pad, Rubber

$4.99

$

In Stock, only 2 left!

0

88

Scag 46894

Cover, Gearbox With Decal
(Superseded to 46966)

$

$

Not available

89

Scag 422087

Bracket, Dump Valve

$6.99

$

Usually ships in 2-12 days

0

90

Scag 481374

Spring Cover

$27.99

$

Usually ships in 2-12 days

0

91

Scag 04001-09

Bolt, 5/16-18 x 1.00"

$0.99

$

In Stock, Qty 20+

0

92

Scag 481250

Spring, Deck

$12.99

$

In Stock, only 1 left!

0

93

Scag 422229

Cover, Access Hole

$

$

Not available

94

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 12

0

95

Scag 422292

Prop Rod, Hopper

$

$

Not available

96

Scag 04003-05

Carr. Bolt, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 9

0

97

Scag 43260

Washer, Step

$9.99

$

Usually ships in 2-12 days

0

98

Scag 481501

Bushing, 1.003 ID x 2.10"

$12.99

$

Usually ships in 2-12 days

0

99

Scag 04021-14

Nut, 3/4-16 UNF Elastic Stop

$1.99

$

Usually ships in 2-12 days

0

100

Scag 04040-13

Flatwasher, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 6

0
