STR-22CH - Scag Turf Runner Riding Mower, 22hp Kohler (SN: 70000 - 79999) Speed And Steering Controls Parts Diagram

Turf Runner Riding Mower, 22hp Kohler

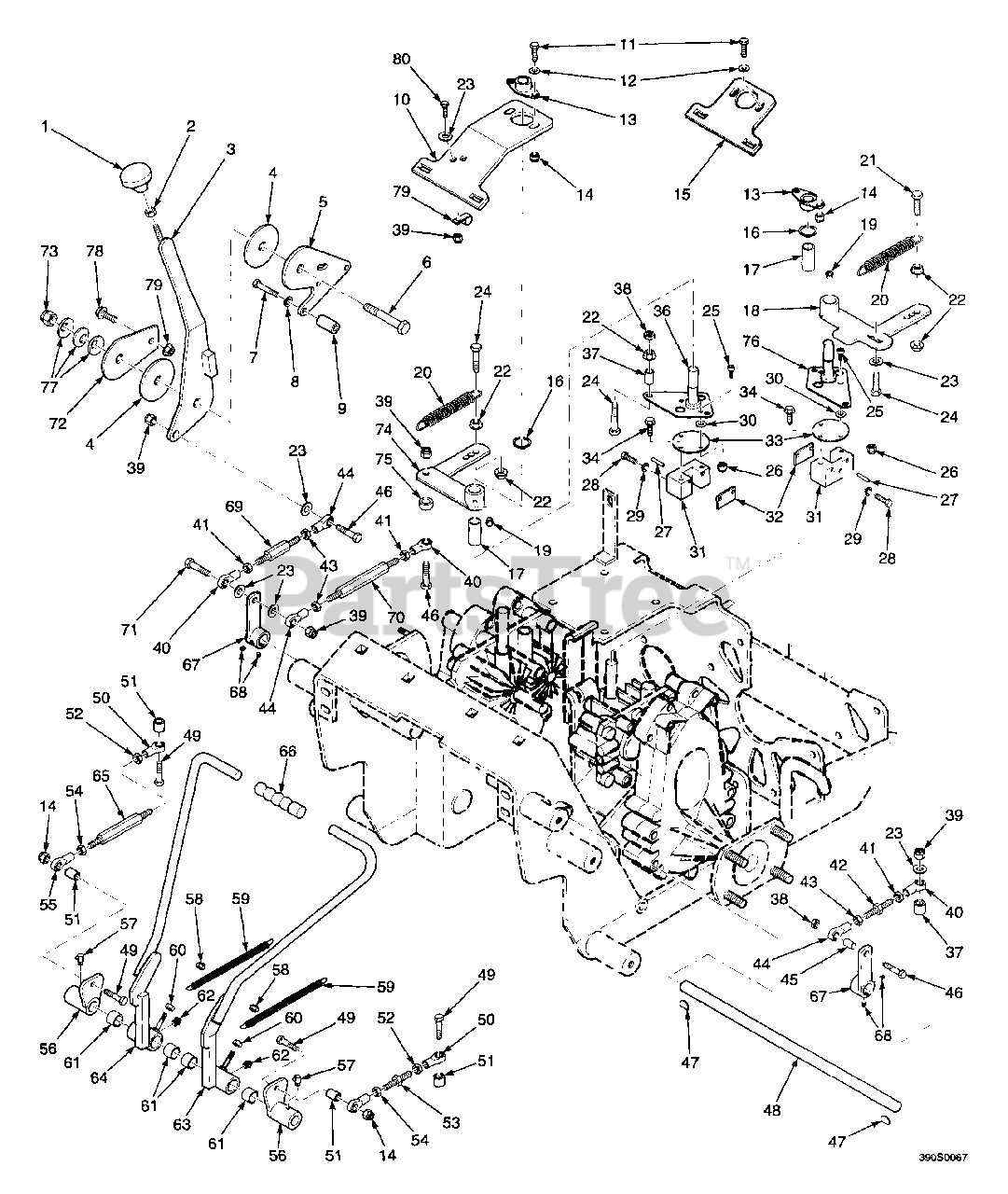

Speed And Steering Controls Parts Diagram

  • Title

1

Scag 481245

Knob

$8.99

$

Usually ships in 2-12 days

0

2

Scag 04020-04

Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 45753

Lever, Speed Control

$

$

Not available

4

Scag 481243

Disc, Friction

$

$

Not available

5

Scag 422197

Mounting, Plate, Speed Selector

$

$

Not available

6

Scag 04001-122

Bolt, Hex Head, 5/8-11 x 2-1/4"

$2.99

$

Usually ships in 2-12 days

0

7

Scag 04001-53

Bolt, Hex head, 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

8

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

9

Scag 43380

Spacer, Speed Control

$

$

Not available

10

Scag 421880

Mounting Plate, Speed Control

$

$

Not available

11

Scag 04001-08

Bolt, Hex Head, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 9

0

13

Scag 48796

Bushing, Self-Aligning

$12.99

$

Usually ships in 2-12 days

0

14

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 421879

Mounting Plate, Left Bearing

$

$

Not available

16

Scag 04050-01

Ring, Retaining, .625"

$0.99

$

In Stock, Qty 20+

0

17

Scag 481509

Bushing, Oilite, .627" ID

$6.49

$

Usually ships in 2-12 days

0

18

Scag 46889

Lever, L.H. Speed Control

$

$

Not available

19

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

20

Scag 48051

Spring

$5.99

$

In Stock, only 2 left!

0

21

Scag 04001-32

Bolt, Hex Head, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

22

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-45

Bolt, Hex Head, 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 13

0

25

Scag 04015-10

Capscrew, Socket Head, 1/4-20 x 1/2"

$

$

Currently unavailable

26

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0

27

Scag 04060-06

Roll Pin

$0.99

$

In Stock, only 4 left!

0

28

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 16

0

29

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04040-03

Flatwasher, 1/4 (.281 x .625 x .065)

$0.99

$

In Stock, Qty 8

0

31

Scag 48829

Block, Pump Control

$21.99

$

Usually ships in 2-12 days

0

32

Scag 421203

Clamp Plate, Pump Control

$18.99

$

Usually ships in 2-12 days

0

33

Scag 422273

Plate, Coupler

$8.49

$

Usually ships in 2-12 days

0

34

Scag 04017-05

Serr. Fl. Hex Head CPSCRW, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

?35

Scag 04017-18

Serr. Fl. Hex Head CPSCRW, 5/16-18 x 1-1/4"

$1.49

$

Usually ships in 2-12 days

0

36

Scag 45750

Arm, R.H. Pump Control

$65.99

$

Usually ships in 2-12 days

0

37

Scag 43376

Stop, Pump Arm

$6.99

$

Usually ships in 2-12 days

0

38

Scag 04021-05

Hex Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

39

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 48464

Ball Joint, 3/8-24 R.H. Thread

$23.99

$

In Stock, only 1 left!

0

41

Scag 04020-14

Hex Nut, 3/8-24 R.H. Thread

$0.99

$

In Stock, Qty 7

0

42

Scag 48590

Link

$33.99

$

Usually ships in 2-12 days

0

43

Scag 04020-17

Hex Nut, 3/8-24 L.H. Thread

$2.49

$

In Stock, Qty 5

0

44

Scag 48544

Rod End, 3/8-24 L.H. Thread

$27.99

$

Usually ships in 2-12 days

0

45

Scag 43212

Sleeve

$4.49

$

Usually ships in 2-12 days

0

46

Scag 04001-20

Bolt, Hex Head, 3/8-16 1-1/2"

$0.99

$

In Stock, Qty 17

0

47

Scag 04063-12

Key, 3/16 x 5/8 Woodruff

$0.99

$

In Stock, Qty 18

0

48

Scag 43371

Shaft Speed Control

$43.99

$

Usually ships in 2-12 days

0

49

Scag 04001-11

Bolt, Hex Head, 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 15

0

50

Scag 481189

Rod End, 5/16-24 R.H. Thread

$25.99

$

Usually ships in 2-12 days

0

51

Scag 43161

Spacer

$1.99

$

Usually ships in 2-12 days

0

52

Scag 04020-13

Hex Nut, 5/16-24 R.H. Thread

$0.99

$

Usually ships in 2-12 days

0

53

Scag 43377

Link, Adjustment

$

$

Not available

54

Scag 04020-23

Hex Nut, 5/16-24 L.H. Thread

$0.99

$

Usually ships in 2-12 days

0

55

Scag 481188

Rod End, 5/16-24 L.H. Thread

$26.99

$

Usually ships in 2-12 days

0

56

Scag 46886

Control Lever

$

$

Not available

57

Scag 48114-08

Grease Fitting, 90ø

$4.49

$

Usually ships in 2-12 days

0

58

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

59

Scag 481242

Spring, Handle Return

$7.99

$

Usually ships in 2-12 days

0

60

Scag 04021-04

Hex Locknut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

61

Scag 48100-05

Bushing, Oilite, .753 ID

$0.99

$

In Stock, Qty 18

0

62

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 10

0

63

Scag 46887

Lever, L.H. Control

$

$

Not available

64

Scag 46888

Lever, R.H. Control
(Superseded to 461004)

$114.99

$

Usually ships in 2-12 days

0

65

Scag 43378

Link, R.H. Adjustment

$

$

Not available

66

Scag 481477

Grip, Hand Control

$4.49

$

Usually ships in 2-12 days

0

67

Scag 45745

Lever, Speed Control
(Superseded to 482146)

$224.99

$

Usually ships in 2-12 days

0

68

Scag 04012-02

Setscrew, Socket Head, 1/4-20 x 1/4"

$0.99

$

In Stock, only 3 left!

0

69

Scag 43379

Link, Speed Control

$22.99

$

Usually ships in 2-12 days

0

70

Scag 43246

Link

$28.99

$

Usually ships in 2-12 days

0

71

Scag 04001-21

Bolt, Hex Head, 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

72

Scag 422198

Plate, Speed Selector

$

$

Not available

73

Scag 04021-13

Hex Locknut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 11

0

74

Scag 46890

Lever, R.H. Speed Control

$

$

Not available

75

Scag 43063

Spacer

$9.99

$

Usually ships in 2-12 days

0

76

Scag 45749

Arm, L.H. Pump Control

$75.99

$

Usually ships in 2-12 days

0

77

Scag 04032-04

Washer, Belleville, 5/8"

$5.49

$

Usually ships in 2-12 days

0

78

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 10

0

79

Scag 48030-13

Clamp, .75 Dia.

$1.99

$

Usually ships in 2-12 days

0

80

Scag 04001-19

Hex Head Bolt, 3/8-16 x 1.0"

$0.99

$

In Stock, Qty 20+

0
