STS60-21BV - Scag Turf Storm Spreader/Sprayer, 21hp Vanguard (SN: T2500001 - T2599999) HYDRAULICS AND ENGINE COMPONENTS Parts Diagram

Turf Storm Spreader/Sprayer, 21hp Vanguard

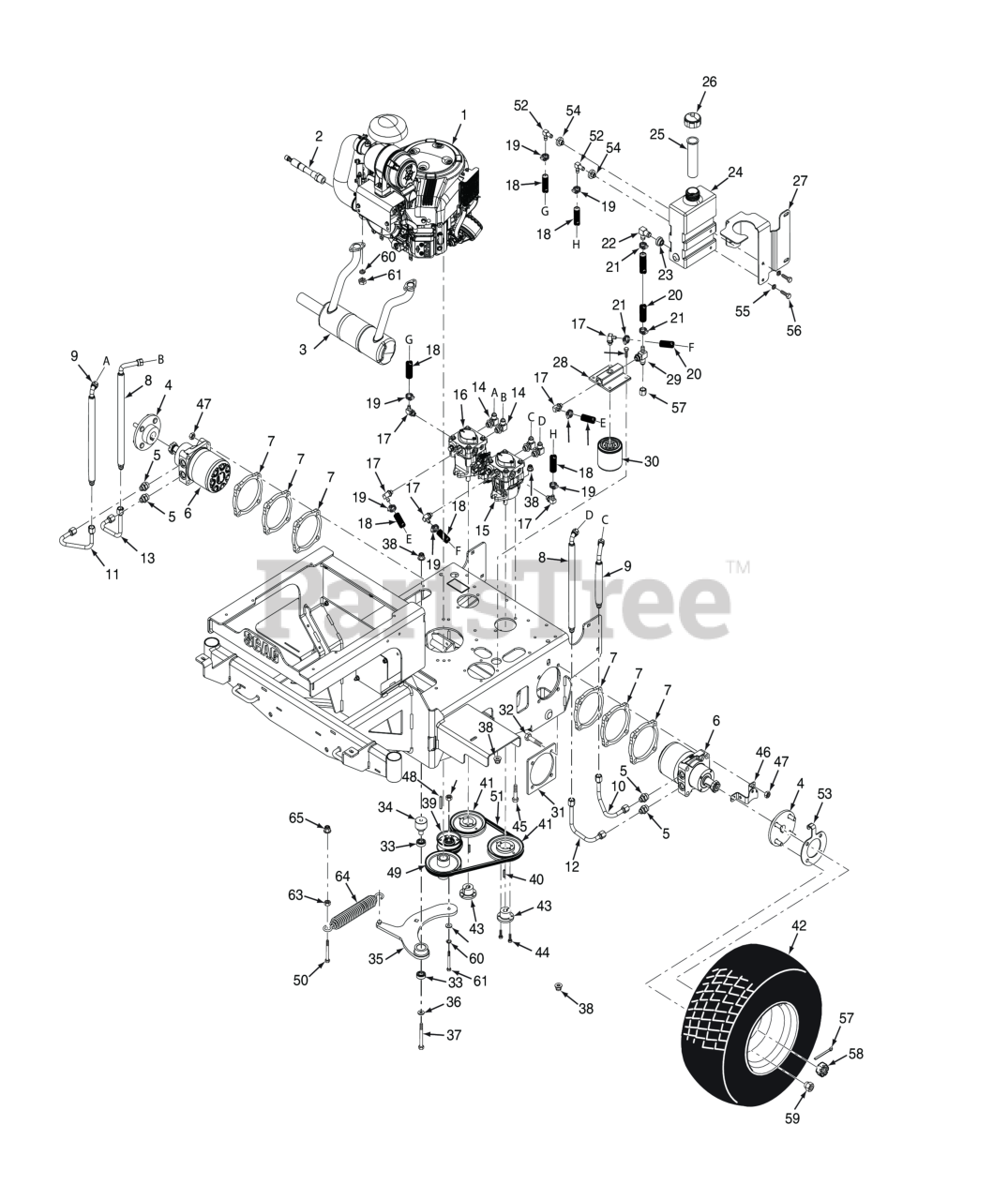

HYDRAULICS AND ENGINE COMPONENTS Parts Diagram

  • Title

1

Scag 486471

Engine, 21 HP Briggs Vanguard

$

$

Currently unavailable

2

Scag 484610

Hose, Oil Drain, Kohler - ECV860
(Superseded to 484706)

$41.99

$

Usually ships in 2-12 days

0

3

Scag 486470

Muffler, 21 HP BV

$235.99

$

Usually ships in 2-12 days

0

4

Scag 462999

Wheel Hub Assy., SVRII

$111.99

$

Usually ships in 2-12 days

0

5

Scag 48572-02

TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING

$12.99

$

Usually ships in 2-12 days

0

6

Scag 482639

Wheel Motor, Parker

$1183.99

$

In Stock, only 1 left!

0

7

Scag 428334

Spacer, Wheel Motor

$32.99

$

Usually ships in 2-12 days

0

8

Scag 486483

Hose Assy, 17.50"

$88.99

$

Usually ships in 2-12 days

0

9

Scag 486484

Hose Assy, 16.25

$77.99

$

Usually ships in 2-12 days

0

10

Scag 486654

Tube Assy, 1/2" LH Upper

$89.99

$

Usually ships in 2-12 days

0

11

Scag 486655

Tube Assy, 1/2" RH Upper

$89.99

$

Usually ships in 2-12 days

0

12

Scag 486656

Tube Assy, 1/2" LH Lower

$89.99

$

Usually ships in 2-12 days

0

13

Scag 486657

Tube Assy, 1/2" RH Lower

$89.99

$

Usually ships in 2-12 days

0

14

Scag 48350-02

Elbow, 90 Degree 3/4-16 JIC x 3/4-16 O-Ring

$26.99

$

In Stock, only 1 left!

0

15

Scag 486444

Pump, LH

$1071.99

$

Usually ships in 2-12 days

0

16

Scag 486445

Pump, RH

$1071.99

$

Usually ships in 2-12 days

0

17

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$32.99

$

Usually ships in 2-12 days

0

18

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

19

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, only 3 left!

0

20

Scag 48351

Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base)

$0.99

$

In Stock, Qty 6

0

21

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

22

Scag 482574

Fitting, 90 Degree - 1/2" Hose

$18.99

$

Usually ships in 2-12 days

0

23

Scag 482573

Bushing, 0.78" Dia. Viton

$13.99

$

Usually ships in 2-12 days

0

24

Scag 463046

Hyd. Tank Assy

Note: (Incl.#

$221.99

$

Usually ships in 2-12 days

0

25

Scag 481507

Insert, Filler Neck

$13.99

$

In Stock, only 1 left!

0

26

Scag 481164

CAP, HYDRAULIC TANK

$18.99

$

In Stock, only 4 left!

0

27

Scag 428473

Mounting Bracket, Oil Reservoir

$133.99

$

Usually ships in 2-12 days

0

28

Scag 482417

Filter Head Assembly

$128.99

$

Usually ships in 2-12 days

0

29

Scag 482477

Tee, 3/8" O-Ring x JIC x 1/2" Hose

$34.99

$

Usually ships in 2-12 days

0

30

Scag 48462-01

OIL FILTER, SPECIAL

$26.99

$

In Stock, Qty 20+

0

31

Scag 423279

Plate Weldment, Motor Backing

$26.99

$

Usually ships in 2-12 days

0

32

Scag 04001-194

Bolt, Hex Head 1/2-13 x 4-1/4"

$5.49

$

In Stock, Qty 8

0

33

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

34

Scag 43683

Pivot, Idler

$55.99

$

Usually ships in 2-12 days

0

35

Scag 463355

Idler Arm Assembly

Note: (incl. #33)

$119.99

$

Usually ships in 2-12 days

0

36

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

37

Scag 04201-57

Bolt, Hex Head 3/8- 16 x 3.50 - Stainless Steel

$2.49

$

Usually ships in 2-12 days

0

38

Scag 04317-03

Nut, Flange Elastic Stop 3/8 - 16 - Stainless Steel

$2.99

$

Usually ships in 2-12 days

0

39

Scag 486045

Pulley, 3-1/2" Dia.

$21.99

$

In Stock, Qty 14

0

40

Scag 04063-14

KEY, 5 MM X 5 MM X 25 MM

$0.99

$

In Stock, Qty 20+

0

41

Scag 482649

Pulley, 5.45 OD - Tapered Bore"

$49.99

$

In Stock, only 1 left!

0

42

Scag 486399

Wheel Assembly, 20 x 12 - 10

$395.99

$

Usually ships in 2-12 days

0

43

Scag 482085

Hub, Tapered, 15mm Bore

$28.99

$

In Stock, Qty 5

0

44

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

45

Scag 04201-30

Bolt, Hex Head 3/8 - 16 x 1.50 - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

46

Scag 427828

Plate, Speed Sensor

$51.99

$

Usually ships in 2-12 days

0

47

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 19

0

48

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

0

49

Scag 486567

Pulley 5.45 OD x 1.125 Bore

$130.99

$

Usually ships in 2-12 days

0

50

Scag 04201-33

Bolt, Hex Head 3/8-16 x 2-1/4" - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

51

Scag 486111

Belt, Pump Drive

$32.99

$

Usually ships in 2-12 days

0

52

Scag 482572

Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring

$10.99

$

Usually ships in 2-12 days

0

53

Scag 428105

Plate, Hub Magnet Holder

$68.99

$

Usually ships in 2-12 days

0

54

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

55

Scag 04201-16

Bolt, Hex 5/16 - 18 x .75 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

56

Scag 04230-03

Washer, Lock 5/16 Spring - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

57

Scag 04061-06

Pin, Cotter 9/16" x 1-1/2"

$0.99

$

In Stock, Qty 12

0

58

Scag 48680

Nut, Hex Castle 1.0-20 UNEF

$17.99

$

In Stock, only 2 left!

0

59

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.99

$

In Stock, Qty 20+

0

60

Scag 04230-05

Bolt, Hex Head 7/16-20 x 1.25"

$0.99

$

Usually ships in 2-12 days

0

61

Scag 04102-13

Flatwasher, 7/16-.469 x 1.750 x 1/4"

$6.49

$

Usually ships in 2-12 days

0

62

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 16

0

63

Scag 04220-04

Nut, 3/8 - 16 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

64

Scag 484754

Spring, PTO (Gasoline Engines)

$18.99

$

In Stock, Qty 8

0

65

Scag 04317-03

Nut, Flange Elastic Stop 3/8 - 16 - Stainless Steel

$2.99

$

Usually ships in 2-12 days

0
