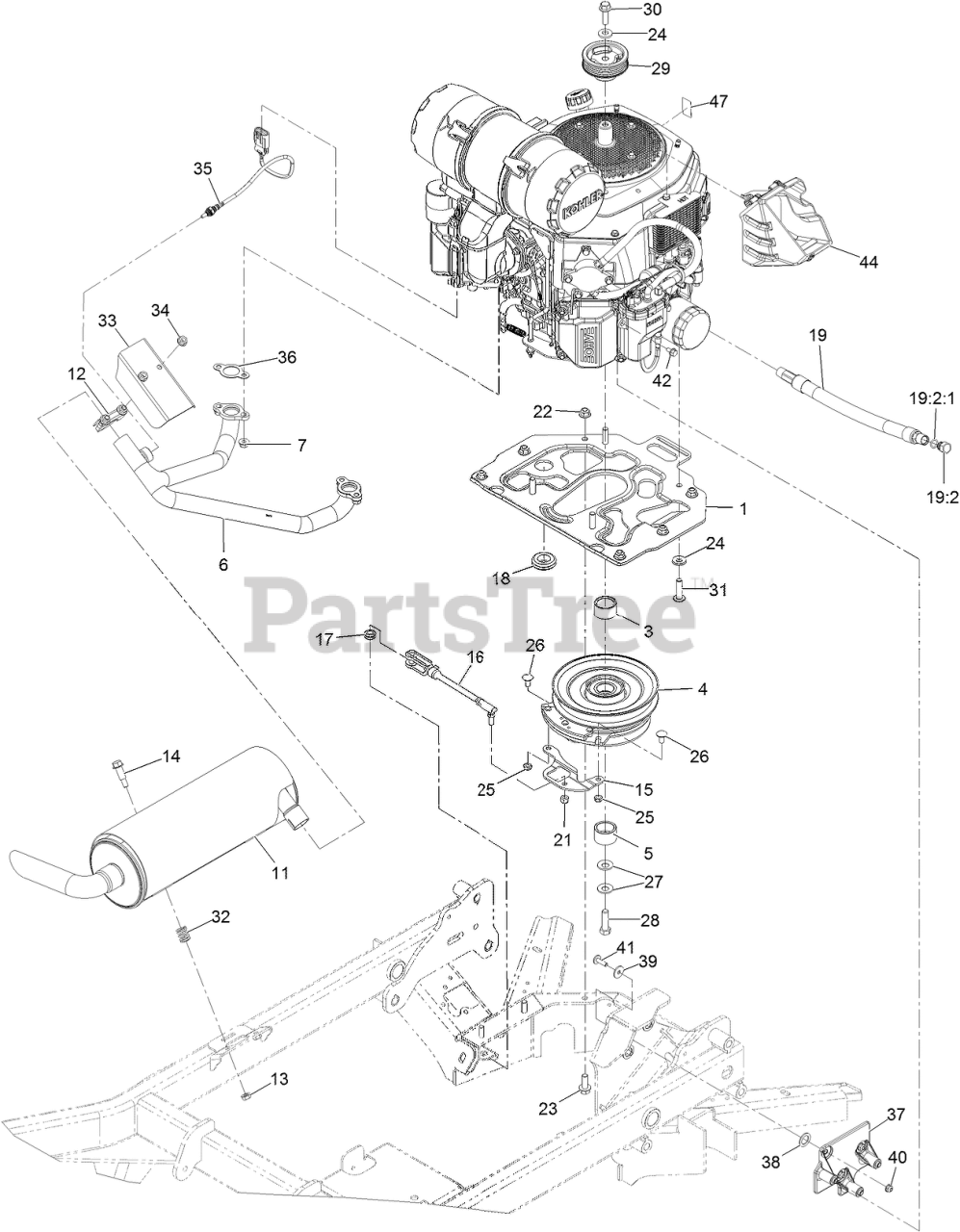

STS650AKC48400 - Exmark 48" Staris S-Series Stand-On Mower, Koh (SN: 404314159 - 406294344) (Rev B) (2019) Engine Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Koh

Engine Assembly Parts Diagram

  • Title

1

Exmark 135-1615-03

Plate, Engine

$181.99

$

Usually ships in 3-6 days

0

3

Exmark 135-1925

Spacer, Clutch

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5267

CLUTCH
(Superseded to 142-3587)

$476.99

$

Usually ships in 3-6 days

0

5

Exmark 135-1308

Spacer, Clutch

$6.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5095

Header, Kohler

$148.99

$

In Stock, only 1 left!

0

7

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 2 left!

0

11

Exmark 135-5093

Muffler, 5"
(Superseded to 142-3577)

$324.99

$

In Stock, only 1 left!

0

12

Exmark 104-4090

CLAMP-MUFFLER

$23.99

$

Usually ships in 3-6 days

0

13

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 20+

0

14

Exmark 130-2344

Bolt-Shoulder
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 135-1589

Strap, Clutch

$14.99

$

Usually ships in 3-6 days

0

16

Exmark 126-0620

ASM, CLUTCH ANCHOR

$62.99

$

In Stock, only 2 left!

0

17

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 2 left!

0

18

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

19

Exmark 116-5108

OIL DRAIN HOSE ASM

$37.99

$

In Stock, only 2 left!

0

19:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

19:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

22

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

26

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 17

0

27

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

28

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 135-1198

PULLEY, CRANK

$39.99

$

Usually ships in 3-6 days

0

30

Exmark 135-7890

Screw-HH, Patch

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 135-6667

135-6667

$2.99

$

In Stock, only 2 left!

0

33

Exmark 135-6366

135-6366

$28.99

$

Usually ships in 3-6 days

0

34

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 20+

0

35

Exmark 135-6594

Sensor, Mini O2

$271.99

$

Usually ships in 3-6 days

0

36

Exmark 110-6697

GASKET-EXHAUST

$

$

Not available

37

Exmark 136-6346

Bracket-Pump, Fuel

$

$

Currently unavailable

38

Exmark 121-6840

Washer-Rubber

$1.49

$

In Stock, only 3 left!

0

39

Exmark 3256-67

WASHER

$0.99

$

In Stock, Qty 9

0

40

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

41

Exmark 126-6269

SCREW-TRUSS

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 33103-012

SCREW-HHF

$5.49

$

In Stock, only 3 left!

0

43

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 14

0

44

Exmark 135-7376

Duct Half, Rear

$

$

Currently unavailable

47

Exmark 135-6844

Decal-10W-50 Oil

$2.99

$

Usually ships in 3-6 days
