STS650AKC48400 - Exmark 48" Staris S-Series Stand-On Mower, Koh (SN: 406294345 - 408644345) (Rev A) (2020) Deck Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Koh

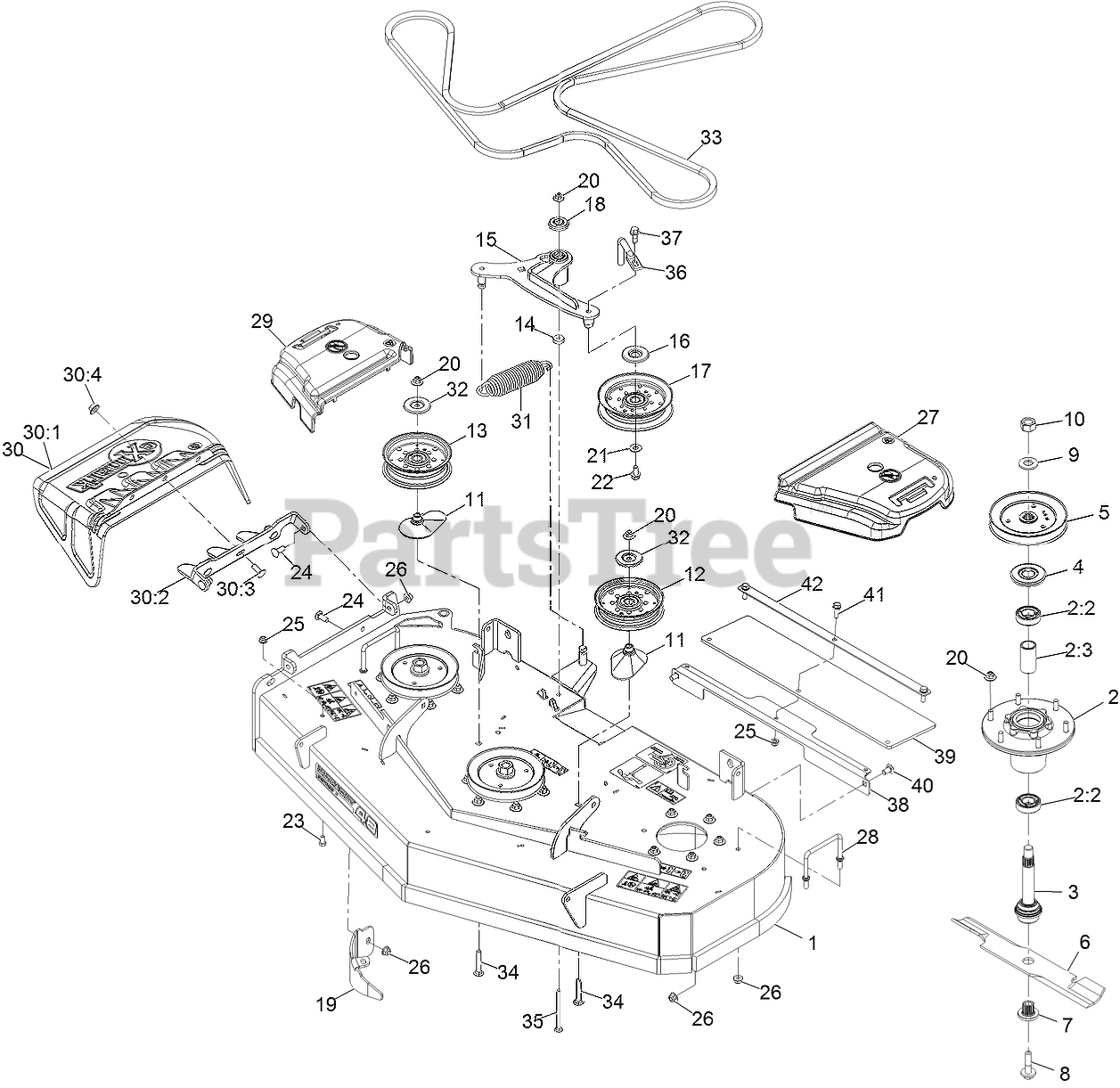

Deck Assembly Parts Diagram

  • Title

1

Exmark 135-1996

ASM, Deck W/ Decals, 48"

$2312.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$172.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 8

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$98.99

$

In Stock, Qty 20+

0

4

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

5

Exmark 116-0674

SHEAVE,BLADE DRIVE 5.90

$91.99

$

In Stock, only 3 left!

0

6

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$35.99

$

In Stock, Qty 20+

0

6

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

Note: Optional Equipment

$37.99

$

In Stock, only 4 left!

0

6

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

Note: Optional Equipment

$37.99

$

In Stock, only 3 left!

0

6

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$34.99

$

In Stock, Qty 20+

0

6

Exmark 116-5177

116-5177-S
(Superseded to 116-5177-S)

Note: Optional Equipment

$35.99

$

In Stock, Qty 20+

0

7

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

8

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

9

Exmark 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

10

Exmark 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

11

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

12

Exmark 126-9187

PULLEY-IDLER, FLAT

$66.99

$

In Stock, only 1 left!

0

13

Exmark 126-9197

IDLER-PULLEY, FLAT 5.00X1

$68.99

$

In Stock, only 2 left!

0

14

Exmark 62-6660

SPACER

$0.99

$

In Stock, Qty 5

0

15

Exmark 135-1937

ASM, Deck Idler

$40.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 8

0

17

Exmark 126-9196

IDLER-PULLEY, FLAT

$67.99

$

In Stock, Qty 10

0

18

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

19

Exmark 116-5995-01

BAFFLE-DOGLEG,LZS LZX VT4

$76.99

$

Usually ships in 3-6 days

0

20

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Exmark 110-1718

SCREW-HHF

$2.49

$

In Stock, Qty 20+

0

23

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Exmark 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

28

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

29

Exmark 109-6935

COVER-BELT, RH

$43.99

$

In Stock, Qty 17

0

30

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 12

0

30:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

30:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$60.99

$

In Stock, only 1 left!

0

30:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

30:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 19

0

32

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

33

Exmark 135-1998

BELT, 5V
(Superseded to 135-1998-SL)

$173.99

$

In Stock, Qty 9

0

34

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.99

$

In Stock, Qty 20+

0

35

Exmark 3231-37

SCREW-CARR

$5.49

$

In Stock, only 1 left!

0

36

Exmark 135-5023

Guide, Belt

$16.99

$

Usually ships in 3-6 days

0

37

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 18

0

38

Exmark 135-6287-03

Brkt, Heat Deflector

$42.99

$

Usually ships in 3-6 days

0

39

Exmark 135-6358

Shield, Heat

$144.99

$

Usually ships in 3-6 days

0

40

Exmark 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

41

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

42

Exmark 135-7122-03

Brkt-Heat Deflector, Top

$17.99

$

Usually ships in 3-6 days

0
