Exmark STS650AKC48400 - Exmark 48" Staris S-Series Stand-On Mower, Koh (SN: 408644346 - 411294211) (Rev A) (2021) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 142-4364

ASM, DECK STRUT

$129.99

$

In Stock, only 1 left!

2

Exmark 135-1248

BUSHING, IGUS

$5.49

$

In Stock, only 4 left!

3

Exmark 135-4586-03

WELD, BELLCRANK, RT

$64.99

$

Usually ships in 3-6 days

4

Exmark 142-2300-03

WELD, HOC INDEX

$134.99

$

Usually ships in 3-6 days

6

Exmark 142-6677

ASM- LEVER HOC

$188.99

$

Usually ships in 3-6 days

7

Exmark 119-7640

WASHER-THRUST

$3.99

$

In Stock, Qty 17

8

Exmark 142-3040-03

STRAP, HOC INDEX

$106.99

$

Usually ships in 3-6 days

9

Exmark 135-4585-03

WELD, HOC CROSS SHAFT

$228.99

$

Usually ships in 3-6 days

10

Exmark 135-1253-03

STRAP, HOC LIFT

$62.99

$

Usually ships in 3-6 days

11

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 11

12

Exmark 135-4587-03

WELD, BELLCRANK

$64.99

$

Usually ships in 3-6 days

13

Exmark 135-1259

BOLT, SHOULDER

$17.99

$

In Stock, Qty 6

14

Exmark 126-5401

PIN-HOC

$23.99

$

In Stock, only 2 left!

15

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

16

Exmark 323-50

BOLT-HH

$1.49

$

In Stock, Qty 16

17

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

18

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

19

Exmark 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

20

Exmark 142-2181

PIVOT, HOC LEVER

$16.99

$

Usually ships in 3-6 days

21

Exmark 3256-67

WASHER

$0.99

$

In Stock, Qty 8

22

Exmark 135-3944

SPACER, HOC

$5.99

$

Usually ships in 3-6 days

23

Exmark 135-3945

SCREW-HSBH

$9.49

$

Usually ships in 3-6 days

24

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

25

Exmark 119-2332

Washer-Flat

$2.99

$

Usually ships in 3-6 days

26

Exmark 109-9066

YOKE-ADJUST, DECK

$8.49

$

In Stock, only 2 left!

27

Exmark 116-0756

DECK LIFT CHAIN ASM

$15.99

$

In Stock, only 1 left!

27:1

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 14

27:2

Exmark 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 13

27:3

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

28

Exmark 115-5065

BUSHING-FLANGE

$8.49

$

In Stock, only 4 left!

29

Exmark 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 11

30

Exmark 116-0886

SPRING-EXTENSION

$149.99

$

In Stock, only 1 left!

31

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, Qty 8

32

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 16

33

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

34

Exmark 322-47

SCREW-HH

$2.49

$

In Stock, Qty 14

35

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 18

36

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

37

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

38

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 6

39

Exmark 135-2280

DECAL-HEIGHT OF CUT

$9.99

$

Usually ships in 3-6 days

40

Exmark 135-5337

PAD, KNEE

$13.99

$

Usually ships in 3-6 days

41

Exmark 142-2216

SCREW, 1/4-20 X 3/8 PH TORX

$6.99

$

Usually ships in 3-6 days

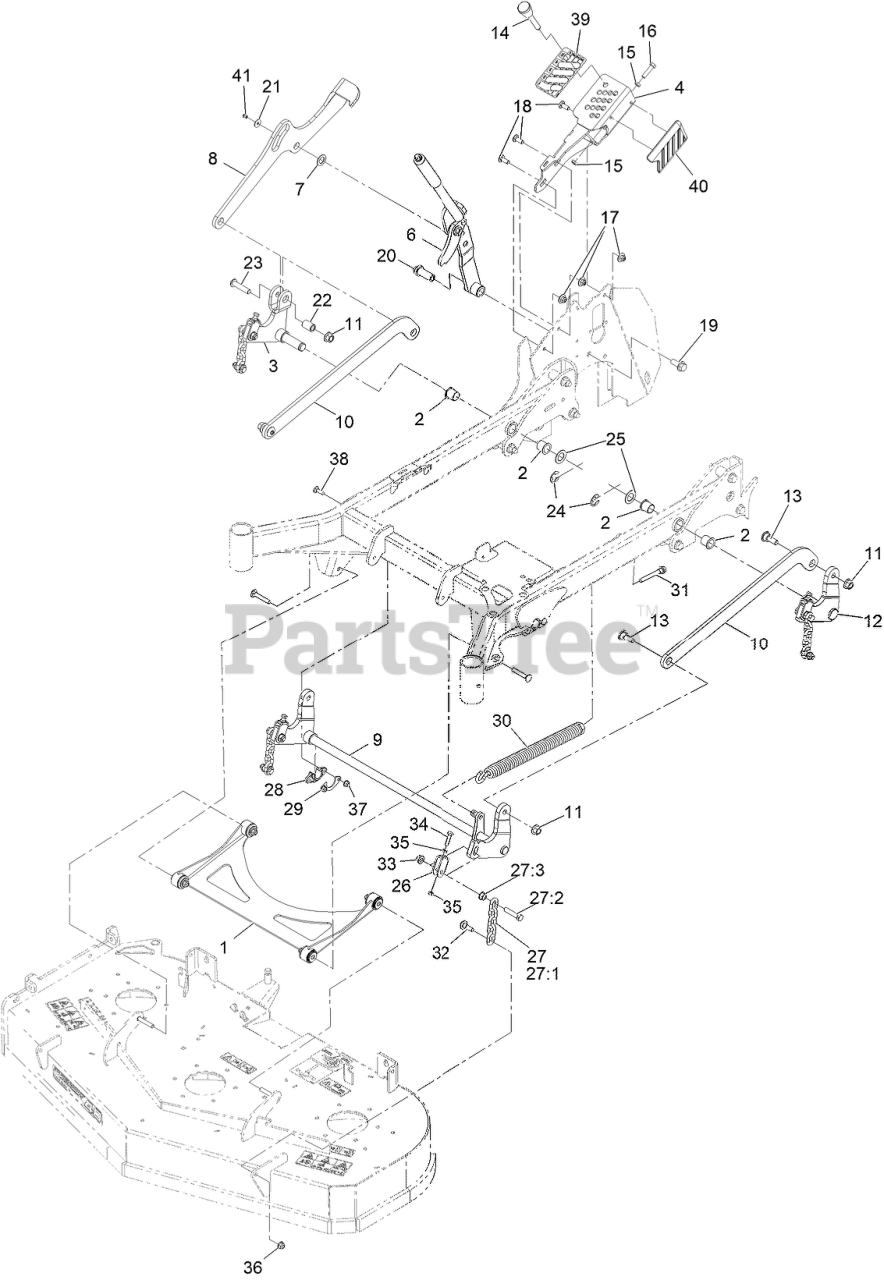

STS650AKC48400 - Exmark 48" Staris S-Series Stand-On Mower, Koh (SN: 408644346 - 411294211) (Rev A) (2021) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
