STS651GKA48400 - Exmark 48" Staris S-Series Stand-On Mower, Kaw (SN: 408644346 - 411294211) (Rev A) (2021) Fuel Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Kaw

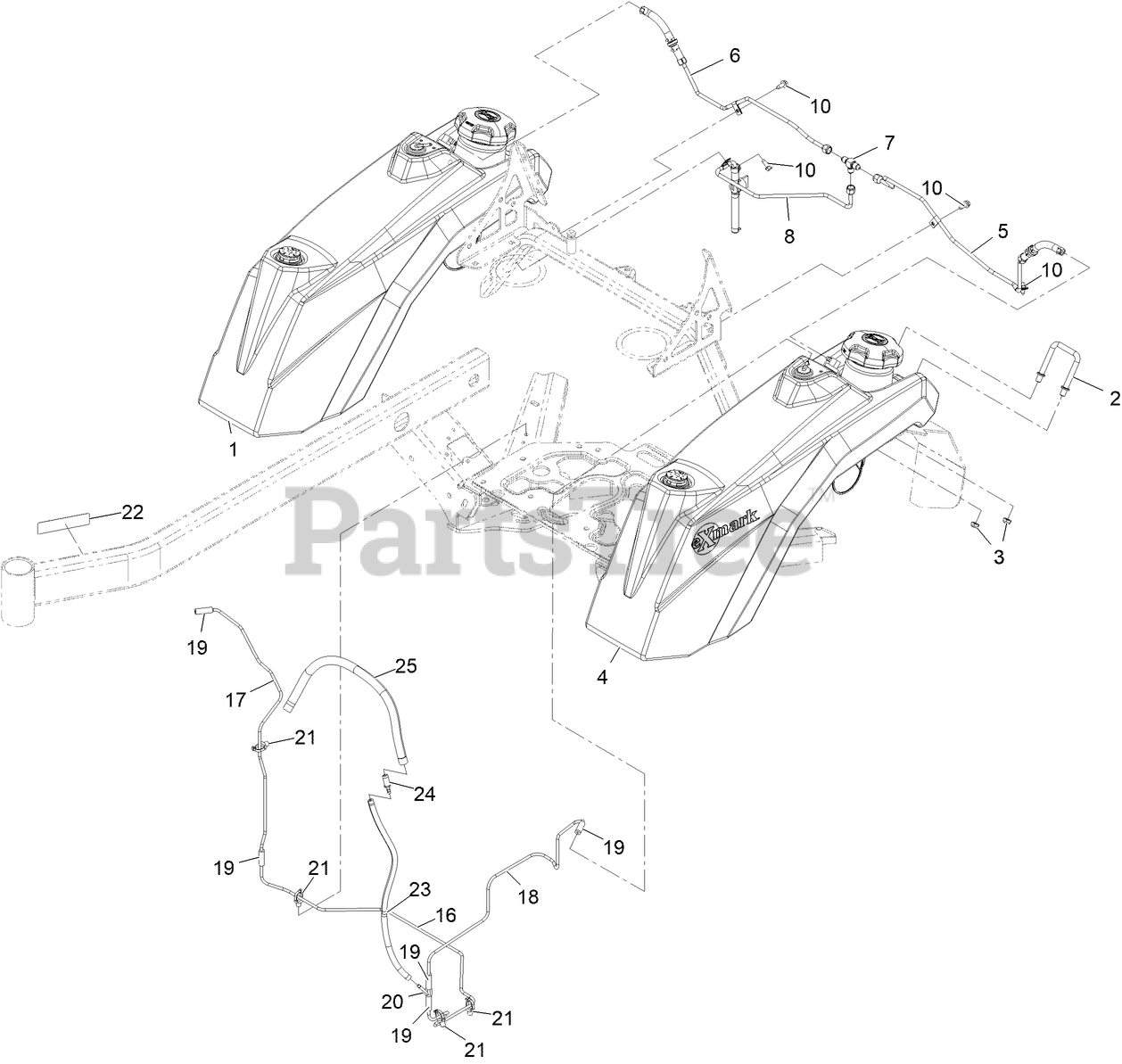

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-2227

ASM, RT FUEL TANK

$777.99

$

Usually ships in 3-6 days

0

2

Exmark 135-7299

CLAMP, TANK

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 2 left!

0

4

Exmark 135-2225

ASM, LT FUEL TANK

$777.99

$

Usually ships in 3-6 days

0

5

Exmark 142-3597

ASM, LEFT FUEL LINE

$108.99

$

In Stock, only 1 left!

0

6

Exmark 142-3598

ASM, RIGHT FUEL LINE

$108.99

$

Usually ships in 3-6 days

0

7

Exmark 135-2203

FITTING, 2603-4-4-4

$13.99

$

In Stock, only 1 left!

0

8

Exmark 142-3599

ASM, KAW FUEL LINE

$117.99

$

In Stock, only 1 left!

0

10

Exmark 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

16

Exmark 135-2219

LINE, VENT, MAIN

$66.99

$

Usually ships in 3-6 days

0

17

Exmark 135-2221

LINE, VENT, RIGHT

$54.99

$

Usually ships in 3-6 days

0

18

Exmark 135-7097

LINE, VENT, LEFT

$54.99

$

Usually ships in 3-6 days

0

19

Exmark 51-3216

HOSE-FUEL

$5.99

$

In Stock, only 3 left!

0

20

Exmark 135-2222

FITTING, 3/16" Y

$8.99

$

Usually ships in 3-6 days

0

21

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

22

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

23

Exmark 135-3950

HOSE, VENT

$20.99

$

Usually ships in 3-6 days

0

24

Exmark 98-2952

FITTING-STRAIGHT

$10.99

$

In Stock, only 2 left!

0

25

Exmark 116-5087

HOSE-FUEL

$22.99

$

In Stock, only 1 left!

0
