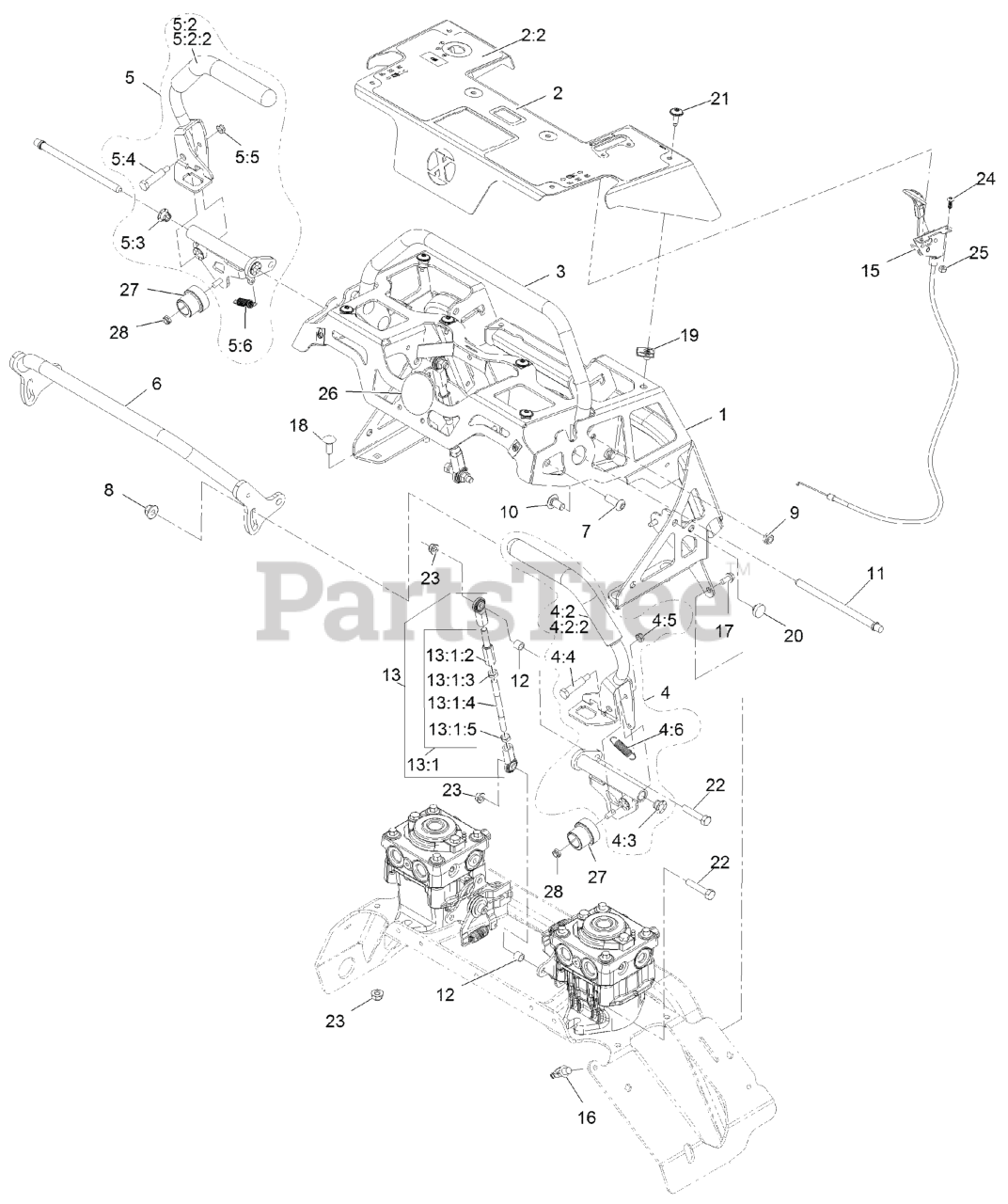

STS730AKC52400 - Exmark 52" Staris S-Series Stand-On Mower, Koh (SN: 404314159 - 406294344) (2019) > Parts Diagrams (24) > Controls Assembly

  • Title
135-4142

1

ASM, Control Tower W/Decal

Part# 135-4142

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $305.39

135-6767

2

ASM, Control Panel W/Decal

Part# 135-6767

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.95

135-6772

2:2

Decal-Control Panel EFI

Part# 135-6772

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.18

135-3430-03

3

Weld, Rear Ref Bar

Part# 135-3430-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.89

135-1304

4

ASM, Motion Control, Lt

Part# 135-1304

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.65

135-2546

4:2

ASM, Lt Control Lever W/ Grip

Part# 135-2546

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.40

135-3301

4:2:2

Grip, Drive Lever

Part# 135-3301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.71

135-6412

4:3

Bearing, Igus

Part# 135-6412

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.00

121-1229

4:4

BOLT-SHOULDER

Part# 121-1229

OEM Warranty Repair Part for Exmark

Not available

3296-56

4:5

NUT-LOCK, NI

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.61

114-0249

4:6

SPRING-EXTENSION

Part# 114-0249

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.11

135-1305

5

ASM, Motion Control, Rt

Part# 135-1305

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.65

135-2547

5:2

ASM, Rt Control Lever W/ Grip

Part# 135-2547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.40

135-3301

5:2:2

Grip, Drive Lever

Part# 135-3301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.71

135-6412

5:3

Bearing, Igus

Part# 135-6412

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.00

121-1229

5:4

BOLT-SHOULDER

Part# 121-1229

OEM Warranty Repair Part for Exmark

Not available

3296-56

5:5

NUT-LOCK, NI

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.61

114-0249

5:6

SPRING-EXTENSION

Part# 114-0249

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.11

135-3432-03

6

Weld, Front Ref Bar

Part# 135-3432-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.89

3274-94

7

SCREW-HSBH

Part# 3274-94

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.29

104-8301

8

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

3296-59

9

121-4600

Part# 3296-59 (Superseded to 121-4600)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

3231-21

10

SCREW-CARR

Part# 3231-21

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

135-1277

11

PIN, PIVOT

Part# 135-1277

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.67

1-633545

12

SPACER

Part# 1-633545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

135-7116

13

ASM, Linkage

Part# 135-7116

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.36

13:1

ASM, Motion Control Link

Part#

Note: Not serviced separately

Not available

116-4755

13:1:2

ROD-ADJUSTMENT

Part# 116-4755

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.69

3220-16

13:1:3

NUT-HEX JAM, LH

Part# 3220-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

135-1291

13:1:4

Link, Motion Control

Part# 135-1291

OEM Warranty Repair Part for Exmark

Not available

3220-3

13:1:5

NUT-HJ

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

135-4352

15

CABLE, THROTTLE

Part# 135-4352

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.46

32180-030

16

CLIP-TIE

Part# 32180-030

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.92

32144-10

17

SCREW-HWH

Part# 32144-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.98

3230-16

18

SCREW-CARR

Part# 3230-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.47

107069

19

CLIP

Part# 107069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.47

1-513658

20

BUMPER

Part# 1-513658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.17

135-3494

21

Screw, Torx

Part# 135-3494

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

322-8

22

SCREW-HH

Part# 322-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.69

104-8300

23

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

135-3176

24

SCREW, BHCS

Part# 135-3176

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.43

3296-2

25

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

135-2281

26

Decal-Cover

Part# 135-2281

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.55

126-1499

27

CAM

Part# 126-1499

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.45

3296-56

28

NUT-LOCK, NI

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.61
