STS730GKA60400 - Exmark 60" Staris S-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

60" Staris S-Series Stand-On Mower, Kaw

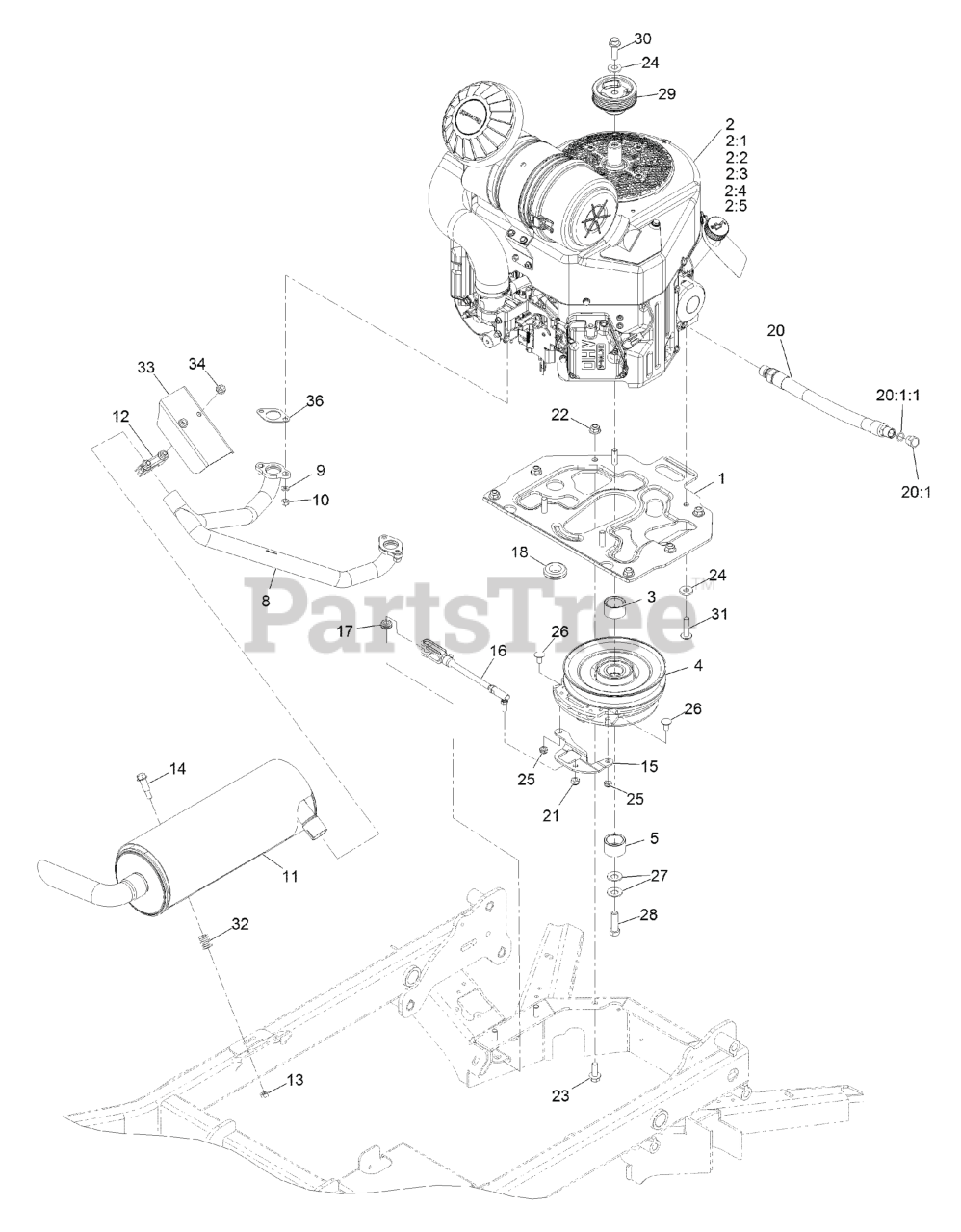

Engine Assembly Parts Diagram

  • Title

1

Exmark 135-1615-03

Plate, Engine

$181.99

$

Usually ships in 3-6 days

0

2

Engine, Kawasaki Fx730

Note: Not serviced separately

$

$

Not available

2:1

Kawasaki 49065-7007 Engine Oil Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

2:2

Kawasaki 49019-0027 Fuel Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

2:3

Kawasaki 92070-7004 Plug-Spark Bpr4ES

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

2:4

Kawasaki 11013-7045 Pre-Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

2:5

Kawasaki 11013-7044 Air Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

3

Exmark 135-1925

Spacer, Clutch

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 135-1307

Clutch
(Superseded to 142-3588)

$491.99

$

In Stock, only 1 left!

0

5

Exmark 135-1308

Spacer, Clutch

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 135-5094

Header, Kawaswaki

$137.99

$

Usually ships in 3-6 days

0

9

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

10

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

11

Exmark 135-5093

Muffler, 5"
(Superseded to 142-3577)

$324.99

$

In Stock, only 1 left!

0

12

Exmark 104-4090

CLAMP-MUFFLER

$23.99

$

Usually ships in 3-6 days

0

13

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 20+

0

14

Exmark 130-2344

Bolt-Shoulder
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 135-1589

Strap, Clutch

$14.99

$

Usually ships in 3-6 days

0

16

Exmark 126-0620

ASM, CLUTCH ANCHOR

$62.99

$

In Stock, only 3 left!

0

17

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 2 left!

0

18

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$36.99

$

In Stock, Qty 7

0

20:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

20:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 10

0

22

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

26

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 19

0

27

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

28

Exmark 87-2080

BOLT-HEX, TAP

$9.49

$

In Stock, only 1 left!

0

29

Exmark 135-1198

PULLEY, CRANK

$39.99

$

Usually ships in 3-6 days

0

30

Exmark 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

31

Exmark 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 135-6667

135-6667

$2.99

$

In Stock, only 2 left!

0

33

Exmark 135-6366

135-6366

$28.99

$

Usually ships in 3-6 days

0

34

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 20+

0

36

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0
