STS730GKA60400 - Exmark 60" Staris S-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (2019) Platform Assembly Parts Diagram

60" Staris S-Series Stand-On Mower, Kaw

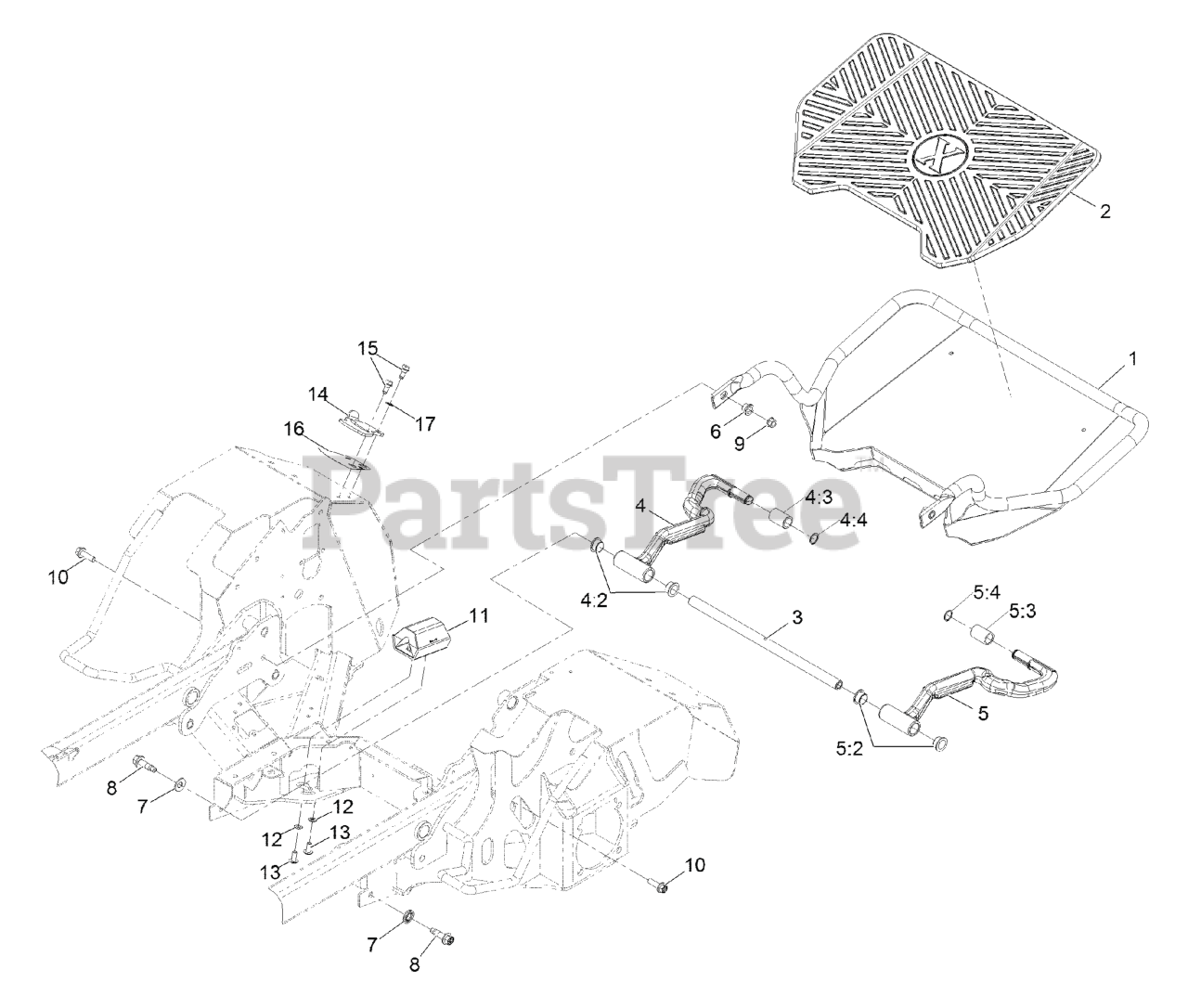

Platform Assembly Parts Diagram

  • Title

1

Exmark 135-1264-03

WELD, PLATFORM

$365.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1911

MAT, PLATFORM
(Superseded to 142-3129)

$67.99

$

Usually ships in 3-6 days

0

3

Exmark 135-1336

SHAFT, CROSS

$51.99

$

Usually ships in 3-6 days

0

4

Exmark 135-2237

ASM, RT ARM W/ BUSHINGS

$137.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

4:3

Exmark 135-6438

Bushing, Sleeve

$9.99

$

In Stock, only 2 left!

0

4:4

Exmark 32120-72

RING-SNAP

$2.49

$

In Stock, Qty 7

0

5

Exmark 135-2236

ASM, LT ARM W/ BUSHINGS

$137.99

$

Usually ships in 3-6 days

0

5:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

5:3

Exmark 135-6438

Bushing, Sleeve

$9.99

$

In Stock, only 2 left!

0

5:4

Exmark 32120-72

RING-SNAP

$2.49

$

In Stock, Qty 7

0

6

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, Qty 5

0

7

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

8

Exmark 135-7001

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

9

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Exmark 135-4712

SCREW, HHF

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 135-3993

BUMPER

$52.99

$

Usually ships in 3-6 days

0

12

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

13

Exmark 126-6268

SCREW-TORX

$1.99

$

In Stock, only 2 left!

0

14

Exmark 135-4601-03

LATCH, PLATFORM

$21.99

$

Usually ships in 3-6 days

0

15

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

16

Exmark 135-5206

DECAL-LATCH LOCK

$8.49

$

Usually ships in 3-6 days

0

17

Exmark 135-6584

WASHER, PLASTIC

$1.49

$

Usually ships in 3-6 days

0
