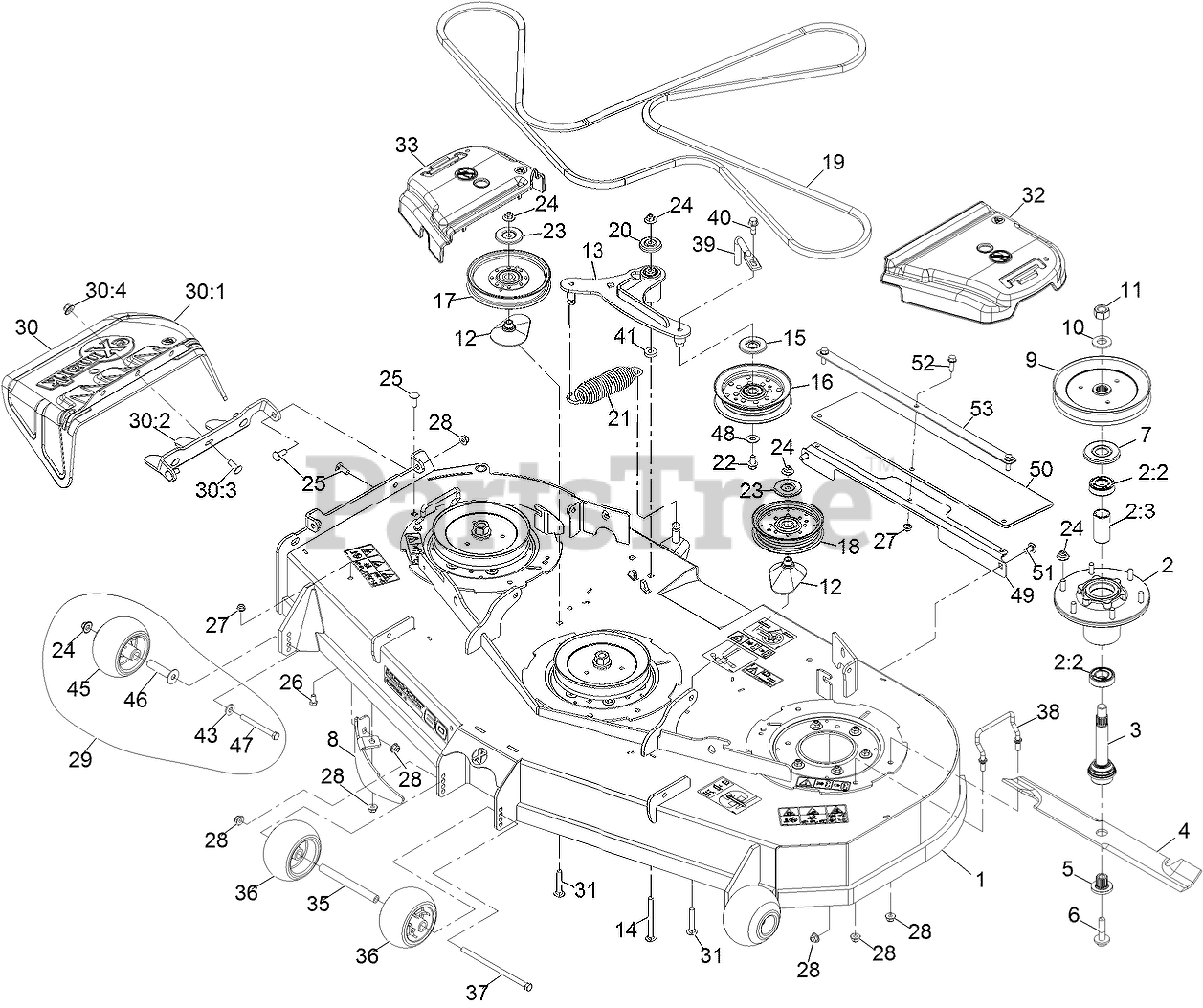

STS730GKA60400 - Exmark 60" Staris S-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) > Parts Diagrams (24) > Deck Assembly

  • Title
142-2416

1

ASM, 60" Deck W/ Decals

Part# 142-2416

OEM Warranty Repair Part for Exmark

Currently unavailable

116-3344

2

ASM-CUTTER HSG WITH BEARINGS

Part# 116-3344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $123.55

116-0720

2:2

BEARING-BALL

Part# 116-0720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.90

116-3312

2:3

SPACER-BEARING

Part# 116-3312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

116-3341

3

ASM-SPINDLE AND SEAL

Part# 116-3341

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.47

103-6388

4

103-6388-S

Part# 103-6388 (Superseded to 103-6388-S)

Note: Optional Equipment

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.13

103-6393

4

103-6393-S

Part# 103-6393 (Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.24

103-6383

4

103-6383-S

Part# 103-6383 (Superseded to 103-6383-S)

Note: Optional Equipment

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.68

103-6403

4

103-6403-S

Part# 103-6403 (Superseded to 103-6403-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.46

116-5174

4

Blade-Extreme 2, 20.50"

Part# 116-5174

Note: Optional Equipment

OEM Warranty Repair Part for Exmark

Currently unavailable

103-3037

5

BUSHING,SPLINED

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

109-9220

6

SCREW,SEMS 1/2-20 X 2.19

Part# 109-9220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

116-1286

7

GUARD,BEARING TOP .989

Part# 116-1286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

116-5614-01

8

DOGLEG - LZ60

Part# 116-5614-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.47

116-0676

9

SHEAVE,BLADE DRIVE 7.25

Part# 116-0676

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.60

103-2802

10

WASHER

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

116-7306

11

NUT-HEX

Part# 116-7306

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

109-2872

12

SPACER-PULLEY

Part# 109-2872

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.99

135-1937

13

ASM, Deck Idler

Part# 135-1937

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.68

3231-37

14

SCREW-CARR

Part# 3231-37

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.78

126-9195

15

SHIELD-GUARD, DUST

Part# 126-9195

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

126-9196

16

IDLER-PULLEY, FLAT

Part# 126-9196

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.48

126-7685

17

IDLER-PULLEY

Part# 126-7685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.72

126-9187

18

PULLEY-IDLER, FLAT

Part# 126-9187

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.46

135-4711

19

BELT, 5V

Part# 135-4711

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $138.25

103-2916

20

GUARD-TOP

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

116-6317

21

SPRING-EXTENSION

Part# 116-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.55

110-1718

22

SCREW-HHF

Part# 110-1718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.58

126-8043

23

SHIELD-DUST

Part# 126-8043

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.65

109-6658

24

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3231-22

25

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

322-2

26

SCREW-HH

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

104-8300

27

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

104-8301

28

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

116-9981

29

KIT, ANTI-SCALP ROLLER

Part# 116-9981

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.36

109-7188

30

ASM,DISCHARGE CHUTE

Part# 109-7188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $77.31

109-2738

30:1

CHUTE,DISCHARGE

Part# 109-2738

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.10

109-8675-01

30:2

BRACKET,DISCHARGE CHUTE

Part# 109-8675-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.29

3231-22

30:3

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

109-6658

30:4

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3231-7

31

Bolt-Carriage 3/8-16 X 2 1/4

Part# 3231-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.57

109-6936

32

COVER-BELT, LH

Part# 109-6936

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.64

109-6935

33

COVER-BELT, RH

Part# 109-6935

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.64

98-5967

35

SPACER-WHEEL

Part# 98-5967

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.43

1-603299

36

ROLLER-SCALP, ANTI

Part# 1-603299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.57

108-5388

37

SCREW-HH

Part# 108-5388

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.64

135-7735

38

Wireform, Belt Cover

Part# 135-7735

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.34

135-5023

39

Guide, Belt

Part# 135-5023

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.87

126-1680

40

SCREW-HFH

Part# 126-1680

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.19

62-6660

41

SPACER

Part# 62-6660

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

98-5975

43

WASHER-BELLEVILLE

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

103-8415

45

ROLLER-SCALP, ANTI

Part# 103-8415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.57

116-8131

46

AXLE, ROLLER

Part# 116-8131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.88

116-9362

47

SCREW-HH 3/8-16 X 3 3/4 GR 8

Part# 116-9362

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.93

3256-4

48

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

135-6287-03

49

Brkt, Heat Deflector

Part# 135-6287-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.16

135-6358

50

Shield, Heat

Part# 135-6358

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.32

3231-21

51

SCREW-CARR

Part# 3231-21

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

3234-29

52

SCREW-HHF

Part# 3234-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.25

135-7122-03

53

Brkt-Heat Deflector, Top

Part# 135-7122-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.58
