STT-29DFI - Scag Turf Tiger Zero-Turn Mower, 29hp Kawasaki (SN: F6500001 - F6599999) STT Fuel System - EPA Phase 2 Parts Diagram

Turf Tiger Zero-Turn Mower, 29hp Kawasaki

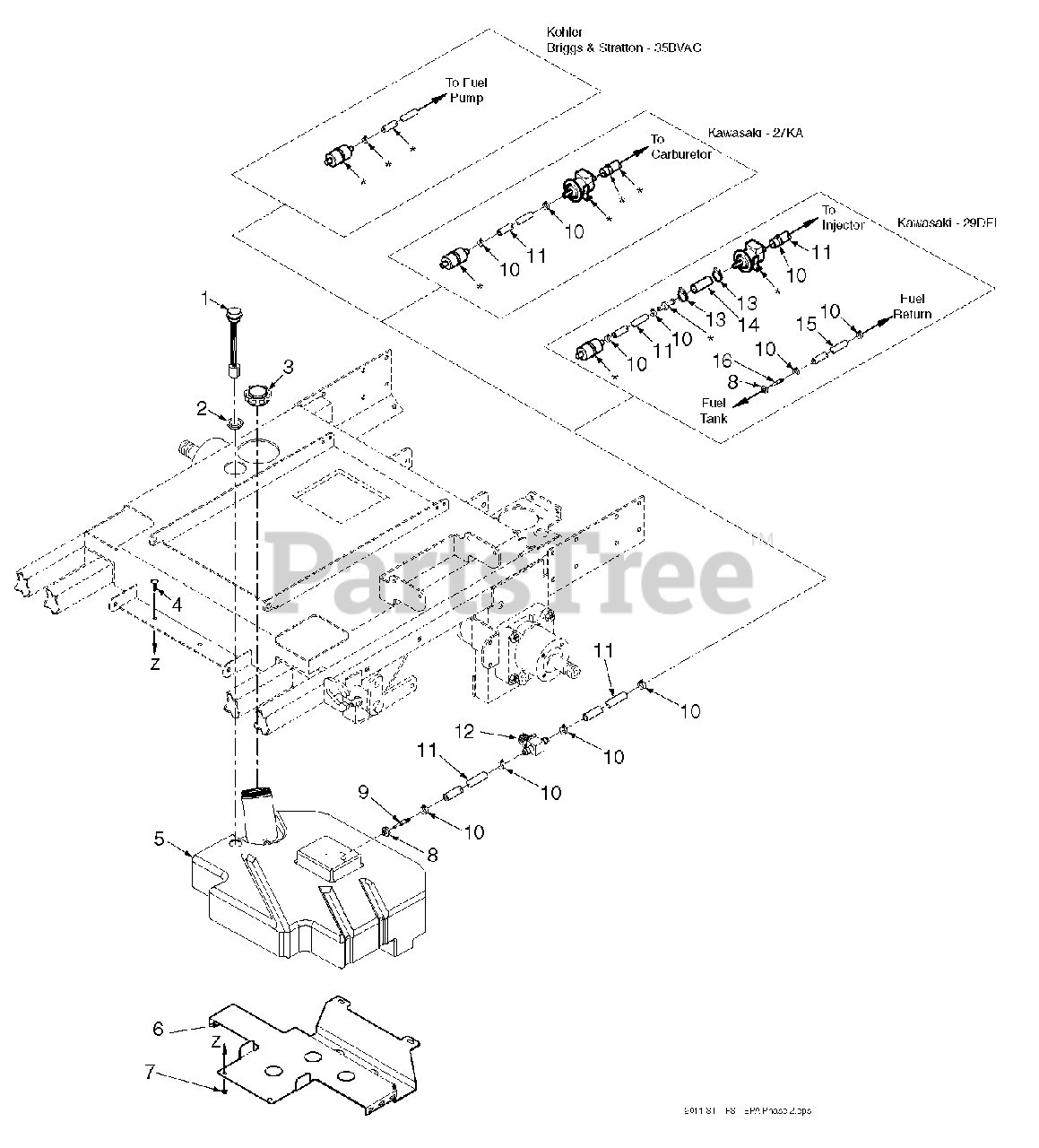

STT Fuel System - EPA Phase 2 Parts Diagram

  • Title

1

Scag 484251

Fuel Gauge Assembly

$93.99

$

Usually ships in 2-12 days

0

2

Scag 484242

Seal, Fuel Gauge

$15.99

$

In Stock, only 2 left!

0

3

Scag 483792

Fuel Cap

$27.99

$

In Stock, Qty 8

0

4

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

5

Scag 462301

Fuel Tank Assembly - STT

Note: (Incl. # 1, 2, 8, 9)

$341.99

$

Usually ships in 2-12 days

0

5

Scag 462302

Fuel Tank Assembly - STT-29DFI

Note: (Incl. # 1, 2, 8, 9, 17, 18)

$377.99

$

Usually ships in 2-12 days

0

6

Scag 425517

Support Bracket, Fuel Tank

$123.99

$

Usually ships in 2-12 days

0

7

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

8

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

9

Scag 483749

Hose Fitting

$12.99

$

Usually ships in 2-12 days

0

10

Scag 48059-01

Clamp, Fuel Hose 1/4" I.D.

Note: (27CH, 35BVAC, 29DFI Fuel Return Hose)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48059-04

Clamp, Fuel Hose 5/16" I.D.

Note: (27KA, 29DFI)

$0.99

$

Usually ships in 2-12 days

0

11

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm

Note: (27CH, 35BVAC), Order by Inch

$0.99

$

In Stock, Qty 20+

0

11

Scag 483620

Fuel Hose, 5/16" I.D. Non-Perm

Note: (27KA, 29DFI), Order by Inch

$0.99

$

In Stock, Qty 20+

0

12

Scag 481308

Valve, Fuel Shut-Off

Note: (27KA, 29DFI)

$42.99

$

Usually ships in 2-12 days

0

12

Scag 481753

Valve, Fuel Shut-Off

Note: (27CH, 35BVAC)

$42.99

$

Usually ships in 2-12 days

0

13

Scag 48136-05

Clamp, .87" Max. Dia

$3.99

$

In Stock, only 2 left!

0

14

Scag 483622

Fuel Hose, 1/2" I.D. Non-Perm

Note: Order by Inch

$0.99

$

In Stock, Qty 20+

0

15

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm

Note: (29DFI Fuel Return), Order by Inch

$0.99

$

In Stock, Qty 20+

0

16

Scag 482703

Return Fitting, Straight

$28.99

$

Usually ships in 2-12 days

0
