STT-31BSD-SS - Scag Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs (SN: B7700001 - B7799999) STT-BSD Roll-Over Protection System Parts Diagram

Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs

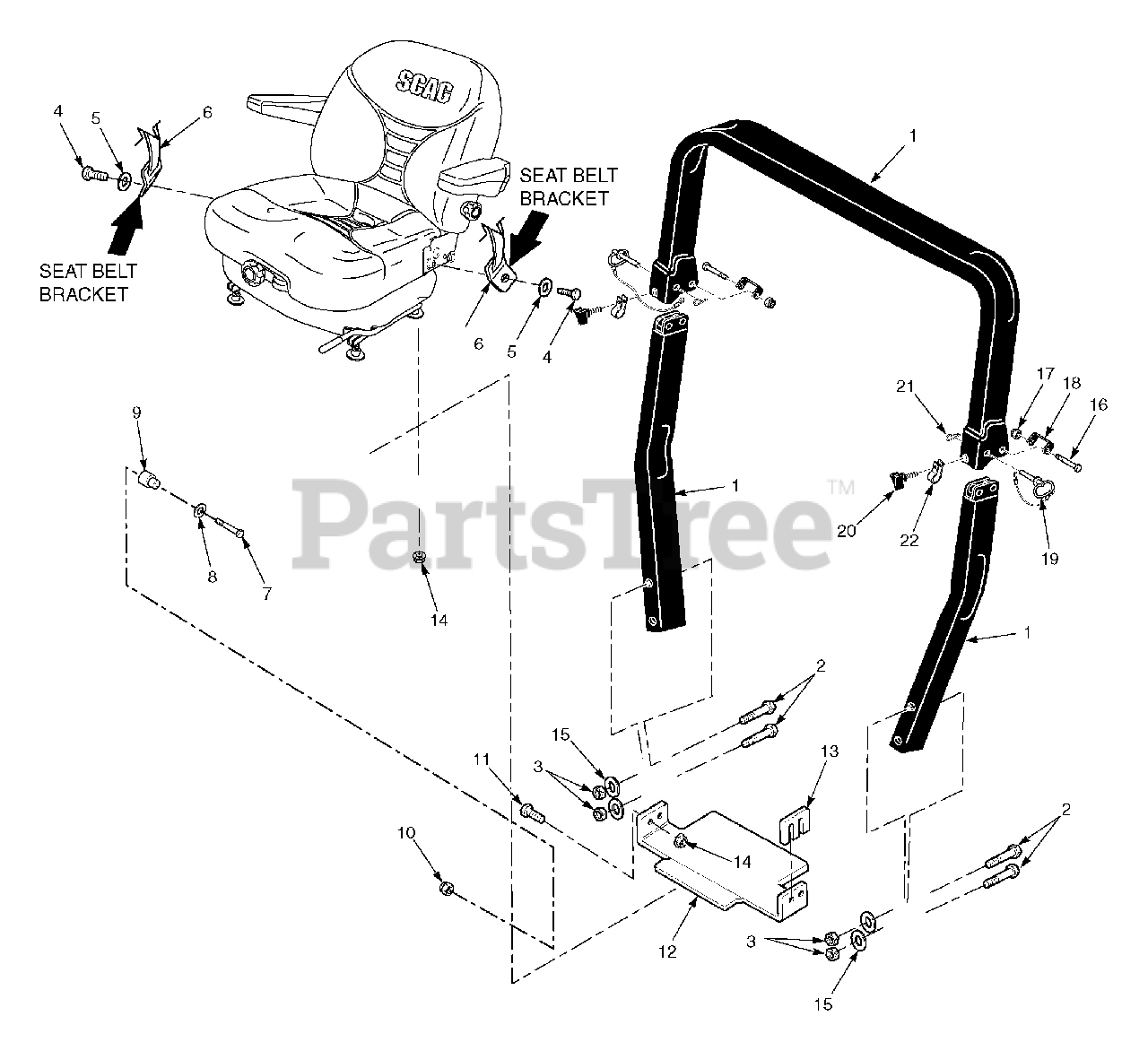

STT-BSD Roll-Over Protection System Parts Diagram

  • Title

1

Scag 9514

STT, ROPS Accessory

Note: (incl. all items below)

$407.99

$

Usually ships in 2-12 days

0

2

Scag 04001-82

Bolt, Hex Head 1/2-13 x 4-1/2"

$6.49

$

In Stock, only 4 left!

0

3

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 14

0

4

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 9

0

5

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 5

0

6

Scag 483150

Seat Belt

$173.99

$

Usually ships in 2-12 days

0

7

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 19

0

9

Scag 43606

Sleeve, Seat Base Mounting

$7.99

$

Usually ships in 2-12 days

0

10

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 11

0

12

Scag 461821

Bracket, Seat Hold Down with Decal

$54.99

$

Usually ships in 2-12 days

0

13

Scag 04030-05

Lockwasher, 7/16

$0.99

$

In Stock, only 2 left!

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 9

0

16

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 2 left!

0

17

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 14

0

18

Scag 424407

Bracket, Stop

$32.99

$

Usually ships in 2-12 days

0

19

Scag 483262

Pin
(Superseded to 484168)

$27.99

$

In Stock, only 2 left!

0

20

Scag 483301

Thumb Screw, 5/16-18 NC x 3-4"

$7.99

$

In Stock, Qty 12

0

21

Scag 04062-06

Hair Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

22

Scag 483265

Clamp
(Superseded to 48030-19)

$1.99

$

Usually ships in 2-12 days

0
