STT-31EFI-SS - Scag Turf Tiger Zero-Turn Mower, 31hp Kohler (SN: F6600001 - F6699999) Engine & Attaching Parts - 31HP-EFI Kohler Parts Diagram

Turf Tiger Zero-Turn Mower, 31hp Kohler

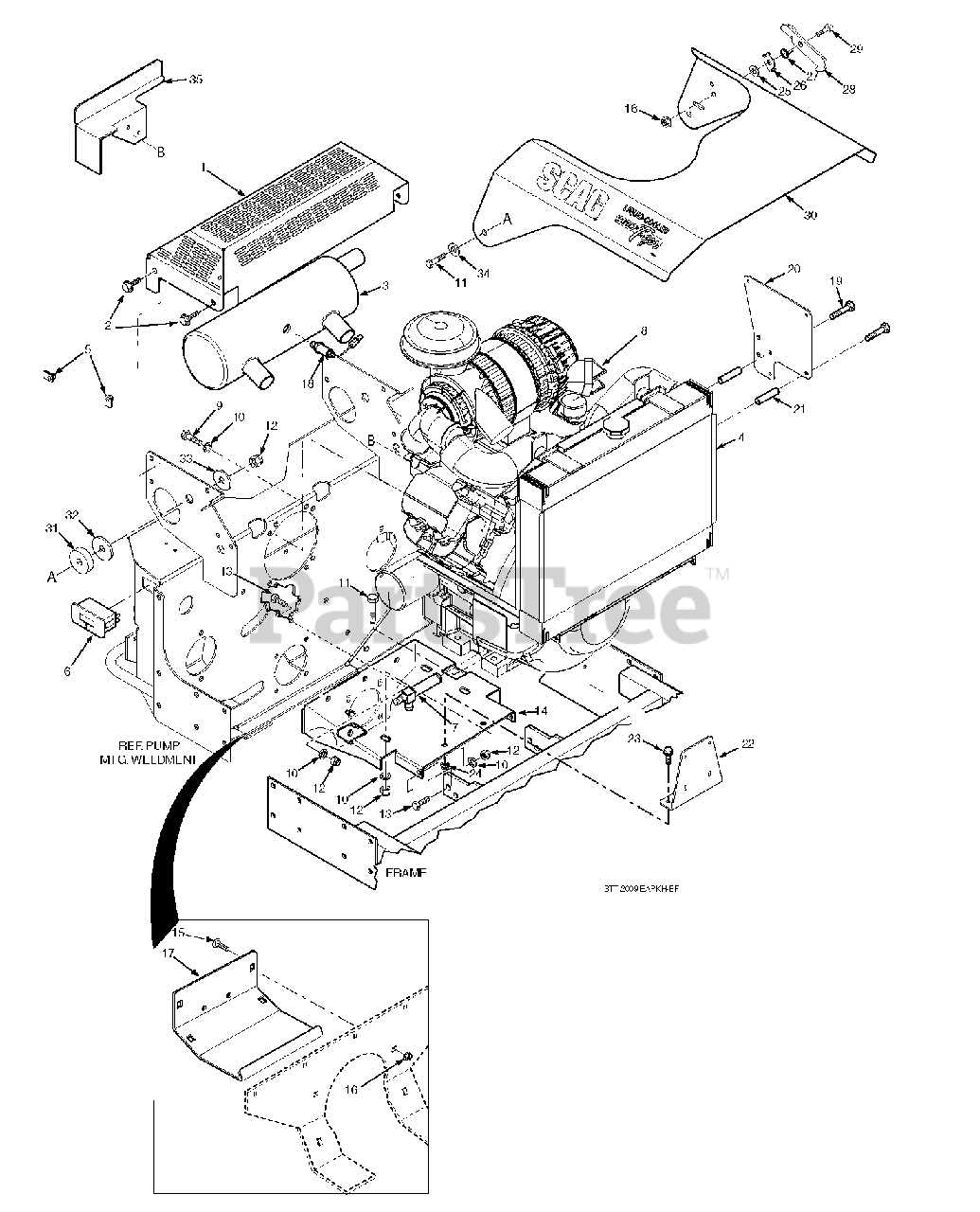

Engine & Attaching Parts - 31HP-EFI Kohler Parts Diagram

  • Title

1

Scag 424910

Muffler Guard

Note: (Kohler)

$168.99

$

Usually ships in 2-12 days

0

2

Scag 04017-05

Screw, Hex Serr. Flng. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Muffler

Note: (Available only through Kohler) Available through the individual engine manufacturer.

$

$

Not available

4

Scag 451997

Screen Weldment, Radiator
(Superseded to 452289)

Note: (Kohler)

$162.99

$

Usually ships in 2-12 days

0

5

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 19

0

6

Scag 483355

Hour Meter
(Superseded to 484565)

$63.99

$

In Stock, only 1 left!

0

7

Scag 482510

Oil Drain Extension

$37.99

$

Usually ships in 2-12 days

0

8

Scag 483687

Engine, Kohler 31HP-EFI Aegis

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

9

Scag 04001-19

Bolt, Hex Hd. 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-21

Bolt, Hex Hd. 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-32

Bolt, Hex Hd. 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

14

Scag 451454

Plate, Engine Mounting

$241.99

$

Usually ships in 2-12 days

0

15

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 15

0

16

Scag 04019-03

Nut, Hex Serr. Flng. 5/16-18

$0.99

$

In Stock, Qty 16

0

17

Scag 424691

Rear Cover

$58.99

$

Usually ships in 2-12 days

0

18

o2 Sensor

Note: (Available through Kohler Only) Available through the individual engine manufacturer.

$

$

Not available

19

Scag 04002-23

Bolt, Hex Hd. M6-1.0 X 90mm

$0.99

$

Usually ships in 2-12 days

0

20

Scag 424888

Mounting Bracket, ECU

Note: Kohler EFI

$39.99

$

Usually ships in 2-12 days

0

21

Scag 43774

Spacer, ECU Mounting

$19.99

$

Usually ships in 2-12 days

0

22

Scag 424889

Mounting Bracket, Fuel Pump

Note: Kohler EFI

$25.99

$

Usually ships in 2-12 days

0

23

Scag 04017-05

Bolt, Hex Hd. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-02

Nut, Serr. Flng. 1/4-20

$0.99

$

In Stock, Qty 20+

0

25

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, Qty 15

0

26

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 4 left!

0

27

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

28

Scag 424633

Latch, Hood

$12.99

$

In Stock, Qty 6

0

29

Scag 04009-07

Bolt, Shoulder 5/16-18 x 1/2"

$4.49

$

In Stock, Qty 8

0

30

Scag 462157

Hood Assembly w/Decals
(Superseded to 462517)

Note: (Incl. 16, 25, 26, 27, 28, 29)

$247.99

$

Usually ships in 2-12 days

0

31

Scag 43740

Spacer, Hood

$29.99

$

Usually ships in 2-12 days

0

32

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

33

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

34

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

35

Scag 425141

Heatshield, Throttle Cable

$60.99

$

Usually ships in 2-12 days

0
