STT-35BV-SS - Scag Turf Tiger Zero-Turn Mower, 35hp Vanguard (SN: B7300001 - B7399999) Electrical System (27HP Kawasaki, 35BV Briggs & Stratton) Parts Diagram

Turf Tiger Zero-Turn Mower, 35hp Vanguard

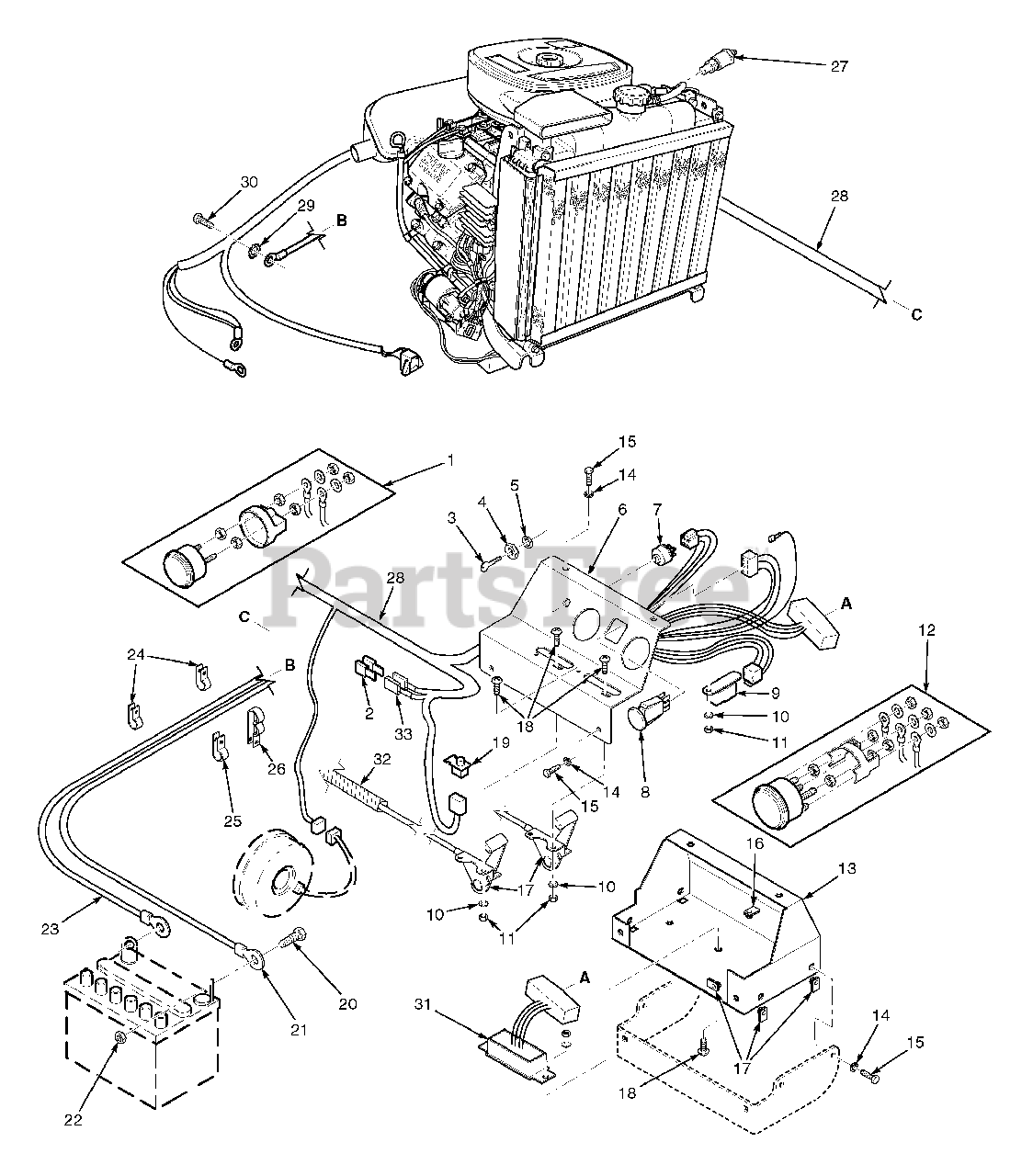

Electrical System (27HP Kawasaki, 35BV Briggs & Stratton) Parts Diagram

  • Title
1
Usually ships in 1 day

$

$24.71

0

2

Scag Part# 48298

Fuse, 20 AMP
Usually ships in 1 day

$

$3.30

0

3

Scag Part# 48017-02

Key & Ring Assembly
Usually ships in 1 day

$

$3.49

0

4

Scag Part# 48017-04

Nut, Hex 5/8-32
Usually ships in 1 day

$

$1.32

0

5

Scag Part# 48017-03

Lockwasher, 5/8" Internal
Usually ships in 1 day

$

$0.42

0

6

Scag Part# 461916

Instrument Panel, Top w/Decals
(Superseded to 462336)
Usually ships in 5 to 10 days

$

$78.80

0

7

Scag Part# 48798

Key Switch
Usually ships in 1 day

$

$23.90

0

8

Scag Part# 483162

Switch, PTO
Usually ships in 1 day

$

$70.90

0

Usually ships in 1 day

$

$18.20

0

10

Scag Part# 04031-01

Lockwasher, #10 External Tooth
Usually ships in 1 day

$

$0.05

0

11

Scag Part# 04020-01

Nut, Hex #10-32
Usually ships in 1 day

$

$0.03

0

12

Scag Part# 481183

Water Temp. Gauge
Usually ships in 5 to 10 days

$

$120.63

0

13

Scag Part# 451081

Base, Instrument Panel
Usually ships in 5 to 10 days

$

$99.07

0

14

Scag Part# 04030-02

Lockwasher, 1/4"
Usually ships in 1 day

$

$0.05

0

15

Scag Part# 04001-01

Bolt, Hex Head 1/4-20 x 3/4"
Usually ships in 1 day

$

$0.15

0

16

Scag Part# 04110-01

U-Nut, 1/4-20
Usually ships in 1 day

$

$0.98

0

17

Scag Part# 481662

Throttle And Choke Controls
Usually ships in 1 day

$

$31.47

0

18

Scag Part# 04010-01

Screw, Phillips Washer Head #10-32 x 1/2"
Usually ships in 1 day

$

$0.42

0

19

Scag Part# 481638

Switch, Interlock-Seat
Usually ships in 1 day

$

$13.43

0

20

Scag Part# 04001-44

Bolt, Hex Head 1/4-20 x 1/2"
Usually ships in 1 day

$

$0.08

0

21

Scag Part# 48029-06

Cable, Battery - Red
Usually ships in 5 to 10 days

$

$11.02

0

Scag Part# 48029-22

Cable, Battery - Red

Note: (35BV Only)

Usually ships in 5 to 10 days

$

$18.48

0

22

Scag Part# 04020-02

Nut, Hex 1/4-20
Usually ships in 1 day

$

$0.05

0

23

Scag Part# 48029-11

Cable, Battery - Black
Usually ships in 5 to 10 days

$

$12.71

0

24

Scag Part# 48030-09

Clamp, Cable 1/2" ID.
Usually ships in 1 day

$

$1.01

0

25

Scag Part# 48136-05

Clamp, Cable 3/4" ID.
Usually ships in 5 to 10 days

$

$3.12

0

26

Scag Part# 48030-11

Clamp, Cable
Usually ships in 5 to 10 days

$

$1.77

0

27

Scag Part# 481670

Sending Unit, Water Temp.
Usually ships in 5 to 10 days

$

$84.72

0

28

Scag Part# 483054

Wire Harness, STT Kawasaki Liquid Cooled
(Superseded to 484656)
Usually ships in 5 to 10 days

$

$482.62

0

Scag Part# 483145

Wire Harness, STT Briggs & Stratton Liquid Cooled
(Superseded to 483624)
Usually ships in 5 to 10 days

$

$404.72

0

29

Scag Part# 04031-03

Lockwasher, 5/16" External Tooth
Usually ships in 5 to 10 days

$

$0.19

0

30

Scag Part# 04002-12

Bolt, Hex Head M8-1.25 x 20
Usually ships in 1 day

$

$0.65

0

31

Scag Part# 483029

Electronic Module
Usually ships in 1 day

$

$118.23

0

32

Scag Part# 481945-01

Heatshield, Flexible
(Superseded to 481945)
Usually ships in 5 to 10 days

$

$0.19

0

33

Scag Part# 48430

Fuse Holder w/Fuse and Connector
Usually ships in 1 day

$

$13.06

0

Scag Part# 482588

Clip, Fuse Holder
Usually ships in 5 to 10 days

$

$1.55

0
