STT-35BV-SS - Scag Turf Tiger Zero-Turn Mower, 35hp Vanguard (SN: B7300001 - B7399999)

Turf Tiger Zero-Turn Mower, 35hp Vanguard

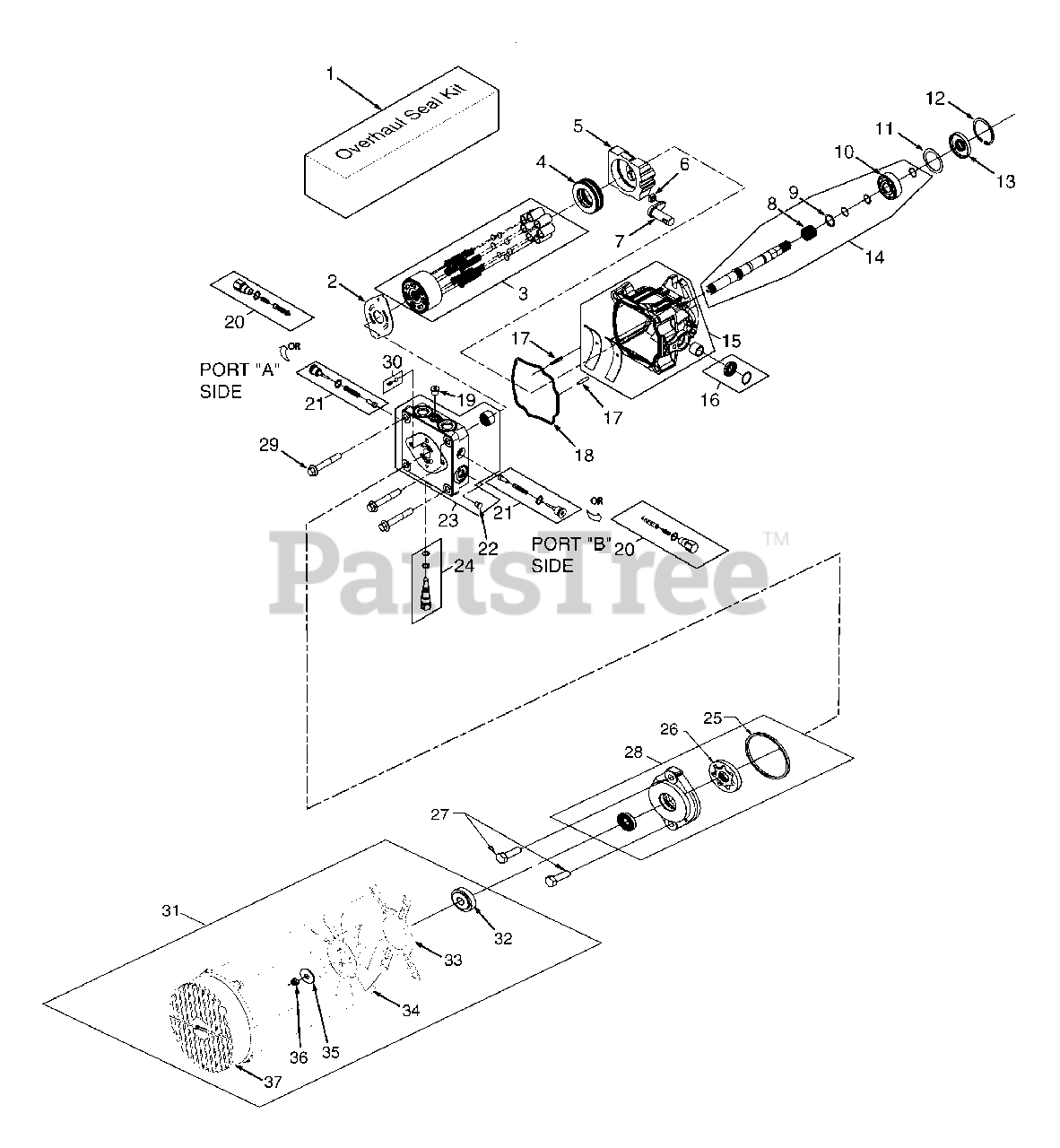

STT-35BV-SS - Scag Turf Tiger Zero-Turn Mower, 35hp Vanguard (SN: B7300001 - B7399999) > Parts Diagrams (13) > Hydraulic Pump Assembly With Cooling Fan (29DFI, 35BVAC, 35BV ONLY) BDP-16A

  • Title
HG70740

1

Overhaul Seal Kit

Part# HG70740

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.33

HG51455

2

Valve Plate

Part# HG51455 (Superseded to HG52371)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.76

HG70735

3

Cylinder Block Kit - 16cc

Part# HG70735

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $108.66

HG51462

4

Thrust Ball Bearing Assembly

Part# HG51462

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.72

HG51436

5

Variable Swashplate

Part# HG51436

OEM Warranty Repair Part for Scag

Not available

HG2000015

6

Slot Guide

Part# HG2000015

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.36

HG2000014

7

Trunnion Arm

Part# HG2000014

OEM Warranty Repair Part for Scag

Not available

HG2000025

8

Block Spring

Part# HG2000025

OEM Warranty Repair Part for Scag

Not available

HG2000024

9

Block Thrust Washer

Part# HG2000024

OEM Warranty Repair Part for Scag

Not available

HG2000032

10

Shaft Ball Bearing

Part# HG2000032

OEM Warranty Repair Part for Scag

Not available

HG2000023

11

Spacer

Part# HG2000023

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.75

HG2000038

12

Retaining Ring

Part# HG2000038

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.29

HG51092

13

Seal

Part# HG51092

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.75

HG70578

14

Kit, Pump Shaft (keyed thru taper)

Part# HG70578

OEM Warranty Repair Part for Scag

Currently unavailable

HG70738

15

Housing Kit

Part# HG70738

OEM Warranty Repair Part for Scag

Not available

HG70739

16

Trunnion Seal Kit

Part# HG70739

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.40

HG50641

17

Pin

Part# HG50641

OEM Warranty Repair Part for Scag

Not available

HG51437

18

O-Ring

Part# HG51437

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $15.35

HG9005110-7500

19

Straight Thread Plug

Part# HG9005110-7500

OEM Warranty Repair Part for Scag

Not available

HG70743

20

Shock Valve Kit (.031 Orifice)

Part# HG70743

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $96.27

HG70742

21

Shock Valve Kit (.024 Orifice)

Part# HG70742

OEM Warranty Repair Part for Scag

Not available

HG9005200-7500

22

Straight Thread Plug

Part# HG9005200-7500

OEM Warranty Repair Part for Scag

Not available

HG70736

23

End Cap Kit

Part# HG70736

OEM Warranty Repair Part for Scag

Not available

HG2513030

24

Bypass Valve Kit

Part# HG2513030

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.44

HG9004100-1430

25

O-Ring

Part# HG9004100-1430

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $1.63

HG50406

26

Gerotor Assembly (.19 cu.in./rev.)

Part# HG50406

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $74.70

HG50173

27

Socket Head Cap Screw (M8 x 1.25-25mm)

Part# HG50173

OEM Warranty Repair Part for Scag

Not available

HG70924

28

Charge Pump Kit (.19 STD. Splined)

Part# HG70924

OEM Warranty Repair Part for Scag

Not available

HG51457

29

Hex Screw, Flanged Head (M10 x 1.50-65mm)

Part# HG51457

OEM Warranty Repair Part for Scag

Not available

HG70402

30

Charge Relief Kit

Part# HG70402

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.49

HG70916

31

Fan Kit

Part# HG70916

Note: (incl. items 32, 33, 34, 35, 36, 37)

OEM Warranty Repair Part for Scag

Not available

HG51348

32

Hub

Part# HG51348

OEM Warranty Repair Part for Scag

Not available

HG52016

33

Bracket, Shroud

Part# HG52016

OEM Warranty Repair Part for Scag

Not available

HG52014

34

Fan

Part# HG52014

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.62

HG51389

35

Washer

Part# HG51389

OEM Warranty Repair Part for Scag

Not available

HG50108

36

Nut

Part# HG50108

OEM Warranty Repair Part for Scag

Not available

HG52029

37

Shroud

Part# HG52029 (Superseded to HG52059)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.23
