STT61A-25CH - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler (SN: 7730001 - 7739999)

Turf Tiger 61" Zero-Turn Mower, 25hp Kohler

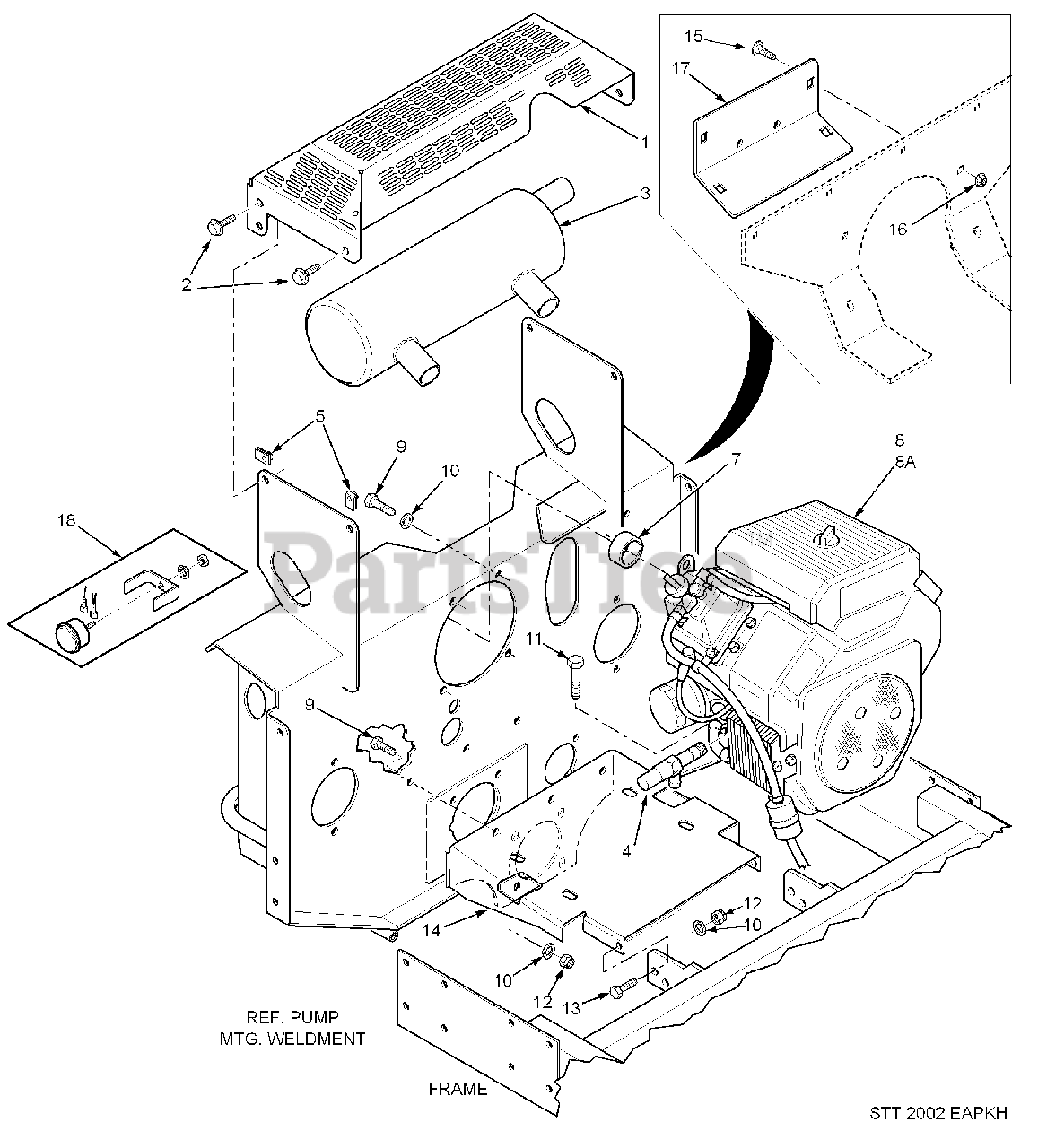

STT61A-25CH - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler (SN: 7730001 - 7739999) > Parts Diagrams (12) > Engine And Attaching Parts - Kohler

  • Title
422593

1

Muffler Guard

Part# 422593 (Superseded to 424910)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $137.60

04017-05

2

Screw, Hex Serrated Flange 1/4-20 x 3/4"

Part# 04017-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.40

3

Muffler, Part Of Engine

Part#

Note: (Available only through Kohler) Common hardware which should be purchased locally. All bolts rade 5 plated, all other fasteners zinc plated.

Not available

482510

4

Oil Drain Extension

Part# 482510

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $32.47

04110-01

5

U-Nut, 1/4-20

Part# 04110-01

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.98

481584

6

Exhaust Elbow

Part# 481584

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.41

43421

7

Spacer, Engine

Part# 43421

Note: (Kohler)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.62

482561

8

Engine, Kohler 25 CH

Part# 482561

Note: (Available only through Kohler, Eng. Spec. PS 68699)

OEM Warranty Repair Part for Scag

Currently unavailable

04001-19

9

Bolt, Hex Head 3/8-16 x 1"

Part# 04001-19

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.36

04030-04

10

Lockwasher, 3/8" Spring

Part# 04030-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.06

04001-21

11

Bolt, Hex Head 3/8-16 x 1-3/4"

Part# 04001-21

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.57

04021-09

12

Nut, Hex Elastic Stop 3/8-16

Part# 04021-09

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.19

04001-32

13

Bolt, Hex Head 3/8-16 x 1-1/4"

Part# 04001-32

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.41

451454

14

Plate, Engine Mounting

Part# 451454

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $208.47

04003-12

15

Bolt, Carriage 5/16-18 x 3/4"

Part# 04003-12

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.32

04019-03

16

Nut, Hex Serrated Flange 5/16-18

Part# 04019-03

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.15

423550

17

Rear Cover

Part# 423550 (Superseded to 424691)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $50.87

48023

18

Hour Meter

Part# 48023

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $52.26
