STT61V-25CH-LP - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane (SN: F5500001 - F5599999) Engine And Attaching Parts - Kohler LP Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane

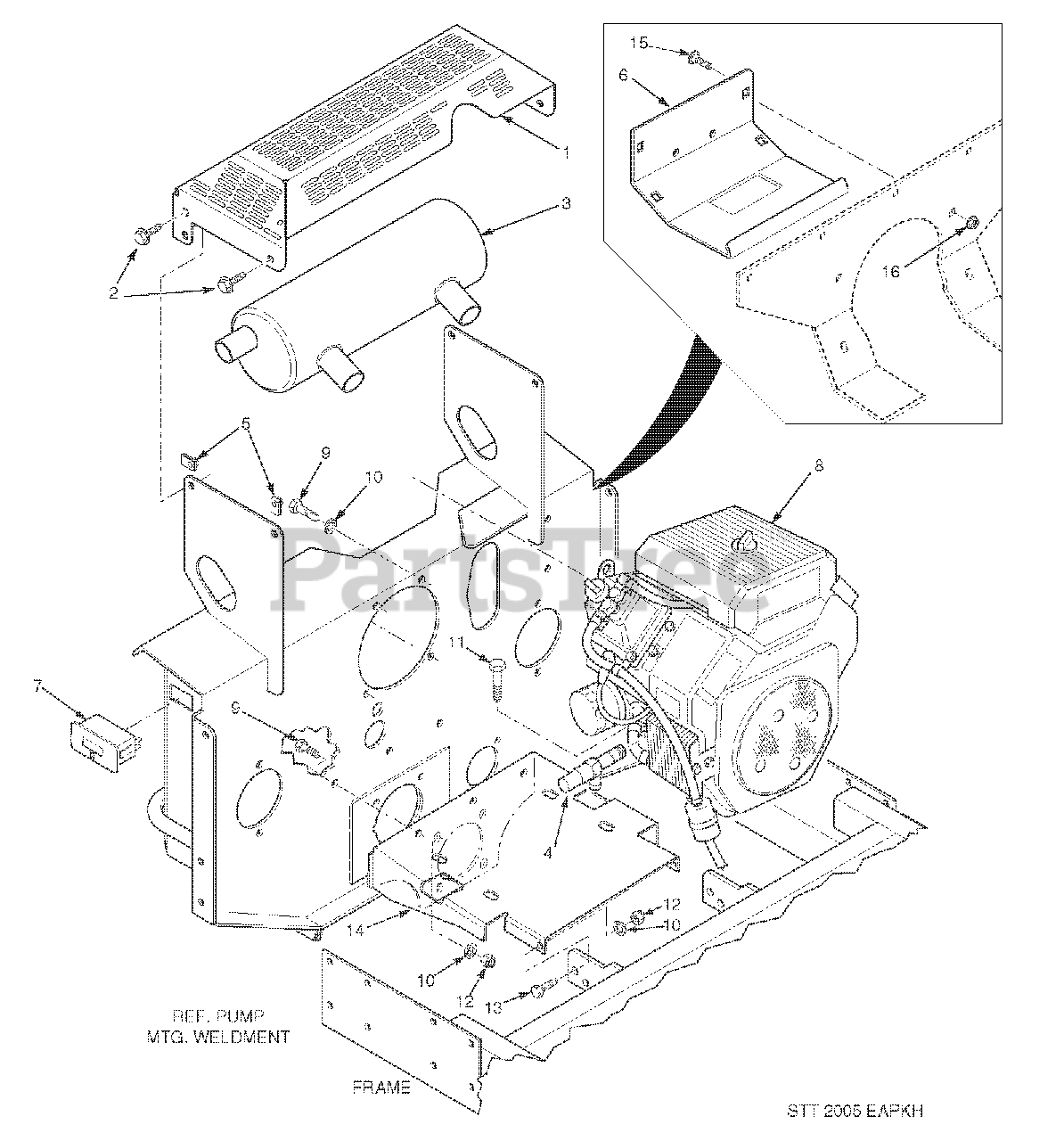

Engine And Attaching Parts - Kohler LP Parts Diagram

  • Title

1

Scag 422593

Muffler Guard
(Superseded to 424910)

$168.99

$

Usually ships in 2-12 days

0

2

Scag 04017-05

Screw, Hex Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Muffler, Part Of Engine

Note: (Available only through Kohler) Available through the individual engine manufacturer.

$

$

Not available

4

Scag 482510

Oil Drain Extension

$37.99

$

Usually ships in 2-12 days

0

5

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 19

0

6

Scag 424691

Rear Cover

$58.99

$

Usually ships in 2-12 days

0

7

Scag 483537

Hour Meter
(Superseded to 484565)

$63.99

$

In Stock, only 2 left!

0

8

Scag 484052

Engine, Kohler 25 CH LP

Note: (Available only through Kohler, Eng. Spec. PS-CH730-0220) Available through the individual engine manufacturer.

$

$

Currently unavailable

9

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 13

0

14

Scag 451459

Plate, Engine Mounting

$139.99

$

Usually ships in 2-12 days

0

15

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 12

0
