Scag STT61V-31KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kubota (SN: K2100001 - K2199999) Cutter Deck Controls Parts Lookup with Diagrams

1

Scag 481764

Link, Deck Lift

$10.99

$

Usually ships in 2-12 days

2

Scag 04020-28

Nut, Jam 1/2-20 LH

$3.49

$

In Stock, Qty 11

3

Scag 481766

Rod End, Female - 1/2-20 LH

$49.99

$

Usually ships in 2-12 days

4

Scag 04050-10

Ring, Retaining 1/2" External "E"

$0.99

$

In Stock, Qty 6

5

Scag 45905

Bellcrank Weldment, RH Rear

$107.99

$

Usually ships in 2-12 days

6

Scag 43487

Pin, Decklift

$4.99

$

Usually ships in 2-12 days

7

Scag 482429

Slide Weldment, Height Adjustment

$89.99

$

Usually ships in 2-12 days

8

Scag 04009-02

Bolt, Shoulder 1/2 x 3/4"

$3.99

$

In Stock, only 1 left!

9

Scag 48100-14

Bushing, .502 ID.

$2.49

$

In Stock, Qty 7

10

Scag 481428

Grip, Deck Latch

$4.49

$

Usually ships in 2-12 days

11

Scag 462102

Deck Latch

Note: (Includes items 9 & 10)

$60.99

$

In Stock, only 1 left!

12

Scag 424857

Lockplate, Decklift

$29.99

$

Usually ships in 2-12 days

13

Scag 04014-03

Screw, Cap 5/16-18 x 3" FHHS

$1.99

$

In Stock, Qty 7

14

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

15

Scag 423509

Guide, Long

$69.99

$

Usually ships in 2-12 days

16

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, only 4 left!

17

Scag 422381

Guide, Short

$20.99

$

Usually ships in 2-12 days

18

Scag 423463

Bracket, Cutting Height Adjustment

$95.99

$

Usually ships in 2-12 days

19

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 17

20

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 16

21

Scag 481598

Spring, Helper

Note: (61" & 72" Cutter Decks Only)

$66.99

$

Usually ships in 2-12 days

22

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

23

Scag 43526

Swivel Joint, LH

$18.99

$

In Stock, only 4 left!

24

Scag 04020-09

Nut, Hex 5/8-11

$0.99

$

In Stock, Qty 20+

25

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .095)

$0.99

$

In Stock, Qty 13

26

Scag 04061-07

Cotter Pin, 3/16 x 1"

$1.49

$

In Stock, Qty 11

27

Scag 45904

Bellcrank Weldment, LH Rear

$107.99

$

Usually ships in 2-12 days

28

Scag 48540

Chain

(Superseded to 482628) 

$11.99

$

Usually ships in 2-12 days

29

Scag 04004-48

Stud, 5/8-11 x 26.0"

$159.99

$

In Stock, only 1 left!

30

Scag 461929

Lever Assembly, Deck Level

$62.99

$

Usually ships in 2-12 days

31

Scag 43527

Swivel Joint, RH

$16.99

$

In Stock, only 3 left!

32

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

33

Scag 04050-08

Ring, Retaining 1" External "E"

$0.99

$

In Stock, Qty 20+

34

Scag 04041-14

Flatwasher, 1" (1.062 x 1.50 x .048)

$0.99

$

In Stock, Qty 18

35

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

36

Scag 04067-09

Ring Pin, 1/2 x 3.06"

$34.99

$

In Stock, only 4 left!

37

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

38

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

39

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

40

Scag 04030-07

Lockwasher, 5/8"

$1.49

$

In Stock, Qty 20+

41

Scag 04105-01

Capscrew, 5/8-11 x 1-1/2"

(Superseded to 04108-04) 

$2.99

$

Usually ships in 2-12 days

42

Scag 481765

Rod End, Female - 1/2-20 RH

$42.99

$

Usually ships in 2-12 days

43

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 7

44

Scag 04020-27

Nut, Jam 1/2-20 RH

$4.49

$

In Stock, Qty 6

45

Scag 43391

Spacer, Decklift Pedal

$8.99

$

In Stock, only 1 left!

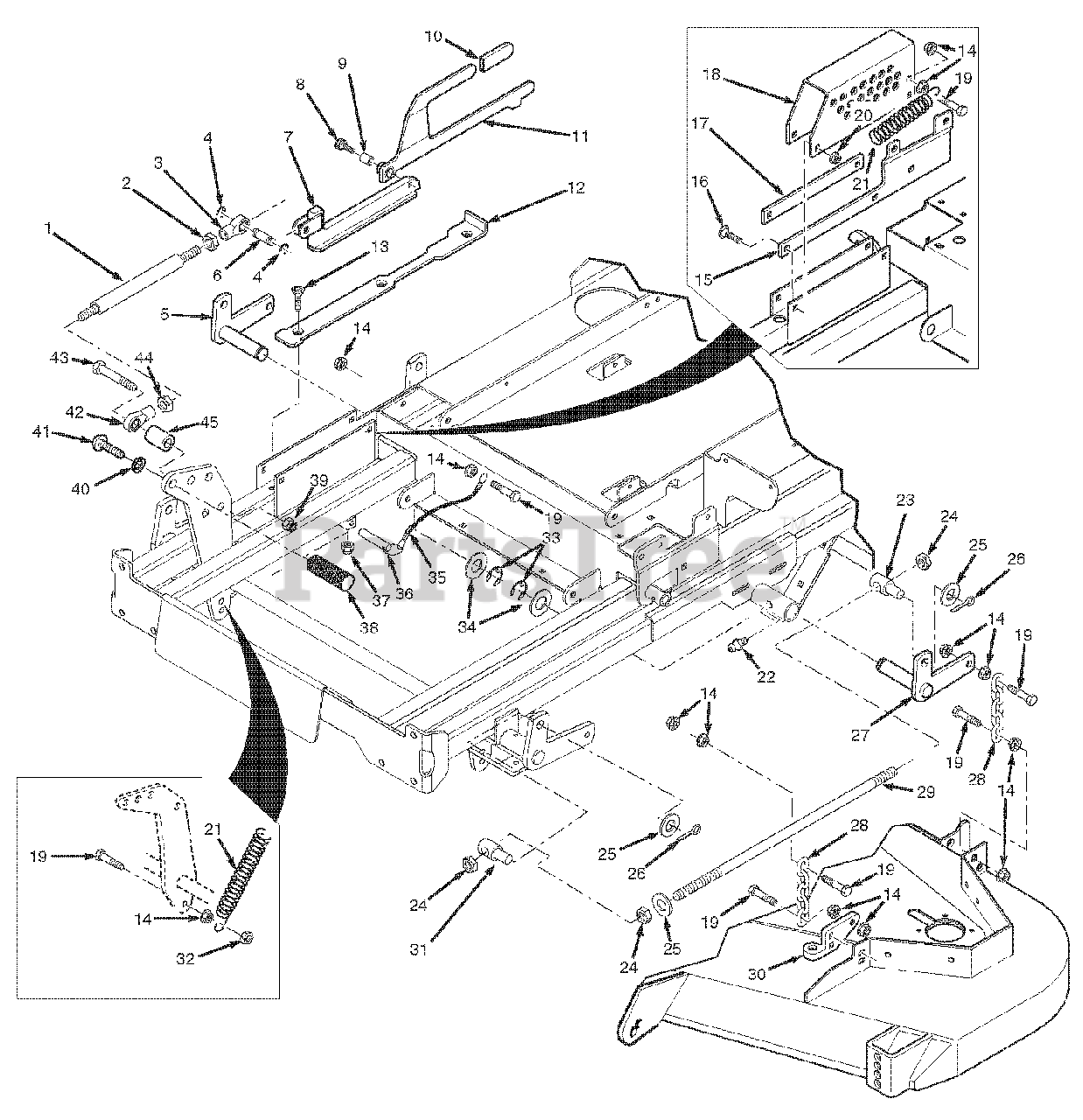

STT61V-31KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kubota (SN: K2100001 - K2199999) Cutter Deck Controls Parts Diagram

Cutter Deck Controls Parts Diagram
