STTII-52V-26CH-EFI - Scag Turf Tiger II 52" Zero-Turn Mower, 26hp Kohler (SN: N0300001 - N0399999) STTII 52V Cutter Deck Parts Diagram

Turf Tiger II 52" Zero-Turn Mower, 26hp Kohler

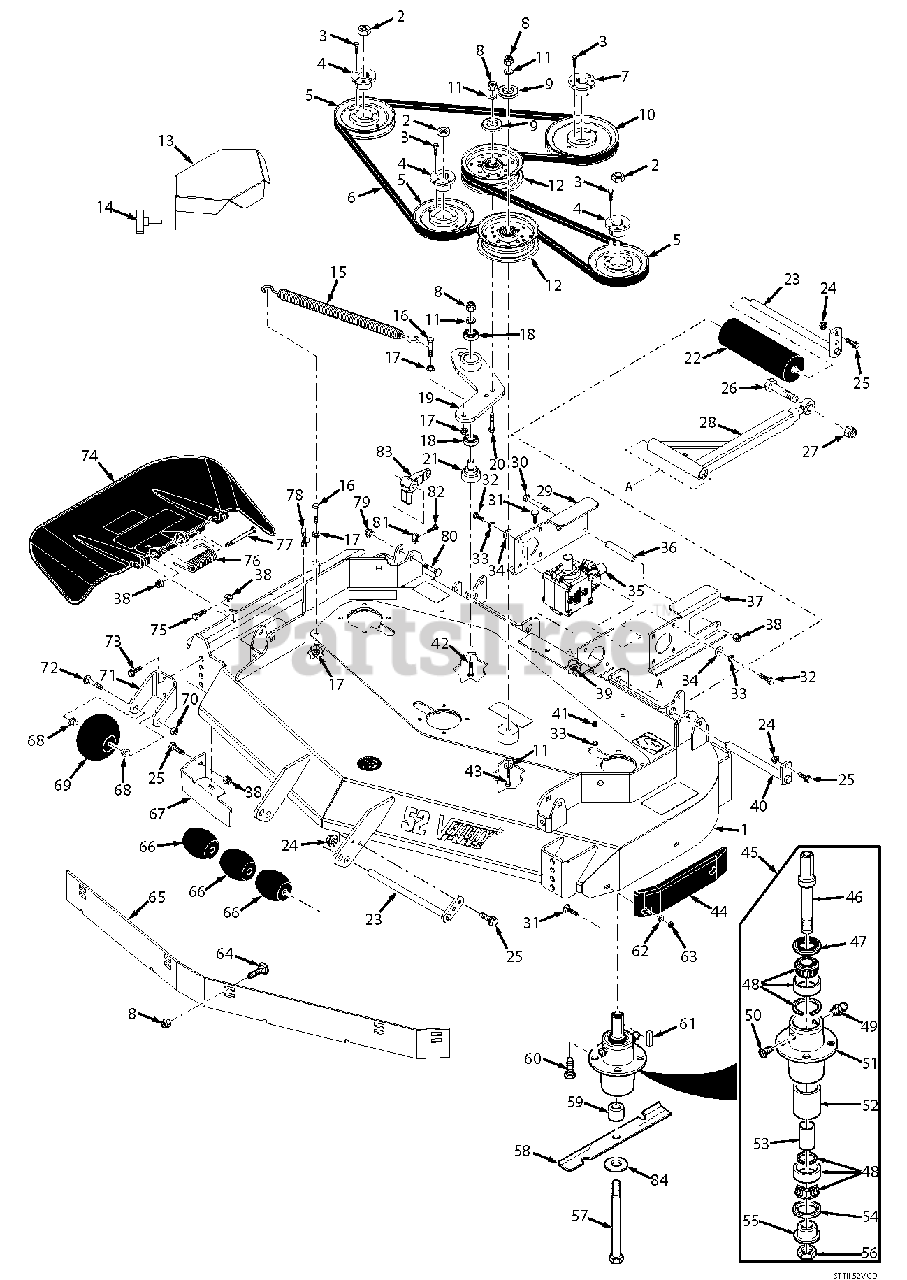

STTII 52V Cutter Deck Parts Diagram

  • Title

1

Scag 462879

Cutter Deck w/Decals - 52V

$1665.99

$

Usually ships in 2-12 days

0

2

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Tapered Hub, 1-1/8" Bore

$31.99

$

In Stock, Qty 15

0

5

Scag 482744

Pulley, 5.75 O.D.

$30.99

$

In Stock, Qty 7

0

6

Scag 482281

Belt, Cutter Deck Drive

$70.99

$

In Stock, only 1 left!

0

7

Scag 48141

Tapered Hub, 1" Bore

$30.99

$

In Stock, Qty 5

0

8

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 424367

Dust Shield

$2.49

$

In Stock, Qty 7

0

10

Scag 482747

Pulley, 6.95 O.D.

$36.99

$

Usually ships in 2-12 days

0

11

Scag 04043-04

Flatwasher, 3-8/.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

12

Scag 483215

Pulley, Idler

$62.99

$

In Stock, Qty 20+

0

13

Scag 427110

Belt Cover

$69.99

$

In Stock, only 2 left!

0

14

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

15

Scag 483704

Spring

$29.99

$

In Stock, Qty 14

0

16

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

19

Scag 461842

Idler Arm Weldment

Note: (incl.#18)

$86.99

$

In Stock, only 1 left!

0

20

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 11

0

21

Scag 43681

Pivot, Idler

$24.99

$

In Stock, only 1 left!

0

22

Scag 48038

Guide Roller

$29.99

$

In Stock, Qty 6

0

23

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 15

0

24

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 12

0

25

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 9

0

27

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 9

0

28

Scag 461516

Pusharm Assy., LH & RH

$216.99

$

In Stock, only 4 left!

0

29

Scag 424798

Mounting Plate
(Superseded to 428027)

$24.99

$

Usually ships in 2-12 days

0

30

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 8

0

31

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

34

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

35

Scag 482486

Gearbox

$704.99

$

In Stock, only 1 left!

0

36

Scag 43763

Spacer

$14.99

$

In Stock, only 3 left!

0

37

Scag 424799

Mounting Plate
(Superseded to 428026)

$25.99

$

In Stock, only 2 left!

0

38

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

39

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 12

0

40

Scag 451240

Shaft Weldment, Pusharm

$53.99

$

In Stock, Qty 11

0

41

Scag 04021-22

Nut, Elastic Stop 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

42

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 19

0

43

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

0

44

Scag 483176

Pad, Deck Wear

$34.99

$

In Stock, Qty 14

0

45

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 16

0

46

Scag 43589

Shaft, Spindle

$59.99

$

In Stock, Qty 6

0

47

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 19

0

48

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 7

0

49

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

50

Scag 48677

Relief Fitting, Tapered Spindle

$9.49

$

In Stock, only 1 left!

0

51

Scag 43644

Spindle Housing

$60.99

$

Usually ships in 2-12 days

0

52

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

53

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

54

Scag 481025

Seal Bottom

$4.99

$

In Stock, Qty 20+

0

55

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

56

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, only 3 left!

0

57

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

58

Scag 482878

Cutter Blade, 18"

$24.99

$

In Stock, Qty 20+

0

59

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

60

Scag 04001-176

Bolt, 5/16-18 x 1-3/4"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

61

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

62

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

63

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

64

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

65

Scag 424840

Baffle, Custom Cut - 52V

$103.99

$

Usually ships in 2-12 days

0

66

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

67

Scag 424677

Baffle, Turbo

$32.99

$

Usually ships in 2-12 days

0

68

Scag 48100-15

Bushing, .376 I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

69

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

70

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

71

Scag 422478

Bracket, Anti-Scalp

$28.99

$

Usually ships in 2-12 days

0

72

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

73

Scag 04017-27

Bolt, Hex Head Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

74

Scag 461845

Discharge Chute Assy.

$68.99

$

In Stock, only 1 left!

0

74

Scag 462475

Discharge Chute Assy. (CA)

Note: = California Models Only (not shown)

$162.99

$

Usually ships in 2-12 days

0

75

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

76

Scag 483378

Spring, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

77

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 8

0

78

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 9

0

79

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 9

0

80

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 4 left!

0

81

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

82

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special

$1.49

$

In Stock, only 4 left!

0

83

Scag 485528

Lever, Deck Level

$23.99

$

Usually ships in 2-12 days

0

84

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

0
