STTII-72V-35BV - Scag Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard (SN: P2300001 - P2399999) STTII ELECTRICAL SYSTEM - KUBOTA DIESEL Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard

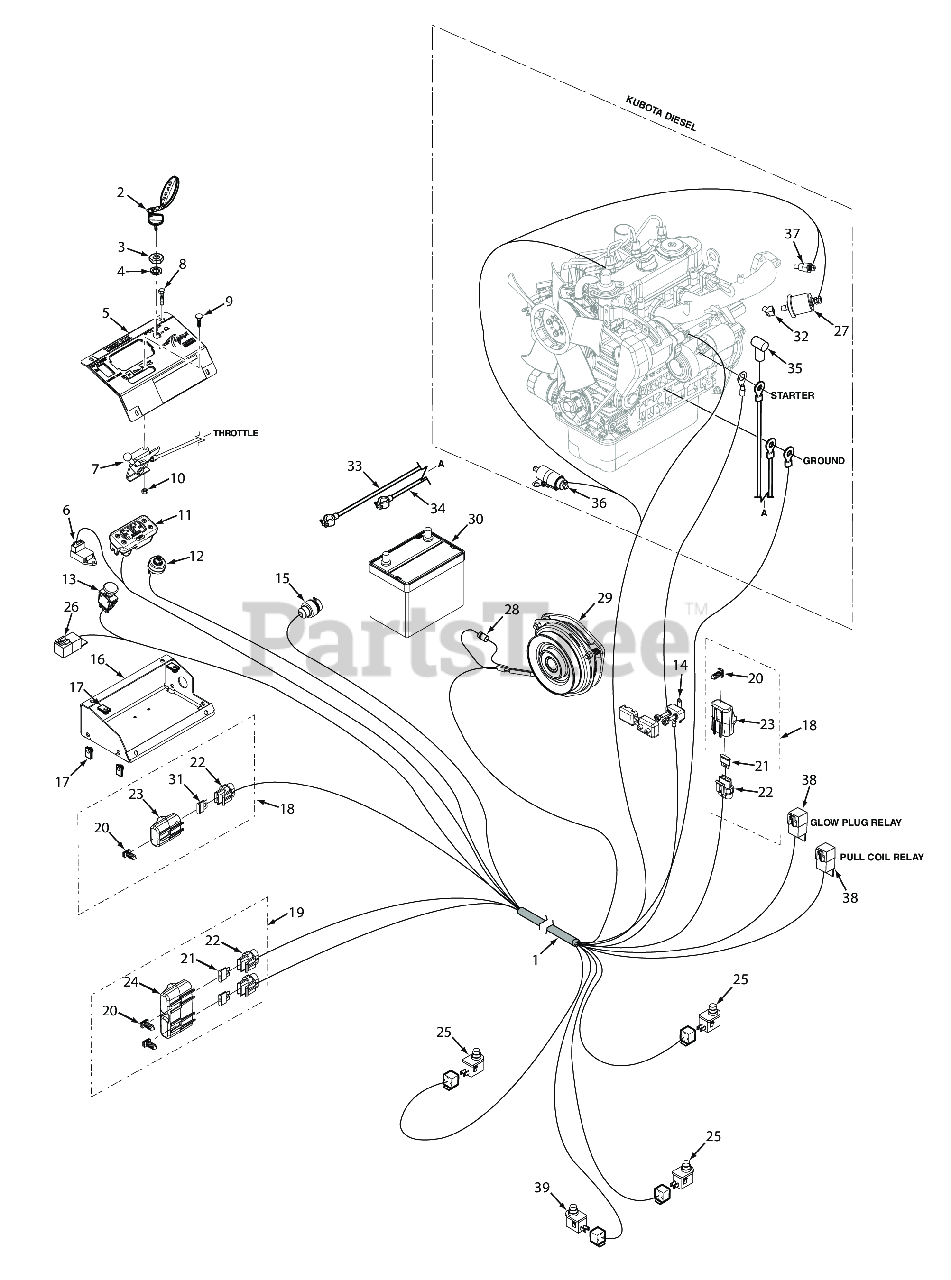

STTII ELECTRICAL SYSTEM - KUBOTA DIESEL Parts Diagram

  • Title

1

Scag 486133

Wire Harness, STTII-25KBD

$793.99

$

Usually ships in 2-12 days

0

2

Scag 462069

Key, Assembly w/Fob

$9.99

$

In Stock, Qty 9

0

3

Scag 48017-04

Nut, 5/8-32 Special

$1.99

$

In Stock, Qty 5

0

4

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 7

0

5

Scag 462930

Instrument Panel w/Decal

$128.99

$

Usually ships in 2-12 days

0

6

Scag 483399

Timer, Glow Plug

$297.99

$

Usually ships in 2-12 days

0

7

Scag 483356

Cable, Control (Throttle)

$74.99

$

In Stock, only 1 left!

0

8

Scag 04013-04

Bolt, Hex Head Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 12

0

9

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 8

0

10

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 9

0

11

Scag 484721

Tiger Eye, Cluster Gauge

$383.99

$

In Stock, Qty 5

0

12

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

13

Scag 485833

Switch, PTO - 10 Amp

$48.99

$

Usually ships in 2-12 days

0

14

Scag 482784

Circuit Breaker, 50 AMP
(Superseded to 486588)

$21.99

$

Usually ships in 2-12 days

0

15

Scag 485568

Power Plug, 12V

$30.99

$

Usually ships in 2-12 days

0

16

Scag 427076

Base, Instrument Panel

$54.99

$

Usually ships in 2-12 days

0

17

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 19

0

18

Scag 485739

Single Fuse Assy., Excluding Fuse

$34.99

$

Usually ships in 2-12 days

0

19

Scag 483642

Double Fuse Assy.

$54.99

$

Usually ships in 2-12 days

0

20

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

21

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

22

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 10

0

23

Scag 483643

Cover, Sealed Single

$4.99

$

In Stock, only 2 left!

0

24

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

25

Scag 481638

Switch, Interlock, Normally Open

$15.99

$

In Stock, Qty 20+

0

26

Scag 483013

Relay, 12V 40 AMP Standard

$21.99

$

In Stock, Qty 20+

0

27

Scag 481811

Sender Unit, Oil Pressure

$247.99

$

Usually ships in 2-12 days

0

28

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 1 left!

0

29

Scag 462011

Clutch Assembly, GT3.5 (Diesel Engine)

$590.99

$

Usually ships in 2-12 days

0

30

Battery, 525 CCA

Note: Not available through Scag.

$

$

Not available

31

Scag 485674

Fuse, 5 Amp

$8.49

$

Usually ships in 2-12 days

0

32

Scag 483433

Elbow, 45 Degree Street

$5.99

$

Usually ships in 2-12 days

0

33

Scag 481176-15

Battery Cable, 14" Red w/Braid

$63.99

$

Usually ships in 2-12 days

0

34

Scag 481176-11

Battery Cable, 21" Black

$44.99

$

Usually ships in 2-12 days

0

35

Scag 481335

Boot, Positive Battery Terminal

$3.99

$

Usually ships in 2-12 days

0

36

Solenoid, Fuel Shut-Off

Note: Available through the engine manufacturer. Reference model and serial number.

$

$

Not available

37

Scag 483360

Temperature Sensor, Engine Coolant

$32.99

$

Usually ships in 2-12 days

0

38

Scag 481826

Relay, 12V 40 AMP Hi Capacity

$60.99

$

Usually ships in 2-12 days

0

39

Scag 485691

Plunger Switch, Single Pole

$12.99

$

Usually ships in 2-12 days

0
