STTII-72V-37BV-EFI - Scag Turf Tiger II 72" Zero-Turn Mower, 37hp Vanguard (SN: R1400001 - R1499999) ELECTRICAL SCHEMATIC - BRIGGS & STRATTON 37BV-EFI Parts Diagram
Turf Tiger II 72" Zero-Turn Mower, 37hp Vanguard

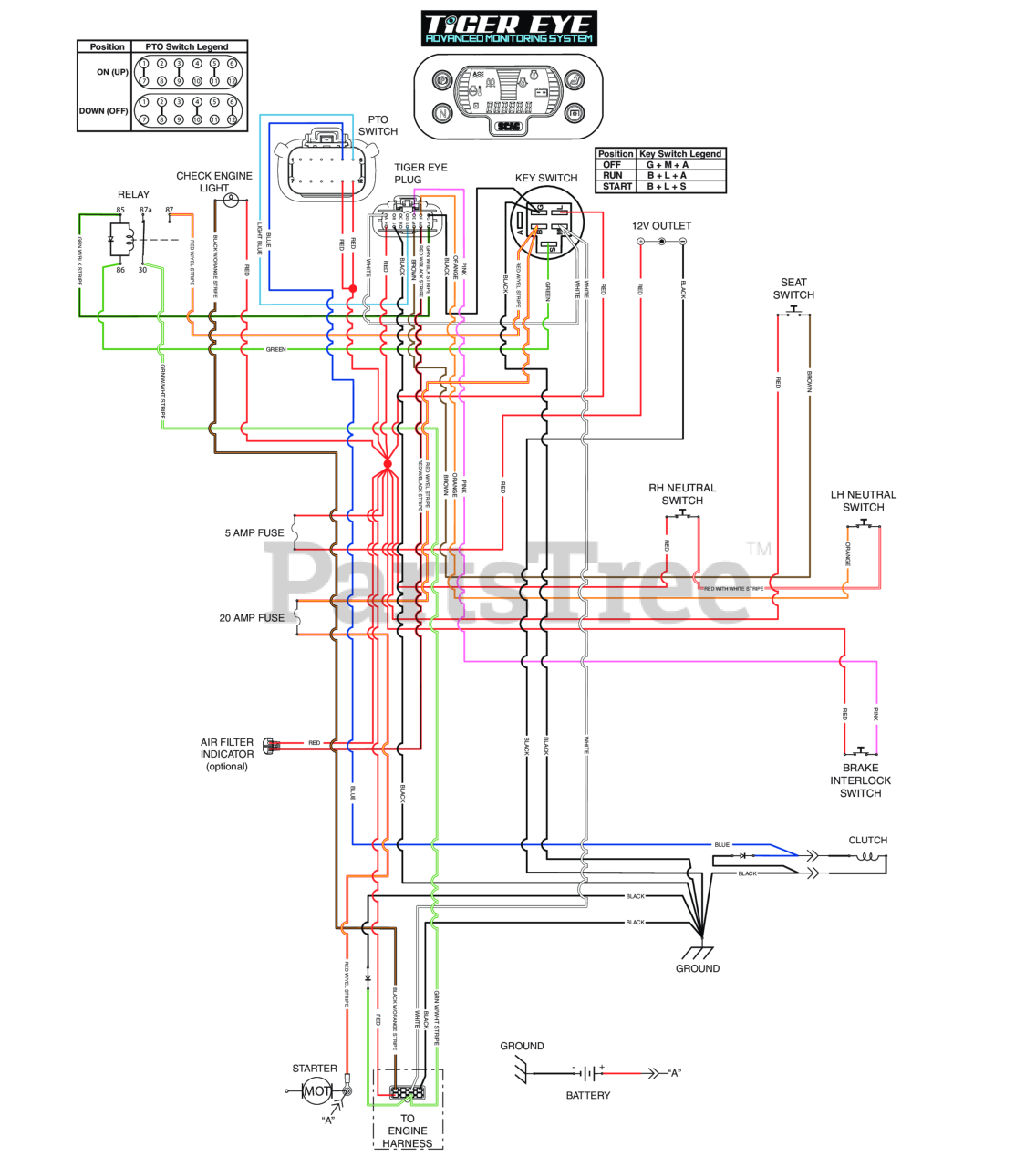

ELECTRICAL SCHEMATIC - BRIGGS & STRATTON 37BV-EFI Parts Diagram
No Part List Information Available
$
$
Not available
