STWC48V-26KA-LC - Scag Wildcat 48" Zero-Turn Mower, 26hp Kawasaki (SN: F4500001 - F4599999) STWC Fuel System - EPA Phase 2 Parts Diagram

Wildcat 48" Zero-Turn Mower, 26hp Kawasaki

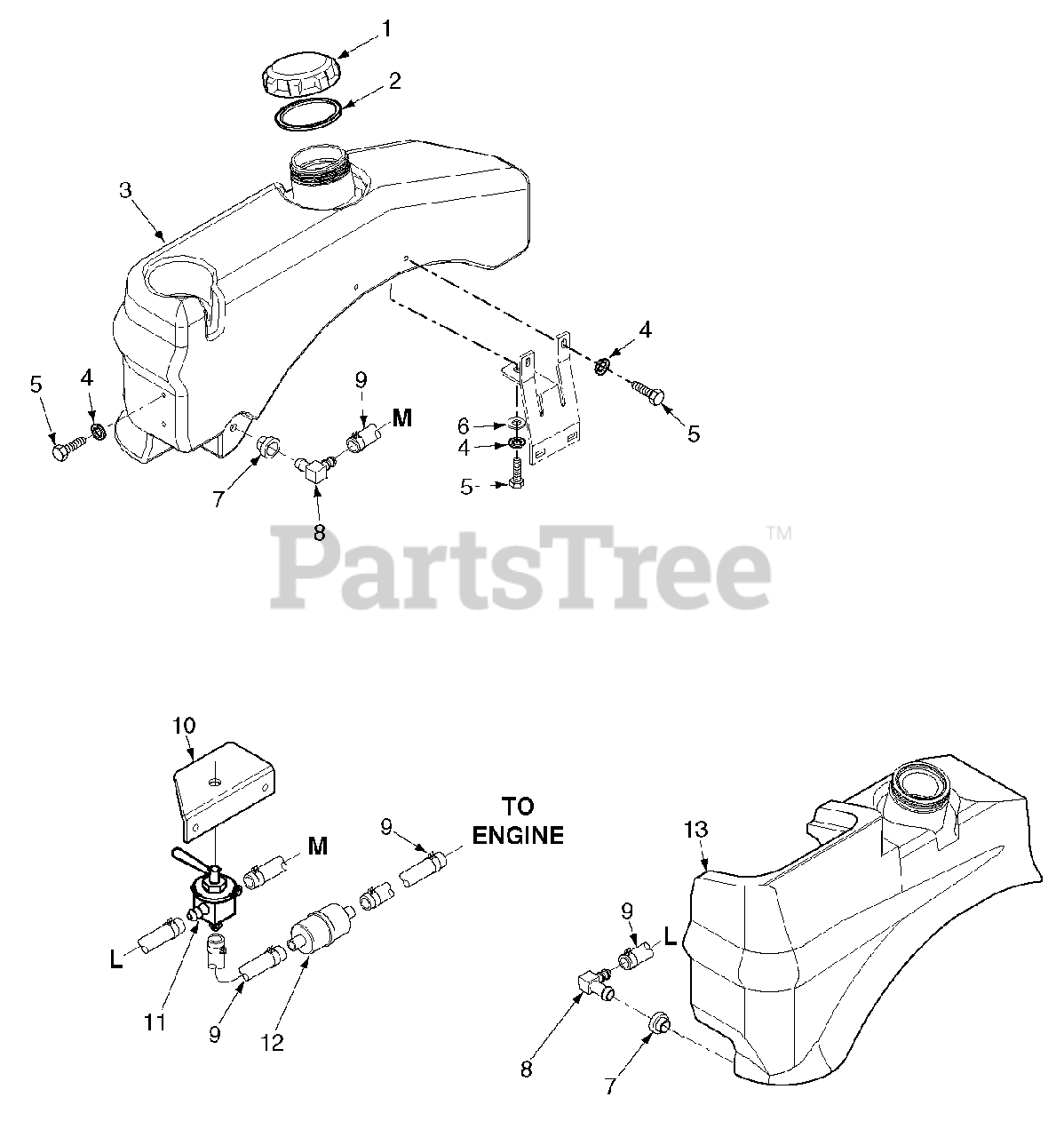

STWC Fuel System - EPA Phase 2 Parts Diagram

  • Title

1

Scag 483792

Fuel Cap

$27.99

$

In Stock, Qty 8

0

2

Scag 482774

Gasket, Fuel Cap

$3.99

$

In Stock, Qty 5

0

3

Scag 462163

Fuel Tank RH

Note: (Incl. #7 & #8)

$209.99

$

Usually ships in 2-12 days

0

4

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

7

Scag 482571

Tank Bushing

$12.99

$

In Stock, Qty 20+

0

8

Scag 483748

Fitting, 90 Degree

$9.49

$

In Stock, only 2 left!

0

9

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

10

Scag 423912

Bracket, Fuel Valve

$25.99

$

Usually ships in 2-12 days

0

11

Scag 482212

Fuel Shutoff Valve

$44.99

$

Usually ships in 2-12 days

0

12

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

13

Scag 462162

Fuel Tank LH

Note: (Incl. #7 & #8)

$201.99

$

Usually ships in 2-12 days

0
