STWC52V-26KA-LC - Scag Wildcat 52" Zero-Turn Mower, 26hp Kawasaki (SN: F4700001 - F4799999) Electrical Schematic - 26HP Kawasaki Liquid-Cooled Parts Diagram
Wildcat 52" Zero-Turn Mower, 26hp Kawasaki

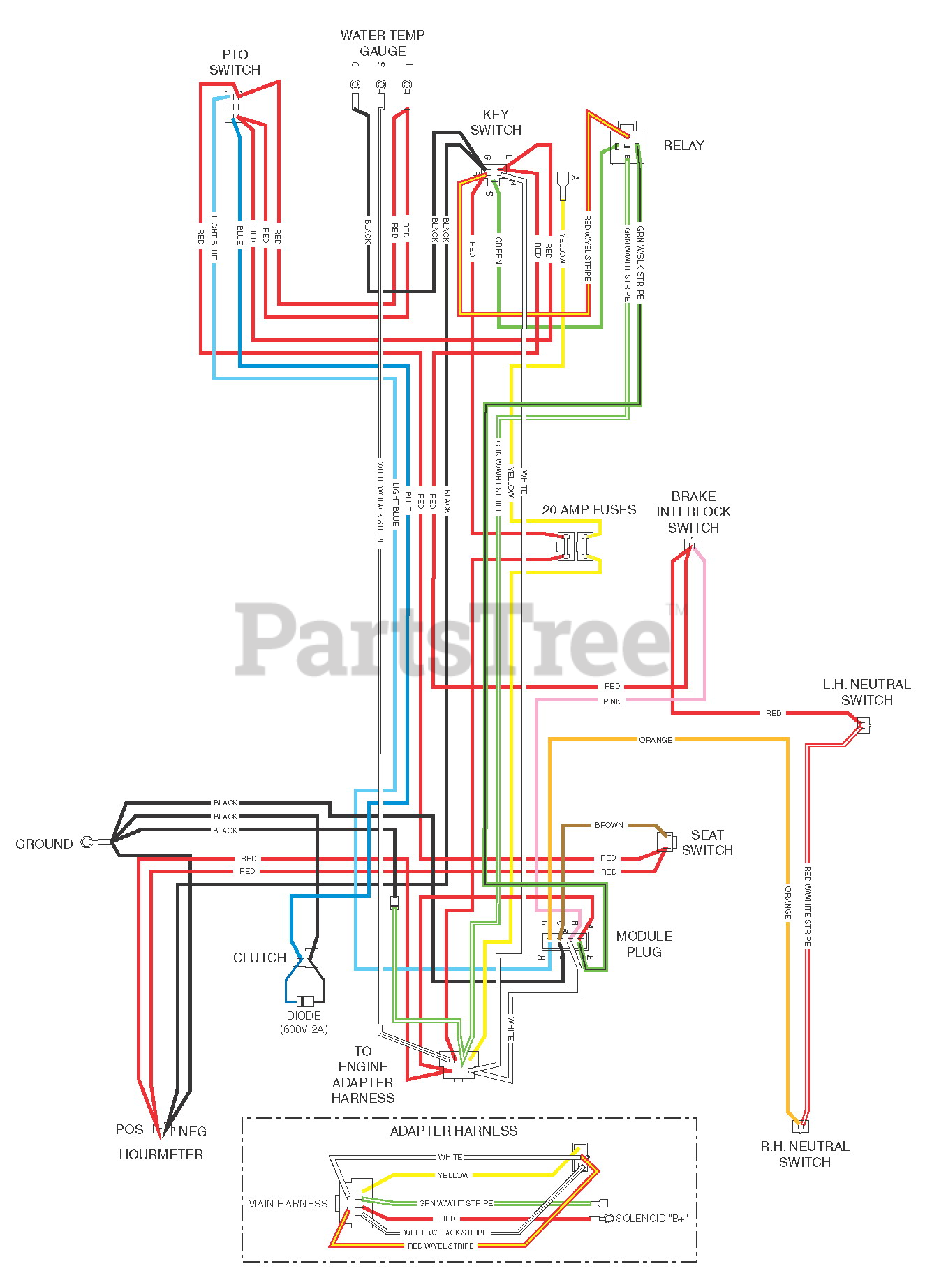

Electrical Schematic - 26HP Kawasaki Liquid-Cooled Parts Diagram
No Parts List Information Available
$
$
Not available
