STWC61V-26KA-LC - Scag Wildcat 61" Zero-Turn Mower, 26hp Kawasaki (SN: D7100001 - D7199999) (Rev 02) Electrical System - 26HP Kawasaki Liquid-Cooled Parts Diagram

Wildcat 61" Zero-Turn Mower, 26hp Kawasaki

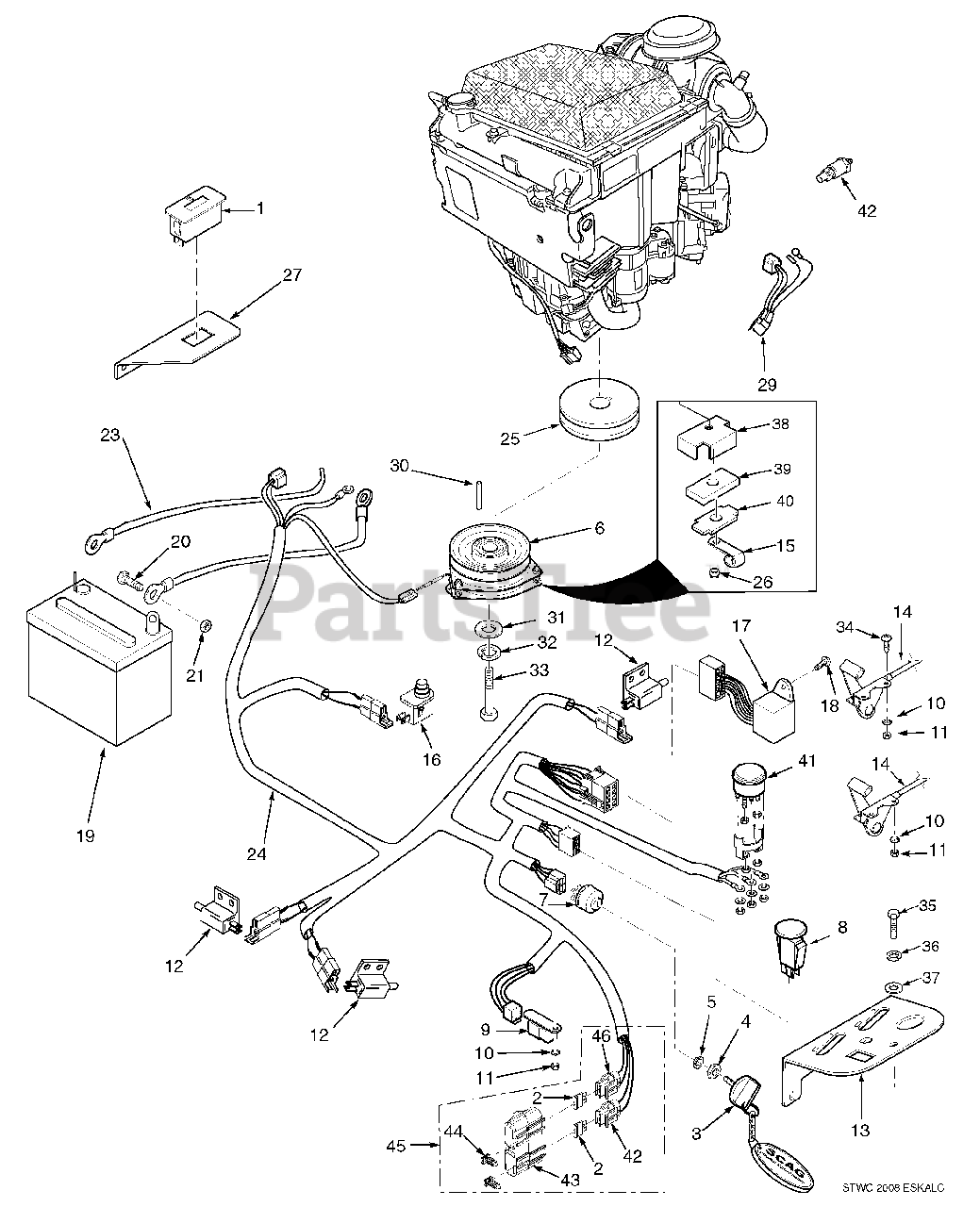

Electrical System - 26HP Kawasaki Liquid-Cooled Parts Diagram

  • Title
1

Scag 483355

Hourmeter
(Superseded to 484565)

$63.99

$

In Stock, only 1 left!

0

2

Scag 48298

Fuse, 20 amp

$

$

Not available

3

Scag 483366

Key, Ignition
(Superseded to 462069)

$9.99

$

In Stock, Qty 20+

0

Scag 462069

Key Assembly w/Fob

$9.99

$

In Stock, Qty 20+

0

4

Scag 48017-04

Nut, Hex 5/8-32

$1.99

$

In Stock, Qty 5

0

5

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

6

Scag 461660

Electric PTO Clutch GT3.5

$493.99

$

In Stock, only 1 left!

0

7

Scag 48798

Switch, Ignition

$27.99

$

In Stock, Qty 20+

0

8

Scag 483957

Switch, PTO
(Superseded to 463034)

$46.99

$

In Stock, Qty 20+

0

9

Scag 48788

Relay

$29.99

$

In Stock, only 2 left!

0

10

Scag 04031-01

Lockwasher, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

11

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

12

Scag 481637

Switch, N/O

$9.99

$

In Stock, Qty 20+

0

13

Scag 461952

Panel, Instrument
(Superseded to 462331)

$49.99

$

Usually ships in 2-12 days

0

14

Scag 482032

Choke & Throttle Control

Note: Kawasaki

$33.99

$

In Stock, Qty 20+

0

15

$1.49

$

In Stock, Qty 6

0

16

Scag 481638

Switch, Seat

$15.99

$

In Stock, Qty 20+

0

17

Scag 483029

Module, Interlock
(Superseded to 483599)

$137.99

$

In Stock, Qty 20+

0

18

Scag 04010-01

Screw, #10-32 x .5" Phillips Head

$0.99

$

In Stock, Qty 20+

0

19

Battery

Note: (Not Available Through Scag)

$

$

Not available

20

Scag 04001-44

Bolt, Hex Hd. 1/4-20 x .5"

$0.99

$

In Stock, Qty 6

0

21

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, only 1 left!

0

22

Scag 48029-15

Cable, Battery Black (negative)

$17.99

$

In Stock, only 1 left!

0

23

Scag 48029-12

Cable, Battery Red (positive)

$17.99

$

In Stock, only 1 left!

0

24

Scag 483619

Wiring Harness, Main

$474.99

$

Usually ships in 2-12 days

0

25

Scag 483081

Pulley, 5.45" OD x 1.125" Bore

$63.99

$

In Stock, only 2 left!

0

26

Scag 04021-10

Nut, Elastic Stop 5/16-18 Key

$0.99

$

In Stock, Qty 20+

0

27

Scag 424112

Mounting Bracket, Hour Meter

$10.99

$

Usually ships in 2-12 days

0

28

Scag 04010-11

Screw, #10-32 x 1.5" Phillips Head

$0.99

$

Usually ships in 2-12 days

0

29

Scag 483272

Adaptor, Wiring Harness

$36.99

$

Usually ships in 2-12 days

0

30

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4"

$2.49

$

In Stock, only 2 left!

0

31

Scag 04041-28

Flatwasher, 7/16 (.469 x 1-3/4" x 1/4")

$2.99

$

In Stock, Qty 13

0

32

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 10

0

33

Scag 04102-03

Bolt, Hex Hd. 7/16-20 x 2-1/4" UNF

Note: (61A Only)

$2.49

$

In Stock, Qty 13

0

34

Scag 04010-12

Screw, #10-32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

35

Scag 04001-08

Bolt, Hex Hd. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083")

$0.99

$

In Stock, Qty 20+

0

38

Scag 423909

Backing Plate

$12.99

$

Usually ships in 2-12 days

0

39

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

In Stock, only 1 left!

0

40

Scag 422534

Plate, Backing

$5.49

$

Usually ships in 2-12 days

0

41

Scag 481183

Water Temp. Gauge

$139.99

$

Usually ships in 2-12 days

0

42

Scag 481670

Sender Unit, Water Temp

$98.99

$

Usually ships in 2-12 days

0

43

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

44

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

45

Scag 483642

Double Fuse Assembly, Sealed

Note: (incl. items 2, 43, 44, 46)

$54.99

$

Usually ships in 2-12 days

0

46

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 8
