STWC61V-27CV - Scag Wildcat 61" Zero-Turn Mower, 27hp Kohler (SN: D7200001 - D7299999) STWC Roll-Over Protection System Parts Diagram

Wildcat 61" Zero-Turn Mower, 27hp Kohler

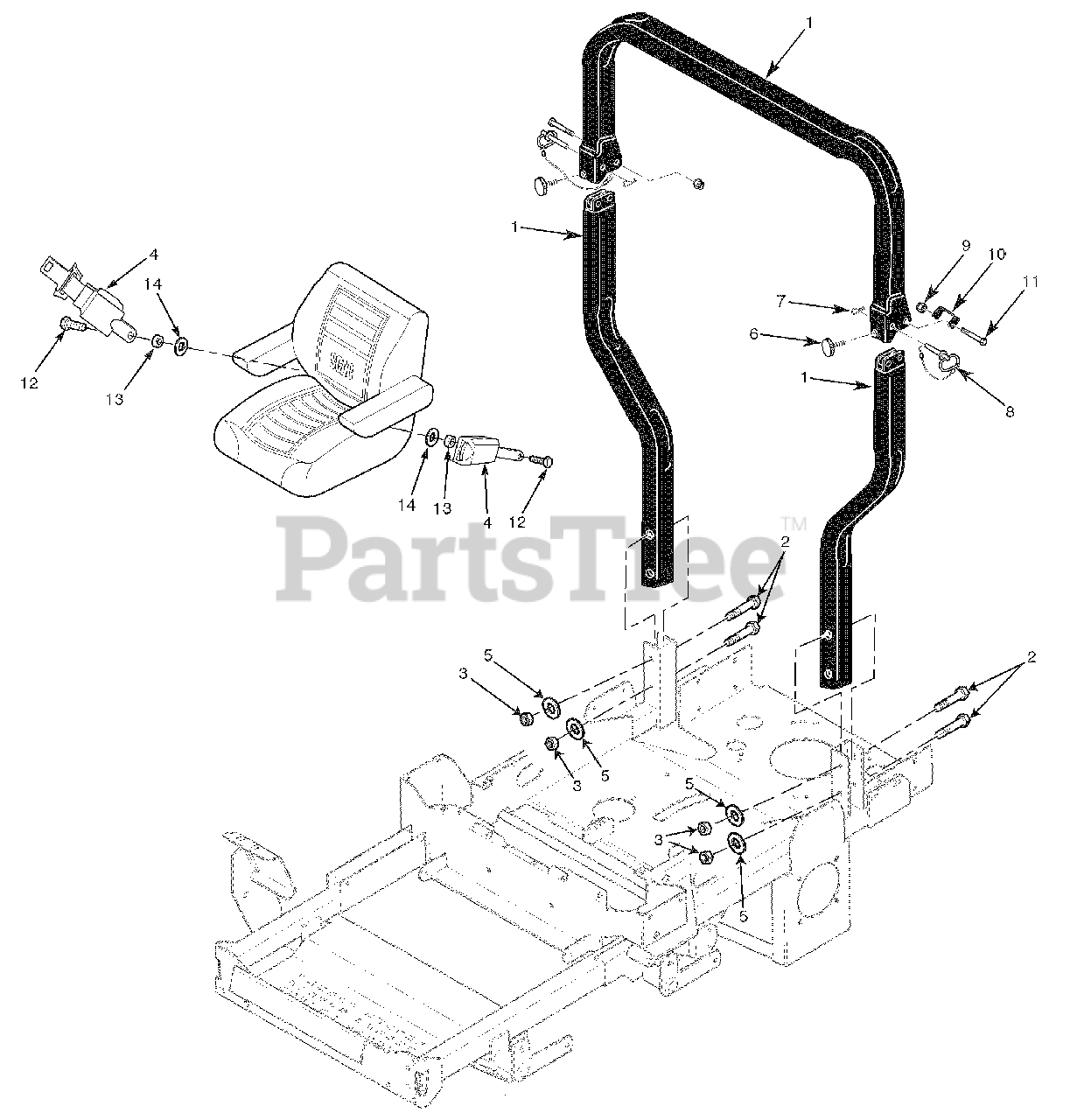

STWC Roll-Over Protection System Parts Diagram

  • Title

1

Scag 461956

STC Foldable ROPS
(Superseded to 9512)

$407.99

$

Usually ships in 2-12 days

0

2

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 4 left!

0

3

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 19

0

4

Scag 483412

Retractable Seat Belt
(Superseded to 485164)

$234.99

$

Usually ships in 2-12 days

0

5

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 6

0

6

Scag 481625-03

Thumb Screw, 5/16-18 NC x 3/4"
(Superseded to 483301)

$8.49

$

Usually ships in 2-12 days

0

7

Scag 04062-06

Hair Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

8

Scag 483262

Pin
(Superseded to 484168)

$28.99

$

In Stock, only 4 left!

0

9

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 19

0

10

Scag 424407

Bracket, Stop

$33.99

$

In Stock, only 1 left!

0

11

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 4 left!

0

12

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 12

0

13

Spacer

$

$

Not available

14

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 13

0
