STZ-20KH - Scag STZ Zero-Turn Mower, 20hp Kohler (SN: 30000 - 39999) CUTTER DECK SMZ-61 Parts Diagram

STZ Zero-Turn Mower, 20hp Kohler

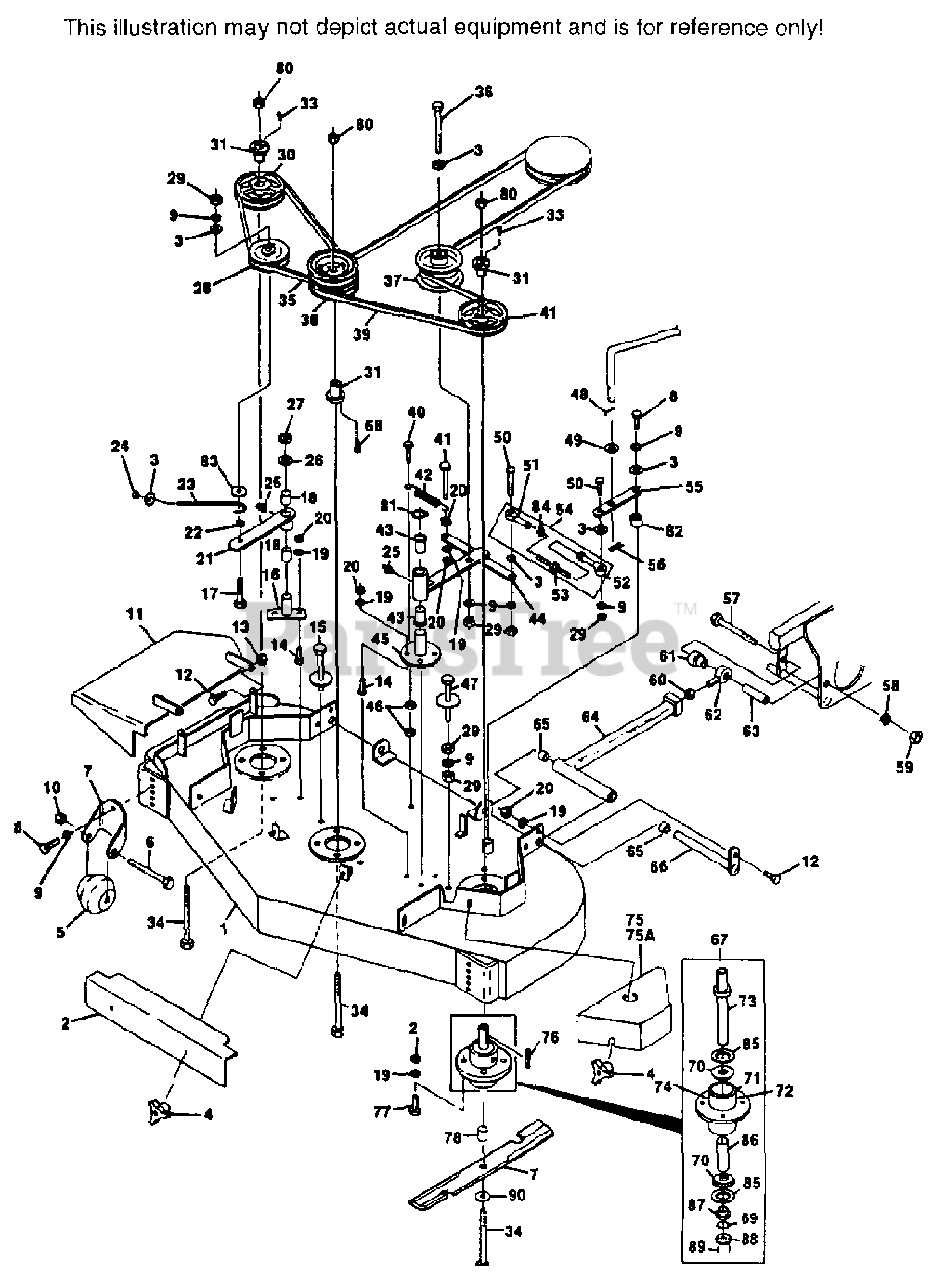

CUTTER DECK SMZ-61 Parts Diagram

  • Title

1

Scag 46465

CUTTER DECK(INCLUDES DECALS)

$

$

Not available

2

Scag 42931

BELT COVER - FRONT

$118.99

$

Usually ships in 2-12 days

0

3

FLAT WASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

5

Scag 48584

ANTI-SCALP WHEEL

$13.99

$

Usually ships in 2-12 days

0

6

HEX HEAD BOLT, 5/8-11 X 4-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 42882

ANTI-SCALP WHEEL BRACKET
(Superseded to 461086)

$67.99

$

Usually ships in 2-12 days

0

8

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

LOCKWASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

HEX NUT, 5/8-11 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

Scag 45440

DISCHARGE CHUTE
(Superseded to 461293)

$84.99

$

Usually ships in 2-12 days

0

12

HEX HEAD BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

Scag 45350

BELT GUIDE

$

$

Not available

?16

Scag 45037

IDLER PIVOT BASE

$31.99

$

Usually ships in 2-12 days

0

17

HEX HEAD BOLT, 3/8-16 X 2-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

Scag 48100-05

BUSHING

$0.99

$

In Stock, Qty 18

0

19

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

21

Scag 46081

IDLER ARM(INCLUDES BUSHINGS & GREASE FTG.)

$47.99

$

Usually ships in 2-12 days

0

22

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

23

Scag 43028

"J" ROD

$4.99

$

In Stock, only 2 left!

0

24

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

25

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

26

Scag 04041-08S

FLAT WASHER, 3/4" SPECIAL

$0.99

$

In Stock, Qty 20+

0

27

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 10

0

28

Scag 48181

PULLEY, IDLER

$26.99

$

In Stock, Qty 15

0

29

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

Scag 48127

PULLEY(INCLUDES ITEMS 31 & 33)
(Superseded to 482744)

$

$

Not available

31

Scag 48141

TAPERED HUB

$30.99

$

In Stock, Qty 6

0

33

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

Scag 04001-41

HEX HEAD BOLT, 5/8-11 X 9-1/2"

$15.99

$

In Stock, Qty 20+

0

35

Scag 48265

BELT, RH BLADE DRIVE

$41.99

$

Usually ships in 2-12 days

0

36

HEX HEAD BOLT, 3/8-16 X 3-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

37

Scag 48550

PULLEY, IDLER - CUTTER ENGAGEMENT
(Superseded to 483210)

$56.99

$

In Stock, Qty 19

0

38

Scag 48128

PULLEY, DOUBLE(INCLUDES 31)
(Superseded to 48940)

$188.99

$

Usually ships in 2-12 days

0

39

Scag 48752

BELT, BLADE DRIVE

$106.99

$

In Stock, only 1 left!

0

40

HEX HEAD BOLT, 1/4-20 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

41

Scag 48753

PULLEY, LH SPINDLE
(Superseded to 482745)

$31.99

$

In Stock, Qty 10

0

?42

Scag 48494-02

SPRING, IDLER TENSION

$6.49

$

In Stock, only 3 left!

0

43

Scag 48100-02

BUSHING

$3.99

$

Usually ships in 2-12 days

0

44

Scag 46387

IDLER ARM(INCLUDES BUSHINGS & GREASE

$

$

Not available

45

Scag 45329

IDLER PIVOT BASE

$40.99

$

Usually ships in 2-12 days

0

46

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

47

Scag 45351

BELT GUIDE

$23.99

$

Usually ships in 2-12 days

0

48

COTTER PIN, 3/32 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

FLAT WASHER, 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

50

HEX HEAD BOLT, 3/8-16 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

Scag 48464

BALL JOINT - RH

$23.99

$

In Stock, only 1 left!

0

52

Scag 48544

BALL JOINT - LH

$27.99

$

Usually ships in 2-12 days

0

?53

Scag 48590

LINK, TURNBUCKLE

$33.99

$

Usually ships in 2-12 days

0

54

Scag 46388

TURNBUCKLE ASSEMBLY

$127.99

$

Usually ships in 2-12 days

0

55

Scag 421107

DECLUTCH LINK, CUTTER ENGAGEMENT

$56.99

$

In Stock, only 1 left!

0

56

Scag 04062-01

HAIR PIN, 1/8" DIA.

$0.99

$

In Stock, Qty 20+

0

57

HEX HEAD BOLT, 1/2-13 X 5-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

58

LOCKWASHER, 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

59

HEX NUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

60

HEX NUT, 5/8-18 UNF

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?61

Scag 43244

BUSHING

$30.99

$

Usually ships in 2-12 days

0

62

Scag 48763

ROD END

$59.99

$

In Stock, Qty 10

0

63

Scag 43243

SPACER

$33.99

$

Usually ships in 2-12 days

0

64

Scag 46460

PUSH ARM(INCLUDES 25, 60, 62, & 65)
(Superseded to 461516)

$216.99

$

In Stock, only 4 left!

0

65

Scag 48100-06

BUSHING

$1.49

$

In Stock, Qty 9

0

66

Scag 45332

PUSH ARM SHAFT
(Superseded to 451240)

$53.99

$

In Stock, Qty 11

0

67

Scag 46400

CUTTER SPINDLE ASSY(COMPLETE, TAPERED)

$

$

Not available

68

HEX HEAD BOLT, 1/4-20 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

69

Scag 04050-04

RETAINING RING, 1" EXT INVERTED

$1.99

$

In Stock, Qty 7

0

70

Scag 48668

BEARING & CUP, TAPERED SPINDLE

$24.99

$

In Stock, Qty 20+

0

71

Scag 41008

SPINDLE HOUSING, TAPERED SPINDLE
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

72

Scag 48114-02

GREASE FITTING

$1.99

$

In Stock, only 3 left!

0

73

Scag 45391

SPINDLE SHAFT, TAPERED SPINDLE
(Superseded to 43275)

$68.99

$

Usually ships in 2-12 days

0

74

Scag 48677

RELIEF FITTING, TAPERED SPINDLE

$9.49

$

In Stock, only 1 left!

0

75

Scag 421139

BELT COVER - RH

$

$

Not available

75A

Scag 421138

BELT COVER - LH

$

$

Not available

76

Scag 04063-08

KEY, 1/4 X 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

77

HEX HEAD BOLT, 5/16-18 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

78

Scag 43235

SPACER-USE WITH TAPER BEARING SPINDLE
(Superseded to 43591)

$11.99

$

Usually ships in 2-12 days

0

?79

Scag 48111

CUTTER BLADE
(Superseded to 481708)

$27.99

$

In Stock, Qty 20+

0

80

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

81

Scag 04050-05

RETAINING RING 1-1/8" EXT. E

$0.99

$

In Stock, Qty 20+

0

?82

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

83

Scag 04041-12

3/8 FLATWASHER, 3/8 X 1-1/2 X .06

$0.99

$

In Stock, Qty 11

0

84

HEX NUT, 3/8-24 UNF

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

85

Scag 48681

SEAL, CUTTER SPINDLE, TAPERED
(Superseded to 481024)

$4.99

$

In Stock, Qty 20+

0

86

Scag 43218

SPACER, TAPERED SPINDLE

$8.99

$

Usually ships in 2-12 days

0

87

Scag 43217

BUSHING, TAPERED SPINDLE

$15.99

$

Usually ships in 2-12 days

0

88

Scag 43201

1/4" BLADE SPACER, TAPERED SPINDLE

$20.99

$

Usually ships in 2-12 days

0

89

ROLL PIN, 1/8 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

90

Scag 04040-10

FLAT WASHER 5/8 X .688 X .1.75 X .134

$0.99

$

In Stock, Qty 20+

0
