STZ-20KH - Scag STZ Zero-Turn Mower, 20hp Kohler (SN: 30000 - 39999) TRACTION DRIVE COMPONENTS Parts Diagram

STZ Zero-Turn Mower, 20hp Kohler

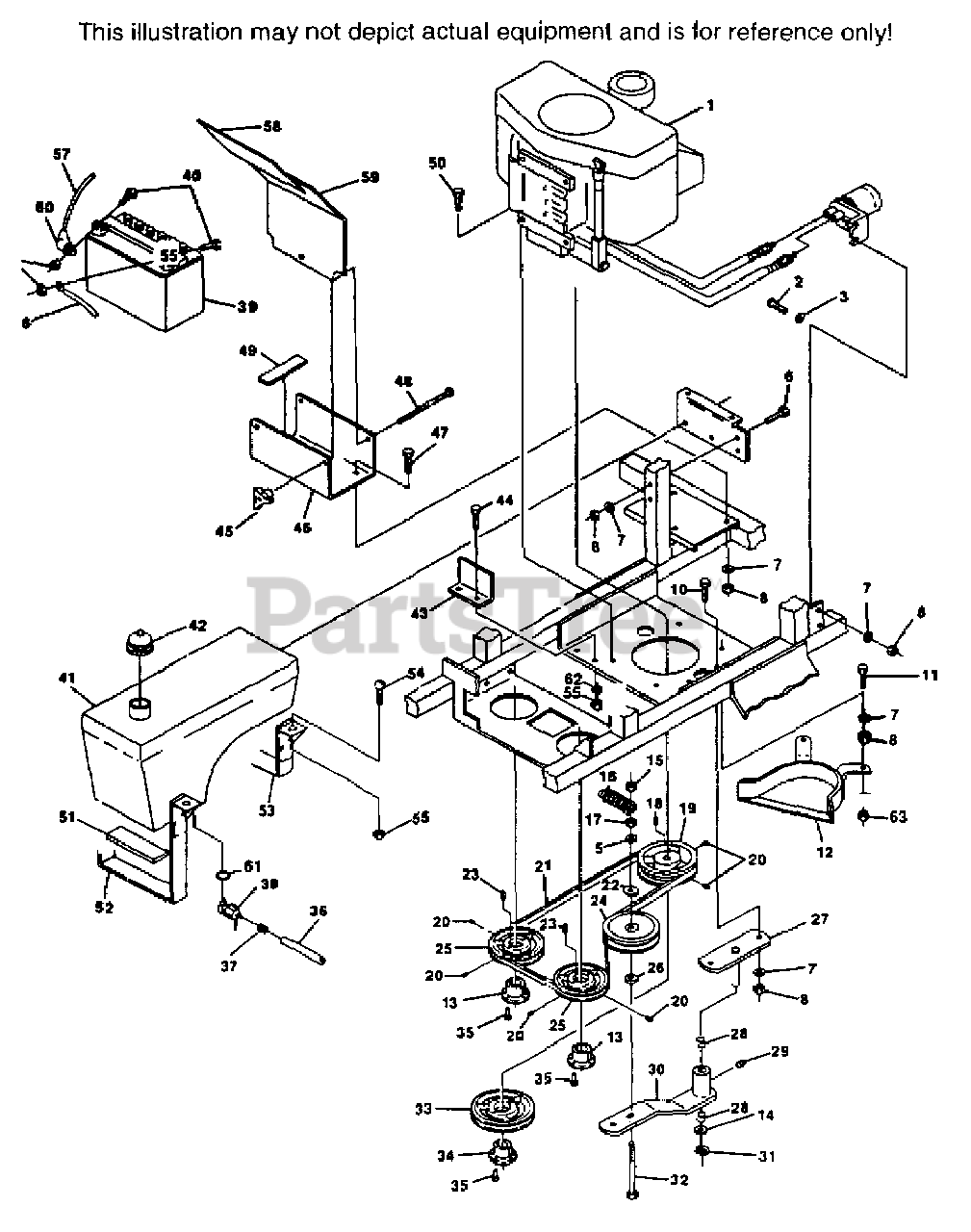

TRACTION DRIVE COMPONENTS Parts Diagram

  • Title

1

Scag 48558

ENGINE, 20 HP KOHLER

$

$

Not available

2

CARRIAGE BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

3

FLAT WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?4

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

LOCKWASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

6

HEX HEAD BOLT, 5/16-18 X 2-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

8

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?9

CENTER LOCKNUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

HEX HEAD BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

HEX HEAD BOLT, 5/16-18 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 45352

BELT GUIDE

$

$

Not available

13

Scag 48761

TAPERED HUB, 3/4" BORE

$38.99

$

Usually ships in 2-12 days

0

14

Scag 04041-08S

WASHER

$0.99

$

In Stock, Qty 20+

0

15

ELASTIC STOP NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

Scag 48755

SPRING, IDLER ARM

$10.99

$

In Stock, Qty 6

0

17

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

Scag 04063-11

KEY, 1/4 X 1/4 X 2-1/2"

$5.49

$

Usually ships in 2-12 days

0

19

Scag 48747

PULLEY, ENGINE - PUMP DRIVE

$48.99

$

Usually ships in 2-12 days

0

20

Scag 04012-04

SETSCREW, 5/16-18 X 3/8 HEX SOCKET HEAD

$0.99

$

In Stock, Qty 12

0

21

Scag 48749

BELT, PUMP DRIVE

$51.99

$

In Stock, only 1 left!

0

22

FLAT, WASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

23

Scag 04063-12

KEY, WOODRUFF #61

$0.99

$

In Stock, Qty 18

0

24

Scag 48068

PULLEY, IDLER PUMP DRIVE

$44.99

$

In Stock, only 1 left!

0

25

Scag 48748

PULLEY, PUMP SHAFT

$95.99

$

Usually ships in 2-12 days

0

26

FLAT WASHER, 3/8 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

27

Scag 45212

IDLER PIVOT

$36.99

$

Usually ships in 2-12 days

0

28

Scag 48100-05

BUSHING

$0.99

$

In Stock, Qty 18

0

29

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

30

Scag 46467

IDLER ARM(INCLUDES BUSHINGS & GREASE FTG.)

$80.99

$

Usually ships in 2-12 days

0

31

Scag 04050-02

RETAINING RING, 3/4 EXTERNAL "E"

$0.99

$

In Stock, Qty 10

0

32

Scag 04001-81

HEX HEAD BOLT, 3/8-16 X 3-1/2 FULL THREAD

$2.49

$

In Stock, only 1 left!

0

33

Scag 48378

PULLEY, ENGINE - CUTTER DRIVE

$

$

Not available

34

Scag 48378-03

HUB, PULLEY
(Superseded to 48926)

$

$

Not available

35

HEX HEAD BOLT, 1/4-20 X 1-3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

36

Scag 48058-02

FUEL HOSE, 10" LONG
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

37

Scag 48059-01

CLAMP, FUEL HOSE

$0.99

$

In Stock, Qty 20+

0

38

Scag 48568

FUEL SHUT OFF VALVE

$27.99

$

In Stock, only 1 left!

0

39

Scag 48015

BATTERY

$

$

Not available

40

HEX HEAD BOLT, 1/4-20 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

41

Scag 48651

FUEL TANK

$213.99

$

Usually ships in 2-12 days

0

42

Scag 48658

FUEL TANK CAP W/GUAGE
(Superseded to 483787)

$61.99

$

In Stock, only 1 left!

0

43

Scag 42918

HEAT DEFLECTOR

$

$

Not available

44

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

Scag 04029-01

WINGNUT, 1/4-20

$2.49

$

In Stock, only 4 left!

0

?46

Scag 42802

PLATE, BATTERY BOX
(Superseded to 423308)

$54.99

$

Usually ships in 2-12 days

0

47

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

48

CARRIAGE BOLT, 1/4-20 X 6"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

In Stock, only 2 left!

0

50

HEX HEAD BOLT, 5/16-18 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

Scag 48657

RUBBER PADS, GAS TANK

$5.99

$

Usually ships in 2-12 days

0

52

Scag 42944

FUEL TANK STRAP, LONG

$26.99

$

Usually ships in 2-12 days

0

53

Scag 42945

FUEL TANK STRAP

$16.99

$

Usually ships in 2-12 days

0

54

MACHINE SCREW, 1/4-20 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

55

NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?56

Scag 48029-01

BATTERY CABLE, BLACK 13-3/4"

$9.99

$

Usually ships in 2-12 days

0

57

Scag 48029-02

BATTERY CABLE, RED 30-3/4"

$16.99

$

Usually ships in 2-12 days

0

58

Scag 48099

BATTERY COVER PAD

$5.99

$

Usually ships in 2-12 days

0

59

Scag 42392

BATTERY COVER

$47.99

$

Usually ships in 2-12 days

0

60

Scag 48126

RUBBER BOOT

$8.99

$

Usually ships in 2-12 days

0

61

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

62

SPRING ANCHOR BOLT, 3/8-16 X 1-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

63

UNKNOWN

$

$

Not available
