STZ52-20KH - Scag STZ 52" Zero-Turn Mower, 20hp Kohler INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

STZ 52" Zero-Turn Mower, 20hp Kohler

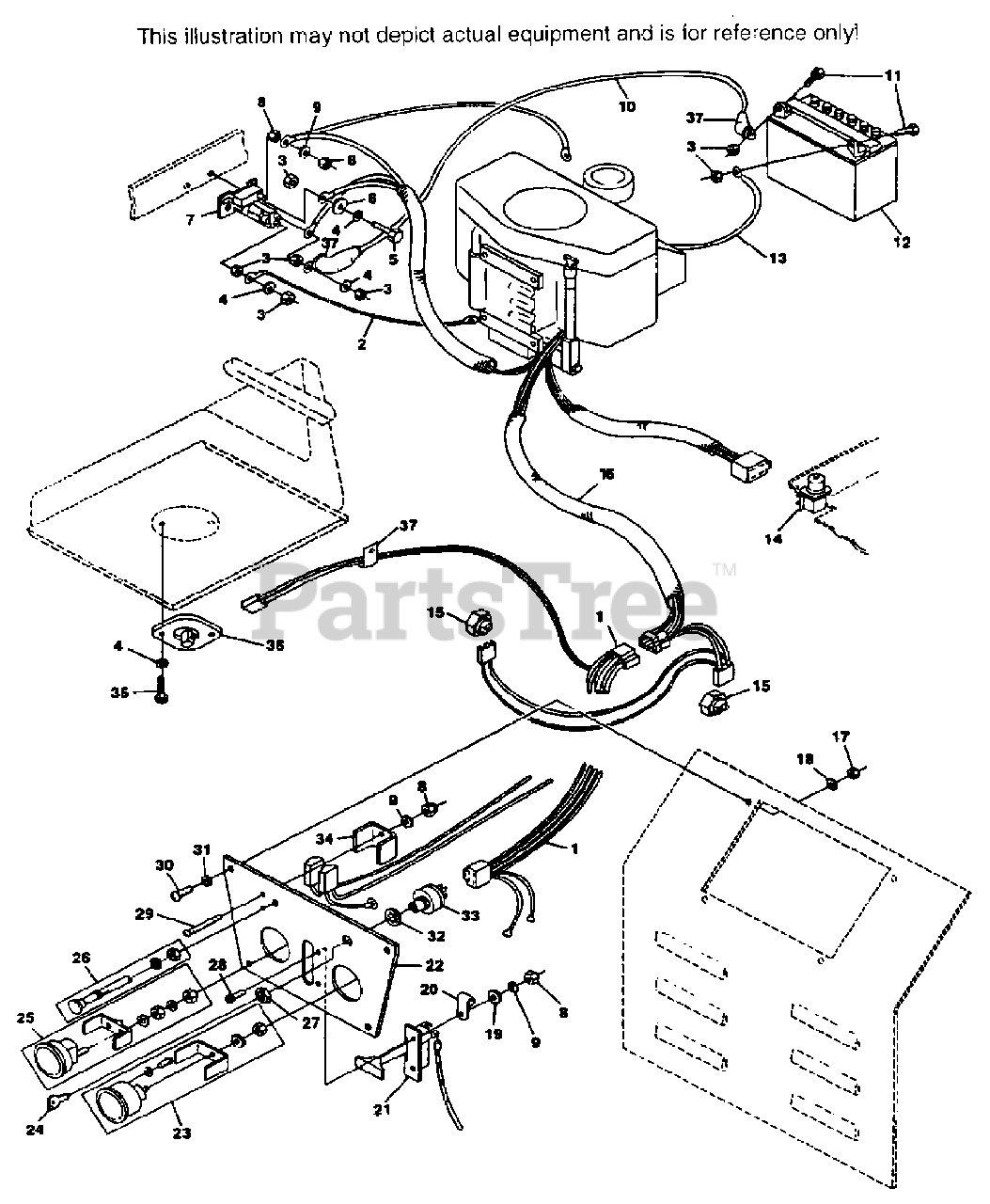

INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

  • Title

1

Scag 48518

WIRE HARNESS, INSTERMENT PANEL

$90.99

$

Usually ships in 2-12 days

0

2

Scag 48029-09

BATTERY CABLE - 9"(RED)

$10.99

$

Usually ships in 2-12 days

0

3

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

LOCKWASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

HEX HEAD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

6

FLAT WASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 48016

SOLENOID

$88.99

$

Usually ships in 2-12 days

0

8

HEX NUT, # 10-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

LOCKWASHER, # 10 EXTERNAL TOOTH

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

Scag 48029-02

BATTERY CABLE - 30-3/4"(RED)

$16.99

$

Usually ships in 2-12 days

0

11

HEX HEAD BOLT, 1/4-20 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 48015

BATTERY

$

$

Not available

13

Scag 48029-01

BATTERY CABLE - 13-3/4"(BLACK)

$9.99

$

Usually ships in 2-12 days

0

14

Scag 48522

SWITCH, CUTTER DECK ENGAGE
(Superseded to 481474)

$106.99

$

In Stock, only 3 left!

0

15

Scag 48231

SWITCH, NEUTRAL(N/O)

$39.99

$

Usually ships in 2-12 days

0

16

Scag 48595

WIRE HARNESS - LOWER

$95.99

$

Usually ships in 2-12 days

0

17

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

LOCKWASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

UNKNOWN

$

$

Not available

20

UNKNOWN

$

$

Not available

21

Scag 48519

THROTTLE CONTROL
(Superseded to 48090)

$61.99

$

In Stock, only 1 left!

0

22

Scag 42762

INSTRUMENT PANEL

$

$

Not available

23

Scag 48023

HOURMETER(INCLUDES HARDWARE)

$195.99

$

In Stock, only 1 left!

0

24

Scag 48017-02

IGNITION KEY

$4.49

$

In Stock, Qty 7

0

25

Scag 48022

AMMETER(INCLUDES HARDWARE)
(Superseded to 481755)

$28.99

$

Usually ships in 2-12 days

0

26

Scag 48091

CHOKE CONTROL

$51.99

$

Usually ships in 2-12 days

0

27

Scag 48017-04

HEX NUT, 5/8-11

$1.99

$

In Stock, Qty 5

0

28

SCREW, PHILLIPS WASHER HD # 10-32 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

29

SCREW, PHILLIPS WASHER HD, # 10-32 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

SCREW, BUTTON HEAD SOCKET, 5/16-18 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

31

FLAT WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

32

Scag 48017-03

LOCKWASHER, 5/8 INTERNAL TOOTH

$0.99

$

In Stock, Qty 7

0

33

Scag 48017

SWITCH, IGNITION

$23.99

$

Usually ships in 2-12 days

0

34

Scag 42413

BRACKET, FUSE HOLDER

$41.99

$

Usually ships in 2-12 days

0

35

SCREW, PHILLIPS ROUND HEAD, 1/4-20 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

36

Scag 48591

SWITCH, SEAT

$27.99

$

Usually ships in 2-12 days

0

37

Scag 48126

RUBBER BOOT

$8.99

$

Usually ships in 2-12 days

0

?38

Scag 48030-09

CLAMP

$1.49

$

In Stock, only 4 left!

0
