Sulky - Exmark Sulky for EZ Riders (SN: 510000 - 599999) (2005)

Sulky for EZ Riders

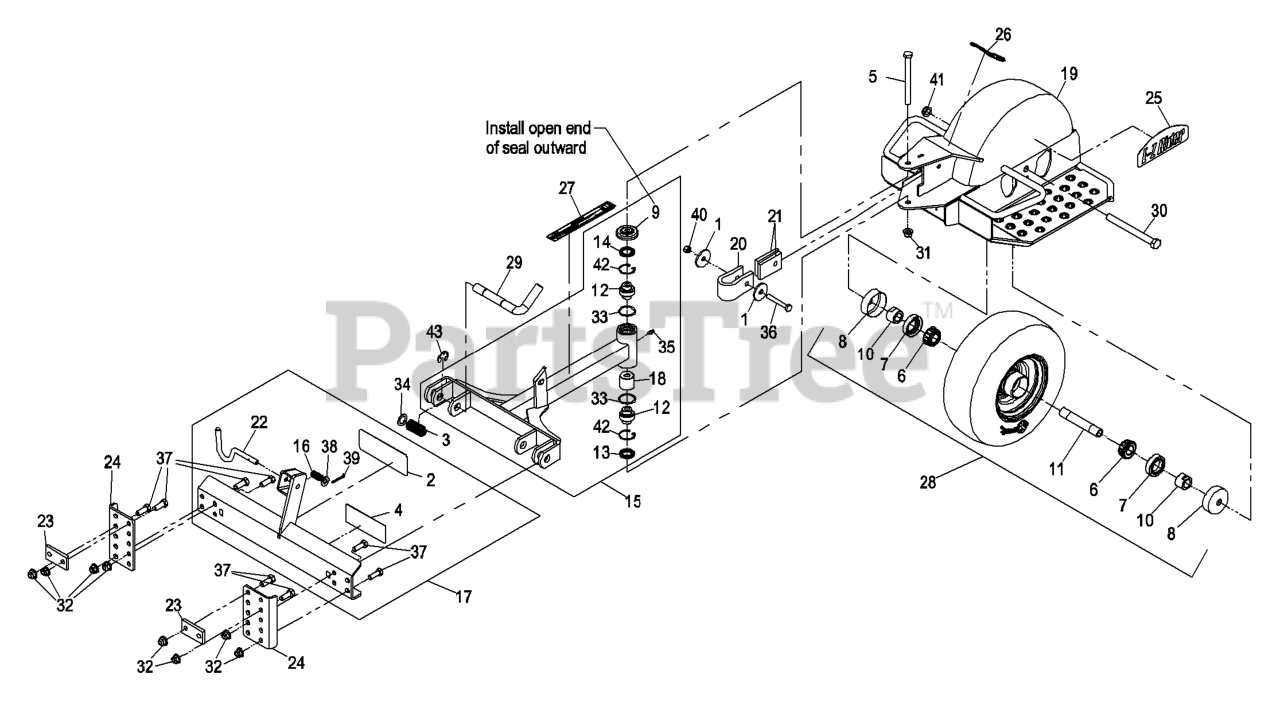

Sulky - Exmark Sulky for EZ Riders (SN: 510000 - 599999) (2005) > Parts Diagrams (1) > General Assembly

  • Title
1-213069

1

Washer, Special

Part# 1-213069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-303517

2

Decal, Belt Drive

Part# 1-303517

Note: One of each decal is shipped loose to be placed on Turf Tracer and Viking Hydro mowers only.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

1-373054

3

Spring, Hitch Release

Part# 1-373054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-403143

4

Decal, Sulky Warning

Part# 1-403143

Note: One of each decal is shipped loose to be placed on Turf Tracer and Viking Hydro mowers only.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

33115-120

5

Screw, Hh M10-1.5 X 120mm

Part# 33115-120

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.12

1-633585

6

Bearing, Cone Tapered

Part# 1-633585

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.96

103-0063

7

Seal, Double Lip

Part# 103-0063

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

103-2768

8

Guard, Seal

Part# 103-2768

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

103-2916

9

Guard, Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-3051

10

Spacer, Nut

Part# 103-3051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

103-3157

11

Axle, Caster

Part# 103-3157 (Superseded to 126-5359)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

103-3504

12

Bearing, Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.76

103-3505

13

Seal, Double Lip

Part# 103-3505

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

103-3506

14

Seal, Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

103-9589

15

Kit, Pull Arm W/Brgs & Decal

Part# 103-9589

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $198.97

103-6643

16

Spring, Lock Pin

Part# 103-6643

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

103-6646

17

Asm, Frame Pull W/Decals

Part# 103-6646

Note: Does not include screw item # 37.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $188.37

103-6647

18

Spacer, Ball Pivot

Part# 103-6647

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.29

103-9590

19

Asm, Sulky Frame W/Decals

Part# 103-9590

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $328.48

103-6652

20

Stop, Rotation

Part# 103-6652 (Superseded to 126-9101)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-6654

21

Pad, Stop

Part# 103-6654

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-6656

22

Pin, Latch

Part# 103-6656

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.58

103-6663

23

Plate, Back-Up

Part# 103-6663

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-6675-01

24

Plate, Adapter

Part# 103-6675-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.58

103-8844

25

Decal, Ez-Rider

Part# 103-8844

OEM Warranty Repair Part for Exmark

Not available

103-8845

26

Decal, Exmark

Part# 103-8845

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.87

103-9141

27

Decal, Sulky

Part# 103-9141

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.69

103-9591

28

Asm, Caster Wheel

Part# 103-9591

Note: Includes screw item #30 and nut item #41.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $190.05

103-9169

29

Pin, Lift Arm

Part# 103-9169

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

103-9508

30

Screw, Hh 1/2-13 X 5 1/4

Part# 103-9508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

103-9511

31

Nut, Nyloc M10-1.5 Flg

Part# 103-9511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.62

104-8301

32

Nut, Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

106-7159

33

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

107-3041

34

Washer

Part# 107-3041

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

302-19

35

Zerk, 1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

322-11

36

Screw, Hh 5/16-18 X 2 1/4

Part# 322-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

323-7

37

Screw, Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3256-24

38

Washer, 3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

3272-11

39

Pin, Cotter 1/8 X 1

Part# 3272-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

3296-29

40

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

3296-45

41

Nut, Nyloc 1/2-13

Part# 3296-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.84

32120-10

42

Ring, Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

32120-19

43

E-Ring

Part# 32120-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02
