SUPER 2 (UT-10552) - Homelite Chainsaw Figure B Parts Diagram

Chainsaw

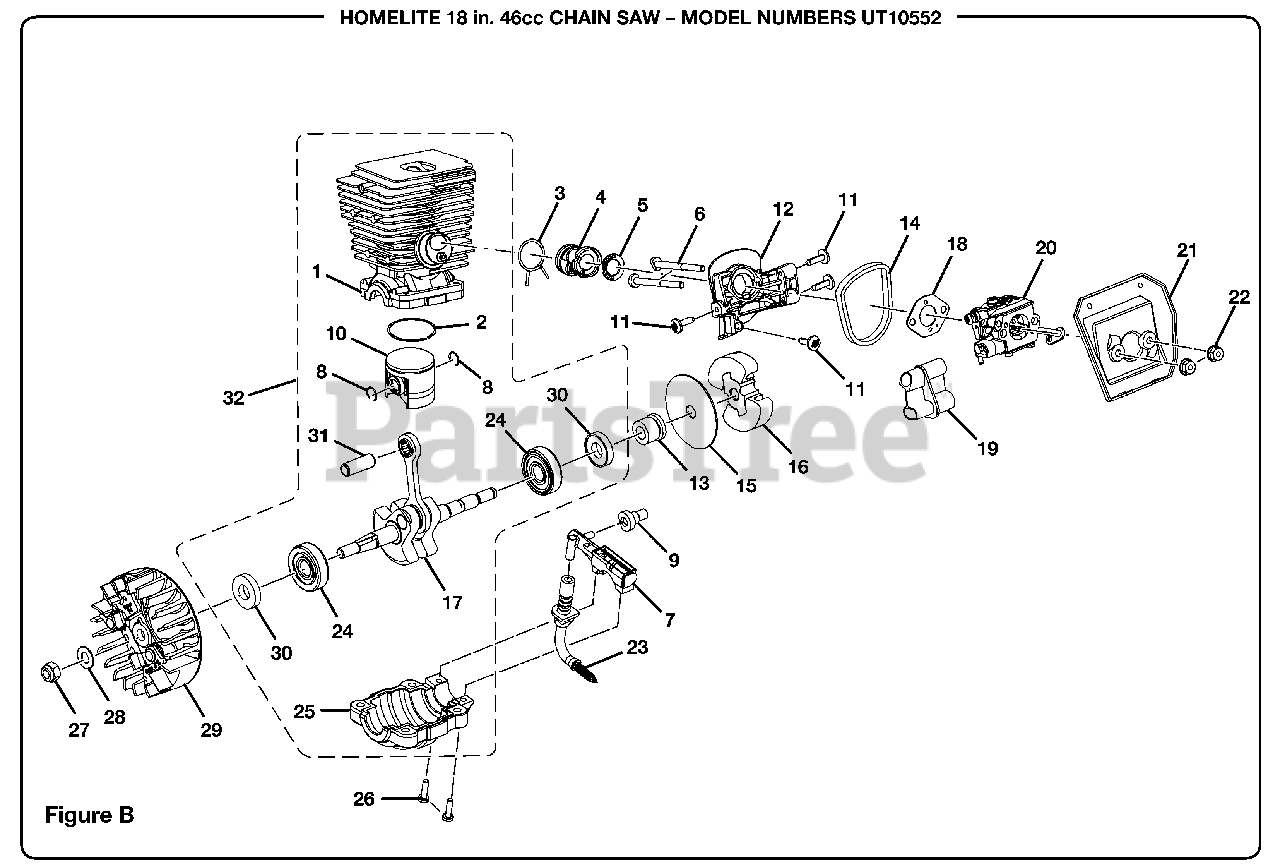

Figure B Parts Diagram

  • Title

1

Homelite 640982004

Cylinder

$67.99

$

Usually ships in 3-7 days

0

2

Homelite 678182001

Piston Ring

$

$

Not available

3

Homelite 671168001

Wire Clamp

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 570662001

Intake Boot Rubber

$

$

Not available

5

Homelite 518490001

Carburetor Plate

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660879001

Screw (10-24 x 2-1/4 in.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 300945001

Oil Pump Assembly
(Superseded to PA01396)

$

$

Not available

8

Homelite 678183001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 570597001

Oil Outlet Grommet

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 640975002

Piston (46cc)

$

$

Not available

11

Homelite 660632001

Screw (10-14 x 5/8 in. Torx Pan Hd.)
(Superseded to 82621)

Note: Purchase locally

$

$

Not available

12

Homelite 518245001

Carburetor Spacer

$2.99

$

Usually ships in 3-7 days

0

13

Homelite T610389001

Left Hand Worm

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 570577001

Spacer Seal

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 631061001

Thrust Washer

$1.49

$

In Stock, only 3 left!

0

16

Homelite 300960003

Clutch Assembly

$

$

Not available

17

Homelite 308290001

Crankshaft Assembly

$

$

Not available

18

Homelite 900843001

Carburetor Gasket

$

$

Not available

19

Homelite 518312001

Carburetor Grommet

$

$

Not available

20

Homelite 308370001

Carburetor Assembly

$

$

Not available

21

Homelite 518360001

Air Filter Plate

$

$

Not available

22

Homelite 678033001

Flange Nut (10-24)
(Superseded to 07589)

Note: Purchase locally

$1.49

$

In Stock, only 1 left!

0

23

Homelite 308291001

Oil Intake Tube with Spring

$

$

Not available

24

Homelite 308007001

Bearing Case with Bearing

$

$

Not available

25

Homelite 640957001

Crankcase

$

$

Not available

26

Homelite 660627001

Screw (8-32 X 5/8 in. Pan Hd.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 678123001

Nut (5/16-24)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 631049001

Flat Washer
(Superseded to PS84065)

$

$

Not available

29

Homelite 308631001

Rotor Assembly

$16.99

$

Usually ships in 3-7 days

0

30

Homelite 570220001

Shaft Seal

$

$

Not available

31

Homelite 620392001

Piston Pin

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 300984004

Short Block Assembly

Note: Inc. Key Nos. 1, 2, 8, 10, 17, 24, 25, 30 and 31

$175.99

$

Usually ships in 3-7 days

0
