SV 21P (82953) - Snapper 21" Walk-Behind Mower, 3.5hp Transmission Assembly Parts Diagram

21" Walk-Behind Mower, 3.5hp

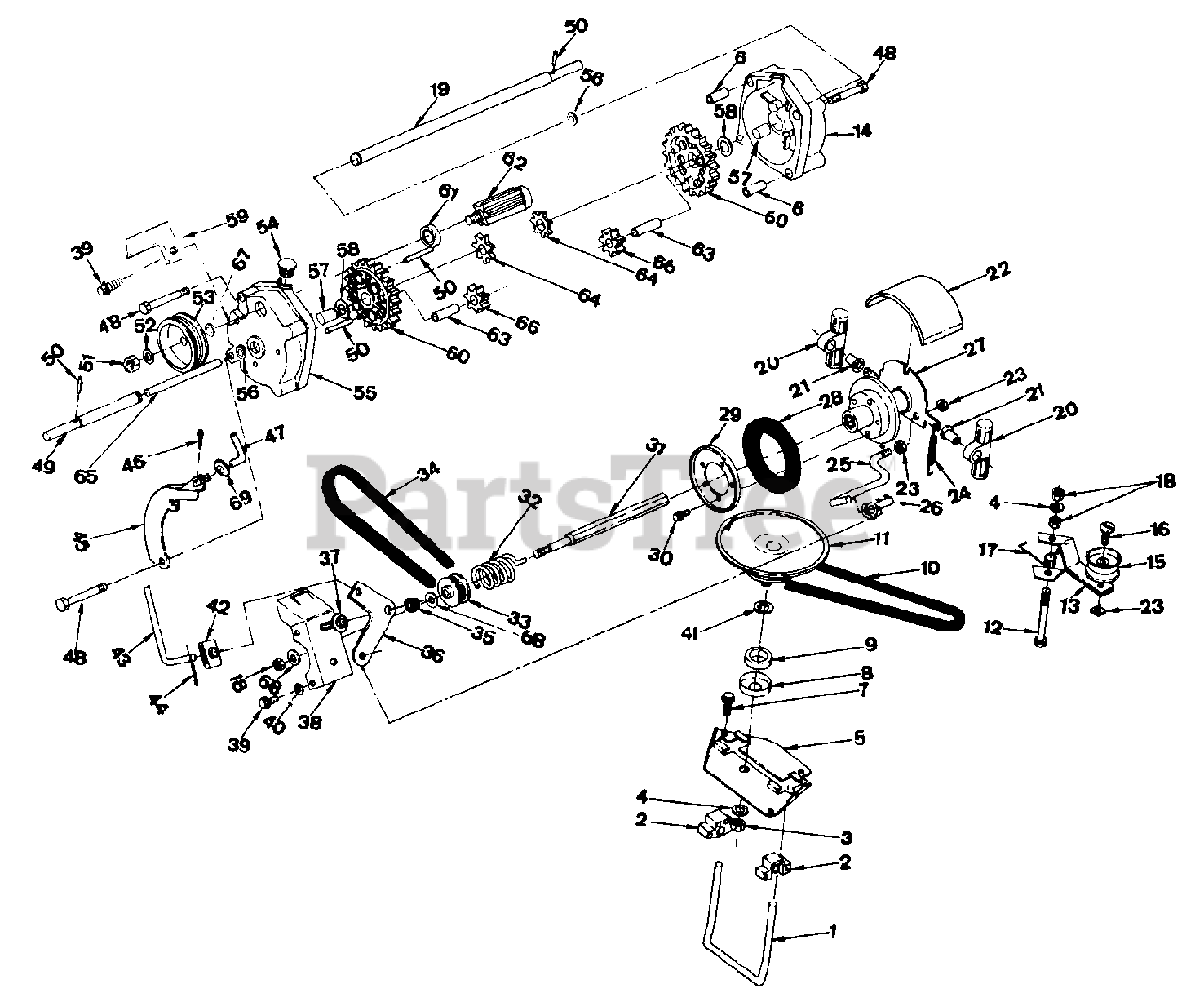

Transmission Assembly Parts Diagram

  • Title

1

Snapper 11112

Shift Fork

$

$

Currently unavailable

2

Snapper 10955

Pillow Block

$

$

Currently unavailable

3

Snapper 7091630

3/8-24 Hex Nut
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, Qty 8

0

4

Snapper 7090390

3/8 Int. Tooth L'Washer
(Superseded to 703930)

$4.49

$

In Stock, Qty 7

0

5

Snapper 37310

Disc Plate

$

$

Currently unavailable

6

Snapper 7010826

Roll Pin

$

$

Currently unavailable

7

Snapper 7090361

5/16-18 x 5/8 HWST
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

8

Snapper 7031122

Bearing Shield

$

$

Not available

9

Snapper 7011032

Felt Seal
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7010849

3L 255 V Belt
(Superseded to 7010849YP)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper 7050634

Drive Disc Ass'y.
(Superseded to 7050634YP)

Note: Was 50301 (Now 50634 & 12508)

$165.99

$

Usually ships in 2-12 days

0

12

Snapper 7090174

3/8-24 x 3 HHCS

$

$

Currently unavailable

13

Snapper 7031936

Idler Arm
(Superseded to 7031936YP)

Note: Was 31006

$39.99

$

Usually ships in 2-12 days

0

14

Snapper 18050

Out Board Housing

$

$

Currently unavailable

15

Snapper 7010948

Idler Pulley
(Superseded to 1716615SM)

$22.99

$

Usually ships in 2-12 days

0

16

Snapper 7090387

1/4-28 x 1 1/2 FHMS

$

$

Not available

17

Snapper 10947

Idler Spring

$

$

Currently unavailable

18

Snapper 7090289

3/8-24 Hex L'Nut
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

19

Snapper 21131

Long Axle
(Superseded to 5021131)

$24.99

$

Usually ships in 2-12 days

0

20

Snapper 11109

Slide Block

$

$

Currently unavailable

21

Snapper 11115

Pivot Bearing

$

$

Currently unavailable

22

Snapper 7011119

Cover
(Superseded to 7011119YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7090303

1/4-28 Hex L'Nut
(Superseded to 703972)

$3.49

$

In Stock, only 2 left!

0

24

Snapper 7011126

Clutch Spring
(Superseded to 7011126YP)

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 10930

Clutch Rod

$

$

Currently unavailable

26

Snapper 7010937

Clutch Rod Clip
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 9

0

27

Snapper 7050300

Driven Disc Ass'y.
(Superseded to 7050300YP)

$56.99

$

Usually ships in 2-12 days

0

28

Snapper 7023364

RING, Driven (Rubber Disc)
(Superseded to 704059)

Note: Was 10927

$14.99

$

In Stock, Qty 20+

0

29

Snapper 7031013

Tire Plate
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 6

0

30

Snapper 7091075

10-24 x 5/8 SEMS St.
(Superseded to 7091075SM)

Note: Was 90363

$4.49

$

In Stock, Qty 9

0

31

Snapper 7021117

Hex Shaft
(Superseded to 7021117YP)

$35.99

$

Usually ships in 2-12 days

0

32

Snapper 11118

Rev KO Spring

$

$

Currently unavailable

33

Snapper 21114

Polly "V" Pulley, 1-9/16 Pd
(Superseded to 5021114)

$7.49

$

Usually ships in 2-12 days

0

34

Snapper 7011117

200 J6 Polly "V" Belt
(Superseded to 7011117YP)

$35.99

$

Usually ships in 2-12 days

0

35

Snapper 7010969

5/16-24 Flanged L'Nut
(Superseded to 703123)

$3.49

$

In Stock, only 4 left!

0

36

Snapper 31015

Bell Crank

$

$

Not available

37

Snapper 11114

Friction Washer

$

$

Currently unavailable

38

Snapper 40359

Bell Crank Str.

$

$

Currently unavailable

39

Snapper 7091819

1/4-20 x 5/8 SEMS St.
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

40

Snapper 90051

1/4 SAE Washer

$

$

Not available

41

Snapper 7090122

3/8 SAE Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 11116

Wear Block

$

$

Currently unavailable

43

Snapper 31007

Shift Link
(Superseded to 5031007B)

$

$

Currently unavailable

44

Snapper 7091598

Cotter Pin, 1/8 x 3/4
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, Qty 7

0

45

Snapper 37325

Transmission Release Brkt.

$

$

Currently unavailable

46

Snapper 7091598

1/8 x 3/4 Cotter Pin
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, Qty 7

0

47

Snapper 37326

Release Rod

$

$

Currently unavailable

48

Snapper 90386

1/4-20 x 2 1/2 HHCS
(Superseded to 90386GS)

$80.99

$

Usually ships in 2-12 days

0

49

Snapper 21130

Short Axle
(Superseded to 5021130)

$

$

Currently unavailable

50

Snapper 7010172

Roll Pin, 3/16 x 1 5/8

$1.99

$

In Stock, only 1 left!

0

51

Snapper 7090377

7/16-20 Hex Nut
(Superseded to 7090377SM)

Note: Was 90394

$5.49

$

In Stock, Qty 20+

0

52

Snapper 7011079

Spring Washer
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

53

Snapper 7010936

Polly "V" Pulley
(Superseded to 7010936YP)

$8.49

$

Usually ships in 2-12 days

0

54

Snapper 7016544

Plug
(Superseded to 703931)

Note: Was 11133

$3.99

$

In Stock, Qty 16

0

55

Snapper 18048

Inboard Housing

$

$

Currently unavailable

56

Snapper 7011179

Seal
(Superseded to 7011179YP)

$11.99

$

Usually ships in 2-12 days

0

57

Snapper 7010932

Bearing
(Superseded to 7010932YP)

$3.99

$

Usually ships in 2-12 days

0

58

Snapper 7020938

Thrust Washer

$

$

Not available

59

Snapper 31289

Belt Guide

$

$

Currently unavailable

60

Snapper 10919

* NLA, USE 7060337 Kit, 46T, 12P. Gear

$

$

Currently unavailable

--

Snapper 7060337

KIT, 46T Gear

$

$

Not available

61

Snapper 7073963

Ball Bearing
(Superseded to 7073963YP)

Note: Was 11767

$13.99

$

In Stock, only 3 left!

0

62

Snapper 7050767

Input Gear Assembly
(Superseded to 7050767YP)

Note: Was 50305

$36.99

$

In Stock, only 3 left!

0

63

Snapper 7011110

Shaft
(Superseded to 7011110YP)

$4.49

$

In Stock, only 2 left!

0

64

Snapper 7021116

12T, 12P. Gear

$

$

Currently unavailable

65

Snapper 7021132

Pin
(Superseded to 7021132YP)

$62.99

$

Usually ships in 2-12 days

0

66

Snapper 7021115

12T., 12P. Penion
(Superseded to 7021115YP)

$4.49

$

In Stock, Qty 12

0

67

Snapper 7011724

Spring Washer
(Superseded to 703940)

$4.49

$

In Stock, Qty 11

0

68

Snapper 7011731

Belleville Washer

$

$

Currently unavailable

69

Snapper 7090188

5/16 SAE Washer
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7050266

Transmission Assembly

$

$

Currently unavailable
