SV 25550 HV (7085639) - Snapper Walk-Behind Vacuum, 5.5hp COMMERCIAL COMPONENTS Parts Diagram

Walk-Behind Vacuum, 5.5hp

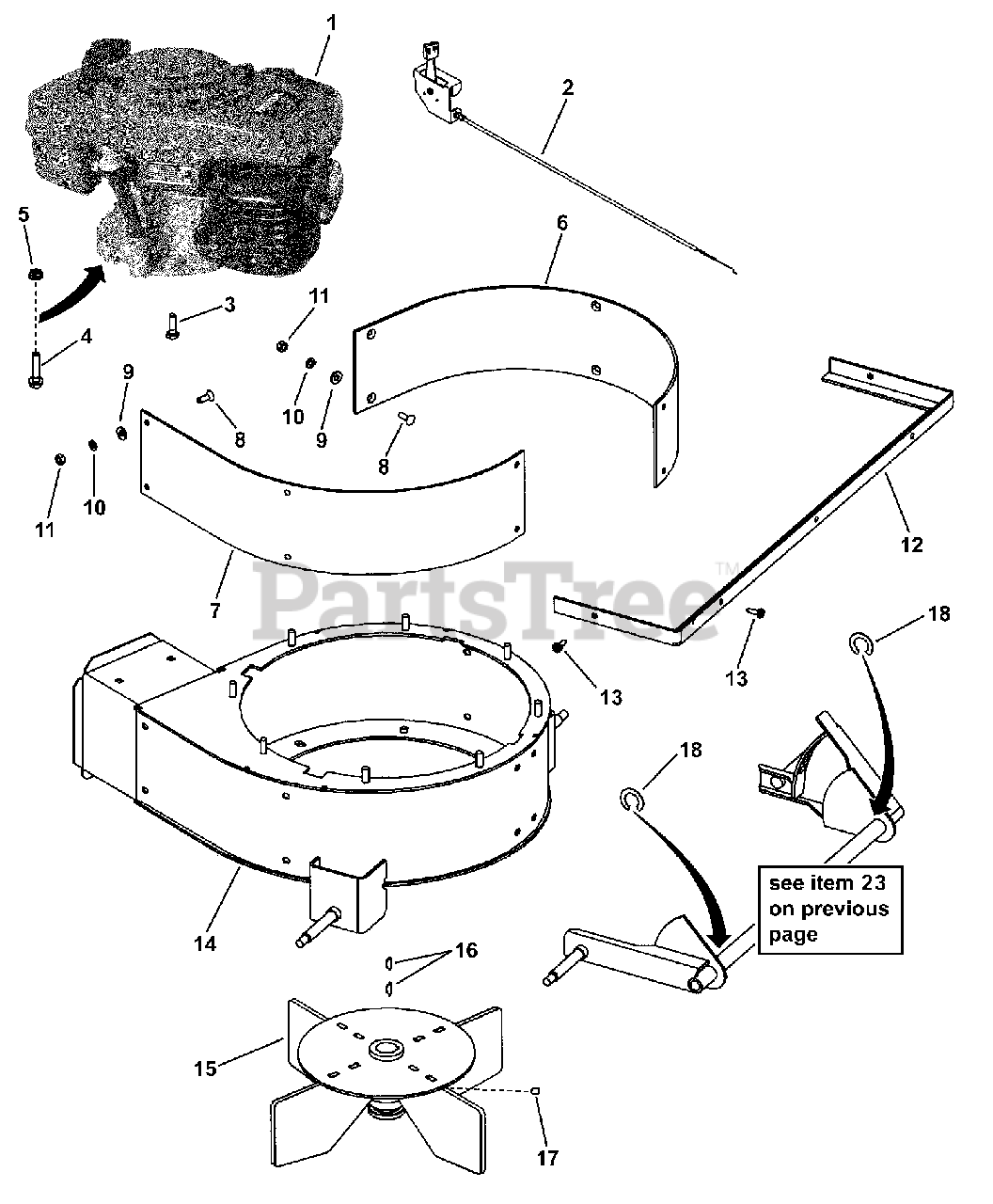

COMMERCIAL COMPONENTS Parts Diagram

  • Title

1

Snapper GXV160K1N1AH

* ENGINE, 5.5HP Honda GXV, Recoil Start, GXV160K1N1AH

$

$

Currently unavailable

2

Snapper 7075940

CABLE, Throttle, Honda
(Superseded to 7075940YP)

$26.99

$

Usually ships in 2-12 days

0

3

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

4

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

5

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7075890

LINER, Vacuum Housing L.H.
(Superseded to 7075890YP)

$61.99

$

Usually ships in 2-12 days

0

7

Snapper 7075889

LINER, Vacuum Housing R.H.
(Superseded to 7075889YP)

$56.99

$

Usually ships in 2-12 days

0

8

Snapper 7092103

SCREW, 1/4-20 x 3/4" Flat Head Machine

$

$

Currently unavailable

9

Snapper 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 10

0

10

Snapper 7027223

WASHER, .263 Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

12

Snapper 7075954

FRAME, Inlet Protection
(Superseded to 7075954YP)

$50.99

$

Usually ships in 2-12 days

0

13

Snapper 7092106

SCREW, #10 x 3/4" Hex Washer
(Superseded to 7092106YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7044891

WELDMENT, Upper Housing, Commercial
(Superseded to 7044891YP)

$598.99

$

Usually ships in 2-12 days

0

15

Snapper 7044932

WELDMENT, Impeller, Honda Commercial

$

$

Currently unavailable

16

Snapper 7010783

KEY, #55 Hi-Pro
(Superseded to 7010783YP)

$3.99

$

In Stock, only 1 left!

0

17

Snapper 7077680

SETSCREW, 1/4-20 x 3/8", Socket Head Knurled Cup Point

$

$

Not available

18

Snapper 7012271

WASHER, Shim
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0
