SV 25550 HV (7085639) - Snapper Walk-Behind Vacuum, 5.5hp HANDLES, CONTROLS, BAG Parts Diagram

Walk-Behind Vacuum, 5.5hp

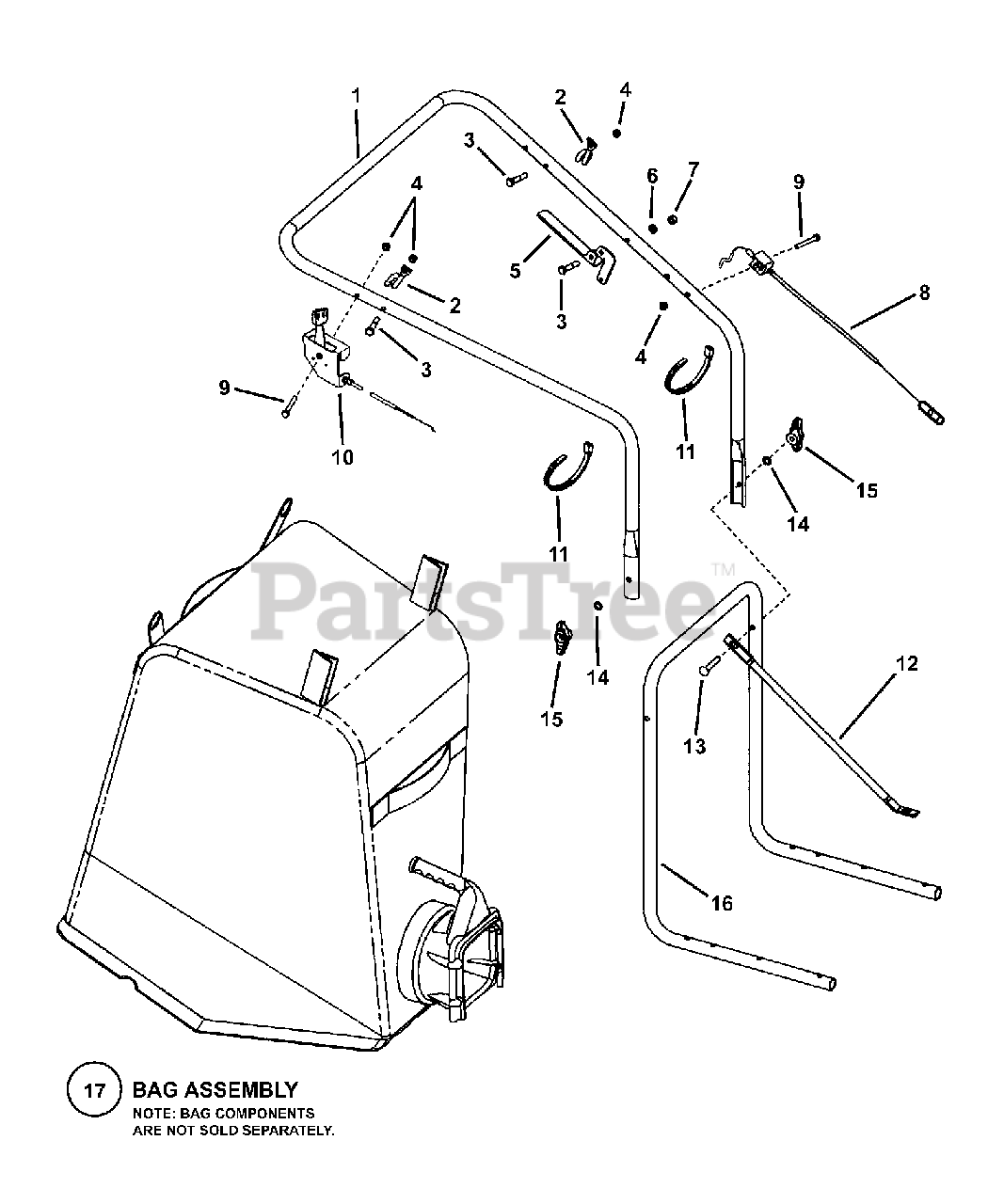

HANDLES, CONTROLS, BAG Parts Diagram

  • Title

1

Snapper 7058669

HANDLE ASSEMBLY, Upper

Note: Includes Foam Grip, Part No. 7026216)

$

$

Currently unavailable

2

Snapper 7022779

GUIDE, Pull Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

3

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

4

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7075800

HANDLE, Height Adjust
(Superseded to 7075800YP)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7075804

CABLE, Height Adjust
(Superseded to 7075804SM)

$

$

Not available

9

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7075838

CABLE, Throttle, B&S
(Superseded to 7075838YP)

$31.99

$

Usually ships in 2-12 days

0

11

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7075891

BRACE, Handle
(Superseded to 7075891YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7091930

BOLT, 5/16-18 x 2" Square Neck Carriage, GR 5
(Superseded to 7091930YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7075803

HANDLE, Lower
(Superseded to 3075803SM)

$104.99

$

Usually ships in 2-12 days

0

17

Snapper 7058942

* ASSEMBLY, Vacuum Bag
(Superseded to 7058942SM)

$

$

Not available
