SV-3 - Little Wonder Engine Engine, Crankcase, Stop Switch Parts Diagram

Engine

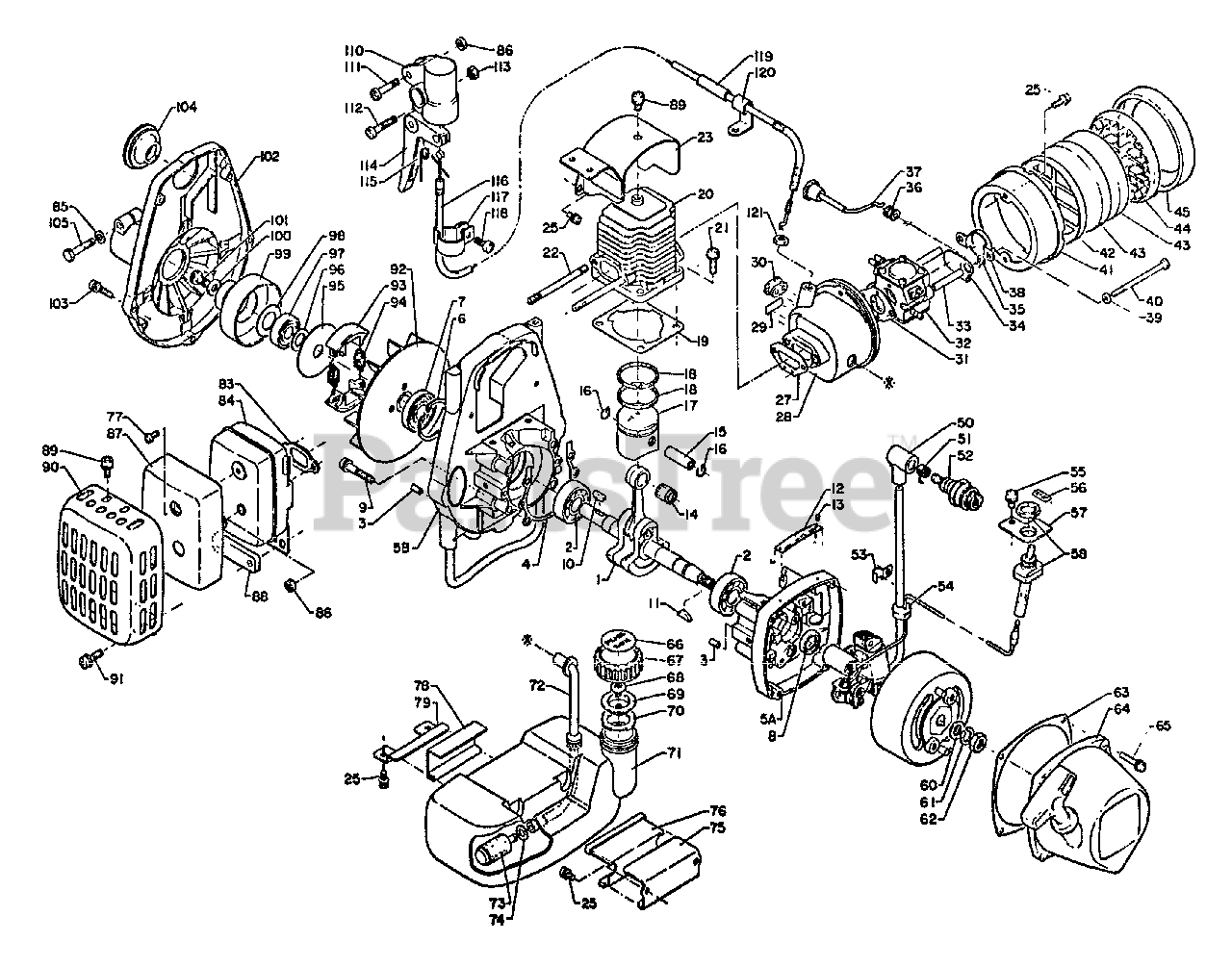

Engine, Crankcase, Stop Switch Parts Diagram

  • Title

1

Echo 10010005330

CRANKSHAFT ASSY
(Superseded to 10010005331)

$

$

Not available

2

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 2 left!

0

3

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, only 4 left!

0

4

Echo 10024204630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10020006130

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes items 5A and 5B

$

$

Not available

5A

Echo 10020006130

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 5, Crankcase set , 10020006130

$

$

Not available

5B

Echo 10020006130

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 5, Crankcase set ,P\N 10020006130

$

$

Not available

6

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

7

Echo 10021203930

SEAL, OIL

$6.49

$

In Stock, Qty 12

0

8

Echo 10021204630

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 8

0

9

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

10

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

11

Echo 10014200310

KEY

$1.99

$

Usually ships in 2-4 days

0

12

Echo 89011004620

PLATE, MODEL
(Superseded to Discontinued)

$

$

Not available

13

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

14

Echo 17501203930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

15

Echo 10001304630

PIN, PISTON
(Superseded to 10001310210)

$7.99

$

Usually ships in 2-4 days

0

16

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

17

Echo 10000005330

PISTON
(Superseded to Discontinued)

$

$

Not available

18

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 10

0

19

Echo 10101004630

GASKET, CYLINDER
(Superseded to 10101004631)

$2.49

$

Usually ships in 2-4 days

0

20

Echo 10101105330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90024005016

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10101403330

STUD
(Superseded to 10101404930)

$2.49

$

Usually ships in 2-4 days

0

23

Echo 10151405230

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

25

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

27

Echo 13001005330

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

28

Echo 13030605230

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

29

Echo 89004104320

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

30

Echo 12901005230

GROMMET

$1.99

$

Usually ships in 2-4 days

0

31

Echo 13001604630

GASKET, INTAKE
(Superseded to 13001604631)

$0.99

$

In Stock, Qty 8

0

32

Echo 12300004620

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

33

Echo 13001903930

SPACER
(Superseded to Discontinued)

$

$

Not available

34

Echo 17851504630

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

35

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

36

Echo 17881005230

GROMMET

$2.49

$

In Stock, only 4 left!

0

37

Echo 17851005230

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

38

Echo 12901104630

PLATE, PREVENT

$3.49

$

Usually ships in 2-4 days

0

39

Echo 13002903930

SPACER

$0.99

$

Usually ships in 2-4 days

0

40

Echo 13002103930

BOLT

$1.99

$

In Stock, only 4 left!

0

41

Echo 13032804620

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

42

Echo 13031904620

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

43

Echo 13031010210

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

44

Echo 13031304620

COVER, AIR FILTER

$3.99

$

In Stock, only 2 left!

0

45

Echo 13034104620

COVER, AIR FILTER

$7.49

$

In Stock, only 2 left!

0

50

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 6

0

51

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 12

0

52

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

53

Echo 15911004630

CLAMP
(Superseded to Discontinued)

$

$

Not available

54

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 8

0

55

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

56

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 6

0

57

Echo 16381006130

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

58

Echo 16340006130

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

60

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

61

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

62

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

63

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0

64

Echo 17720004520

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

65

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 16

0

66

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

Echo 13100404930

CAP ASSY
(Superseded to 13160010530)

Note: Includes ITEMS 67 - 70

$

$

Not available

67

Echo 13101704930

CAP
(Superseded to Discontinued)

$

$

Not available

68

Echo 13131400330

VENT

$13.99

$

In Stock, only 1 left!

0

69

Echo 13101504930

HOLDER, VENT
(Superseded to 13101504931)

$

$

Not available

70

Echo 13101604930

GASKET, CAP
(Superseded to 13101604931)

$

$

Not available

71

Echo 13101005230

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

72

Echo 13201005230

PIPE - FUEL
(Superseded to 13201005231)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

73

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

74

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

75

Echo 13191804630

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

76

Echo 13192405330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

77

------------------

UNKNOWN

$

$

Not available

78

Echo 13192005330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

79

Echo 13191005330

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

83

Echo 14551004630

GASKET, EXHAUST

$2.99

$

Usually ships in 2-4 days

0

84

Echo 14561005230

MUFFLER
(Superseded to Discontinued)

$

$

Not available

85

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

86

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

87

Echo 14566705230

INSULATOR
(Superseded to Discontinued)

$

$

Not available

88

Echo 14571405230

SPACER
(Superseded to Discontinued)

$

$

Not available

89

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

90

Echo 14562105230

COVER, MUFFLER
(Superseded to 14562105231)

$

$

Not available

91

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, only 4 left!

0

92

Echo 10150004630

FAN
(Superseded to Discontinued)

$

$

Not available

93

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$25.99

$

In Stock, only 2 left!

0

94

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

95

Echo 17501904630

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

96

Echo 17501504630

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

97

Echo 90080806000

BEARING, BALL - 6000
(Superseded to Discontinued)

$

$

Not available

98

Echo 17504404630

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

99

Echo 17501004632

DRUM, CLUTCH
(Superseded to 17501004633)

$36.99

$

Usually ships in 2-4 days

0

100

Echo 17501404630

WASHER - 6

$2.49

$

In Stock, Qty 20+

0

101

Echo 90010506010

SCREW - 6X10

$1.49

$

In Stock, only 3 left!

0

102

Echo 10151104521

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

103

Echo 90024204018

SCREW - 4X18

$0.99

$

In Stock, Qty 7

0

104

Echo 15901504630

SEAL, DUST

$1.99

$

Usually ships in 2-4 days

0

105

Echo 90010005025

BOLT - 5X25

$3.49

$

Usually ships in 2-4 days

0

110

Echo 17802406130

BRACKET, TRIGGER

$6.49

$

Usually ships in 2-4 days

0

111

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 13

0

112

Echo 90024005028

SCREW - 5X28

$0.99

$

In Stock, Qty 9

0

113

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

114

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

115

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, only 3 left!

0

116

Echo 17800105230

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

117

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

118

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

119

Echo 17801605330

TUBE

$1.49

$

Usually ships in 2-4 days

0

120

Echo 17812105330

CLAMP
(Superseded to Discontinued)

$

$

Not available

121

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 18

0
