SV-4 - Little Wonder Engine Engine, Crankcase, Cover Parts Diagram

Engine

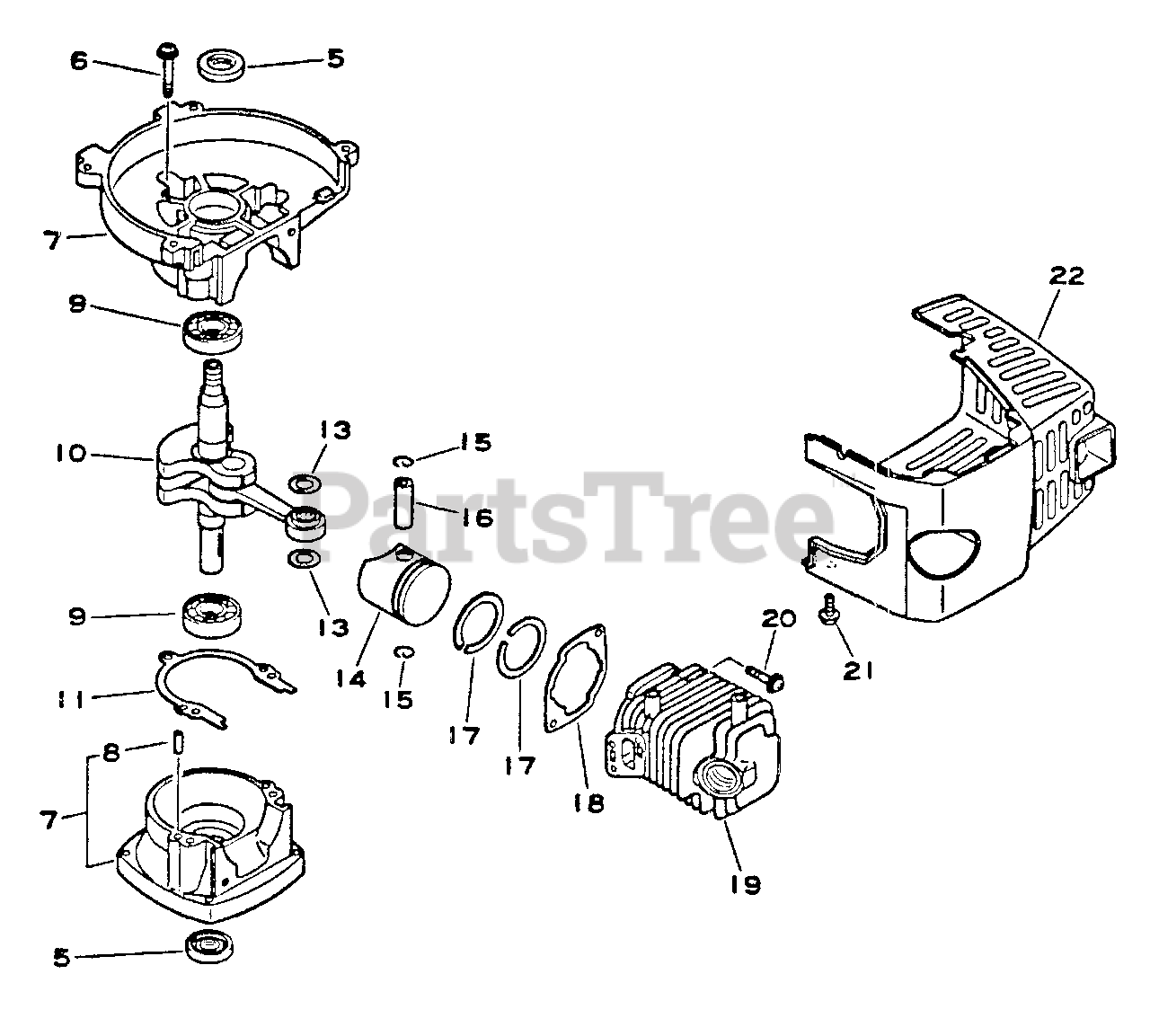

Engine, Crankcase, Cover Parts Diagram

  • Title

5

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

6

Echo 90023805028

SCREW 5×28

$0.99

$

Usually ships in 2-4 days

0

7

Echo 10020011520

CRANKCASE KIT
(Superseded to 10020411520)

$155.99

$

Usually ships in 2-4 days

0

8

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

9

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

10

Echo 10010011520

CRANKSHAFT ASSY
(Superseded to 10010011521)

$

$

Not available

11

Echo 100242-42030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 14

0

13

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, Qty 12

0

14

Echo 10001011520

PISTON
(Superseded to 10000011520)

$77.99

$

In Stock, only 2 left!

0

15

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

16

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

17

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 20+

0

18

Echo 10101042030

GASKET, CYLINDER
(Superseded to 10101042031)

$4.99

$

In Stock, Qty 20+

0

19

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$153.99

$

Usually ships in 2-4 days

0

20

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

21

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

22

Echo 10150611520

COVER, ENGINE
(Superseded to 10150611521)

$20.99

$

Usually ships in 2-4 days

0
