SV-4A - Little Wonder Engine Carburetor Parts Diagram

Engine

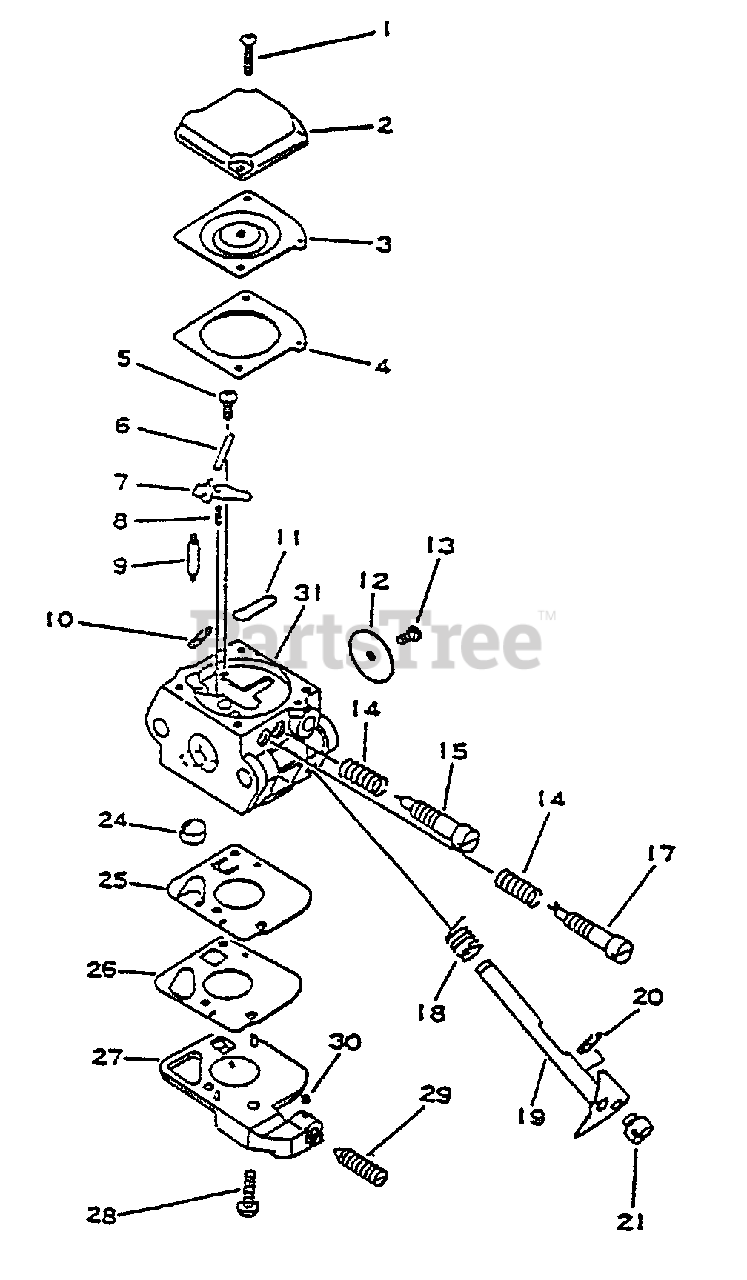

Carburetor Parts Diagram

  • Title

Echo 12520011520

CARBURETOR C1U-K10
(Superseded to 12520011521)

Note: Includes ITEMS 1-30

$

$

Not available

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534211520

COVER, METERING

$4.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: INCLUDED IN CARBURETOR DIAPHRAGM/GASKET KIT P/N 12530311520 AND CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN CARBURETOR DIAPHRAGM/GASKET KIT P/N 12530311520 AND CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 11

0

6

------------------

PIN, METERING LEVER

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

8

------------------

SPRING

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

11

------------------

PLUG, WELCH

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

12

Echo 12531642030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

13

------------------

SCREW

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

14

Echo 12531942030

SPRING

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532042030

NEEDLE - HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

17

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

18

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

19

Echo 12531742030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

21

Echo 12537242030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

24

------------------

STRAINER

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

25

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN CARBURETOR DIAPHRAGM/GASKET KIT P/N 12530311520 AND CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

26

------------------

GASKET, PURGE

Note: INCLUDED IN CARBURETOR DIAPHRAGM/GASKET KIT P/N 12530311520 AND CARBURETOR REPAIR KIT P/N 12530211520

$

$

Not available

27

Echo 12532442030

BASE, PURGE

$9.49

$

Usually ships in 2-4 days

0

28

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

------------------

UNKNOWN

$

$

Not available

Echo 12530311520

DIAPHRAGM/GASKET KIT
(Superseded to 12530351030)

$22.99

$

In Stock, only 4 left!

0

Echo 12530211520

REPAIR KIT
(Superseded to 12530011520)

$20.99

$

In Stock, only 2 left!

0
