SV-4A - Little Wonder Engine Engine, Cylinder Cover Parts Diagram

Engine

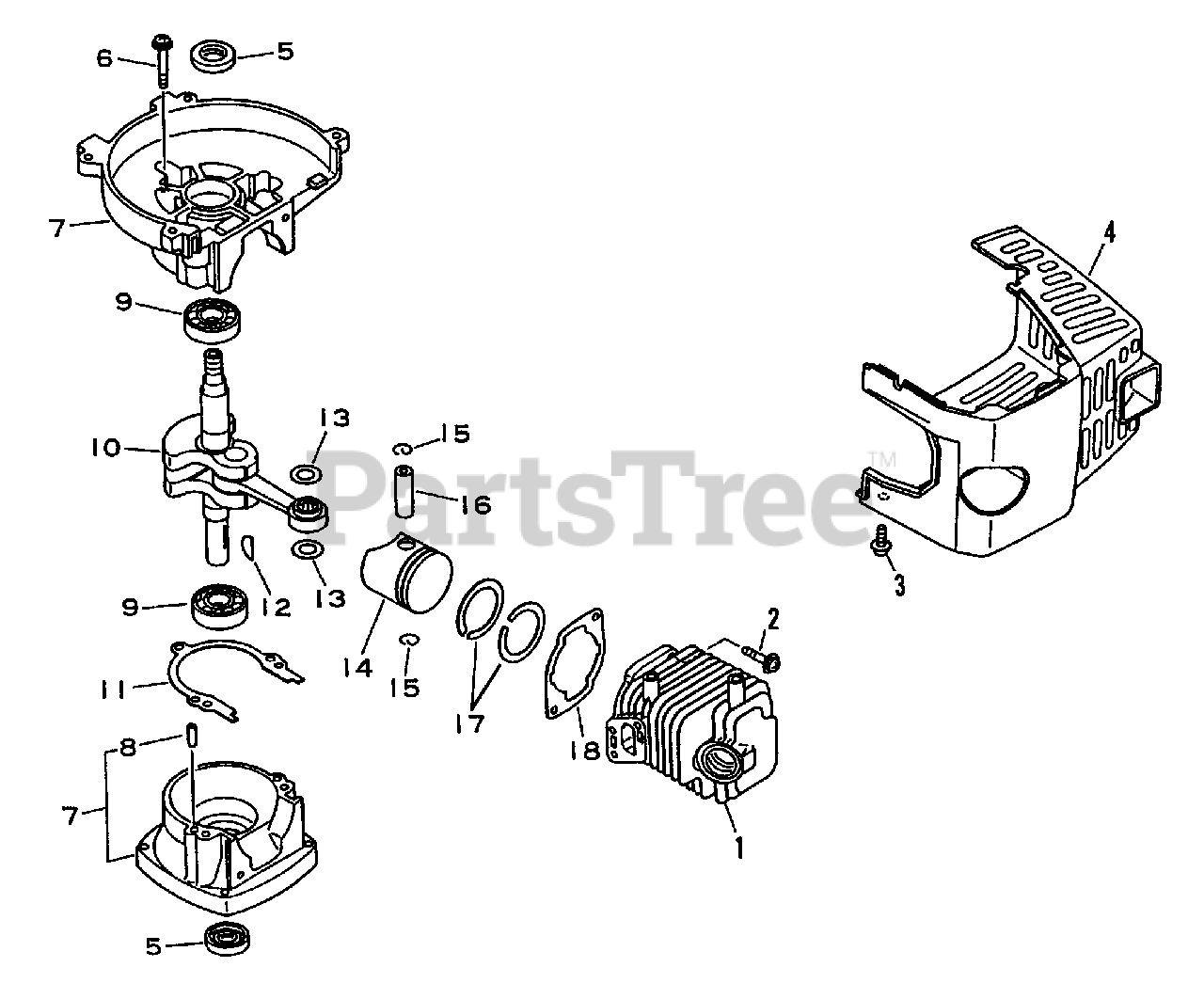

Engine, Cylinder Cover Parts Diagram

  • Title

1

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$153.99

$

Usually ships in 2-4 days

0

2

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, only 4 left!

0

3

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, only 3 left!

0

4

Echo 10150611520

COVER, ENGINE
(Superseded to 10150611521)

$20.99

$

Usually ships in 2-4 days

0

5

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

6

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

7

Echo 10020011520

CRANKCASE KIT
(Superseded to 10020411520)

Note: Includes ITEM 8

$155.99

$

Usually ships in 2-4 days

0

8

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

9

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

10

Echo 10010011520

CRANKSHAFT ASSY
(Superseded to 10010011521)

Note: Includes ITEM 19

$

$

Not available

11

------------------

GASKET, CRANKCASE

Note: USE KIT 88900042031

$

$

Not available

12

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

13

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

14

Echo 10001011520

PISTON
(Superseded to 10000011520)

$77.99

$

In Stock, only 2 left!

0

15

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

16

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

17

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

18

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: USE KIT 88900042031

$4.99

$

In Stock, Qty 12

0

19

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

$19.99

$

In Stock, only 2 left!

0
