SV-4A - Little Wonder Engine Fuel System Parts Diagram

Engine

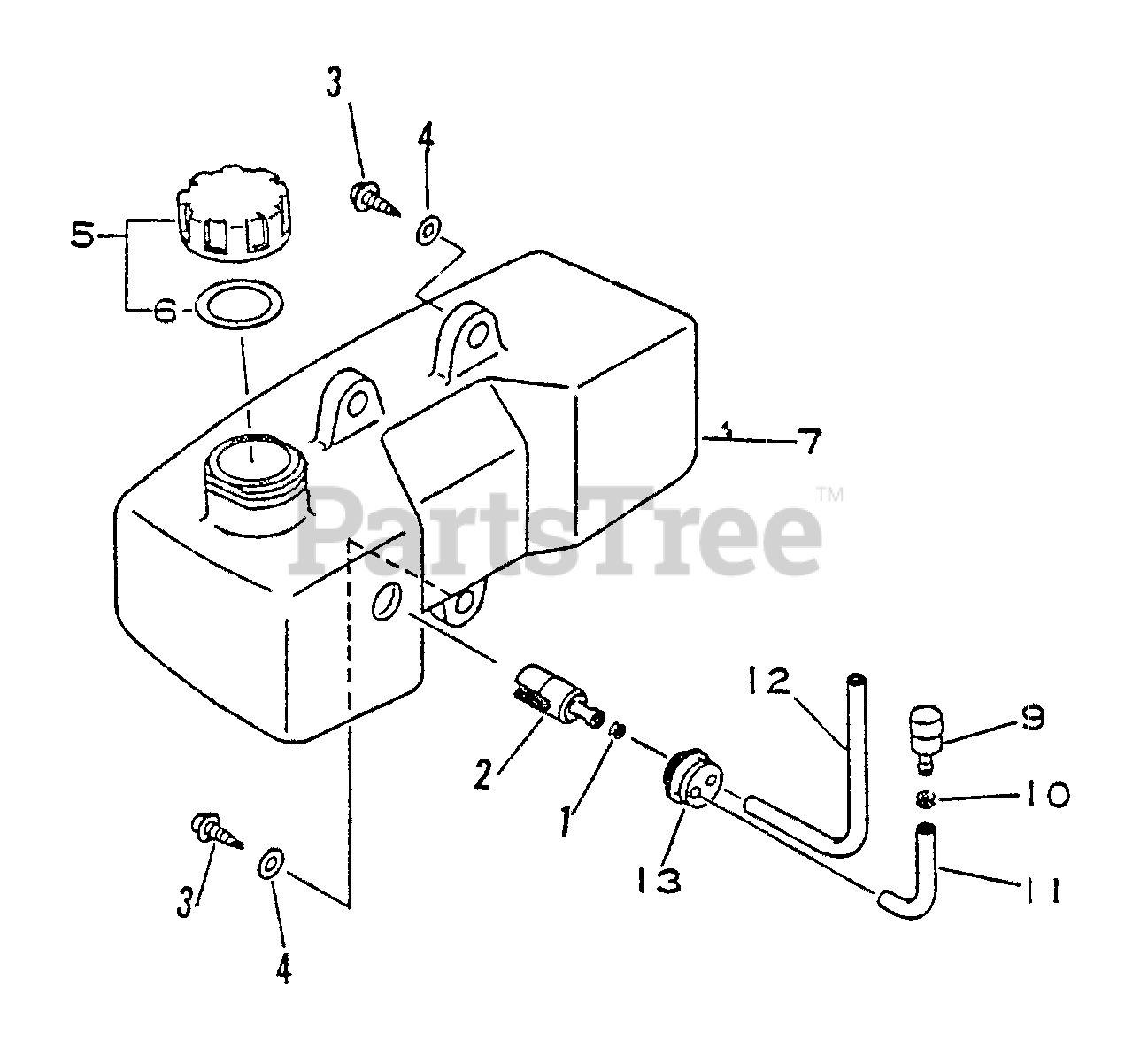

Fuel System Parts Diagram

  • Title

1

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

2

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

3

Echo 90025005014

SCREW - 5X14
(Superseded to Discontinued)

$

$

Not available

4

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 6

$8.49

$

In Stock, only 2 left!

0

6

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 8

0

7

Echo 13100511820

TANK, FUEL
(Superseded to 13100511821)

$24.99

$

In Stock, Qty 6

0

9

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$8.49

$

In Stock, Qty 13

0

10

Echo 13201302361

RETAINER, PIPE
(Superseded to 13011100530)

$0.99

$

In Stock, Qty 20+

0

11

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

12

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.49

$

In Stock, Qty 20+

0

13

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0
