SV-4A - Little Wonder Engine Fuel System Parts Diagram

Engine

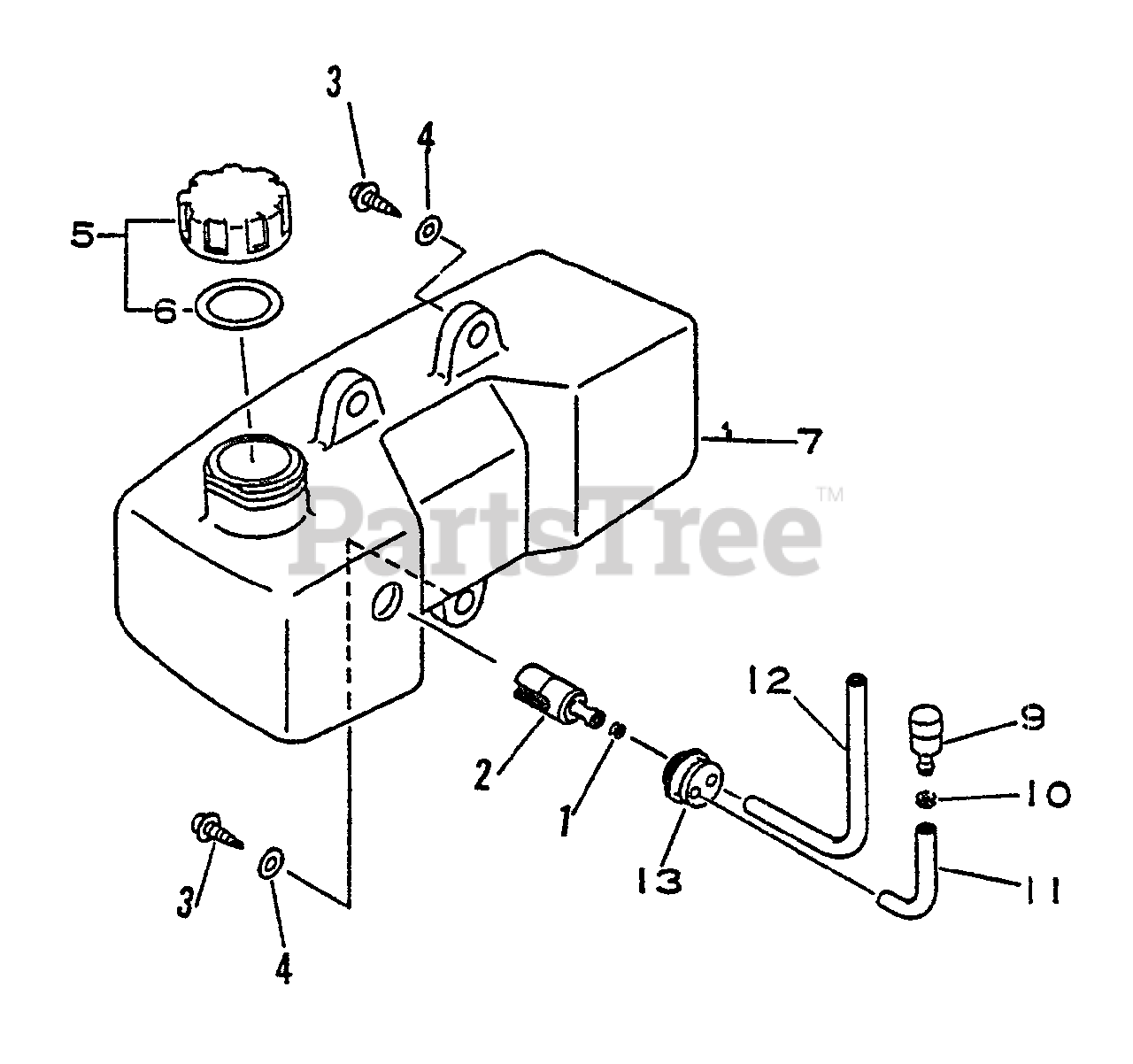

Fuel System Parts Diagram

  • Title

1

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 20+

0

2

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

3

Echo 90025005014

SCREW 5×14
(Superseded to Discontinued)

$

$

Not available

4

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 6

$

$

Not available

6

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

7

Echo 13100511820

TANK, FUEL
(Superseded to 13100511821)

$26.99

$

In Stock, Qty 8

0

9

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 20+

0

10

Echo 13201302361

RETAINER, PIPE
(Superseded to 13011100530)

$0.99

$

In Stock, Qty 20+

0

11

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

12

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 20+

0

13

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0
